STT818B

STT818B Overview

Product belongs to the 500V Transistors series. Digi-ReelR Alternate Packaging is the packaging method for this product Weight of 0.001270 oz SMD/SMT Mounting-Style SOT-23-6 Surface Mount mounting type Supplier device package: SOT-23-6 Configuration Single Transistor type: PNP Maximum current collector Ic is 3A . Maximum collector-emitter breakdown voltage of 30V DC current gain minimum (hFE) of Ic/Vce at 100 @ 500mA, 1V. Product Attribute: Vce-Saturation-Max-Ib-Ic: 500mV @ 20mA, 2A Power-off control: 1200 mW Maximum operating temperature of + 150 C Minimum operating temperature: - 65 C Rated VCEO up to - 30 V The transistor polarity is PNP. Saturation voltage between collector and emitter is - 0.21 V The - 30 V voltage rating is 40 V. - 5 V rating of 5 V Max DC collector current: 3 A This product is capable of handling a - 3 A continuous collector current. Minimum hfe for DC collector-base gain is 100.

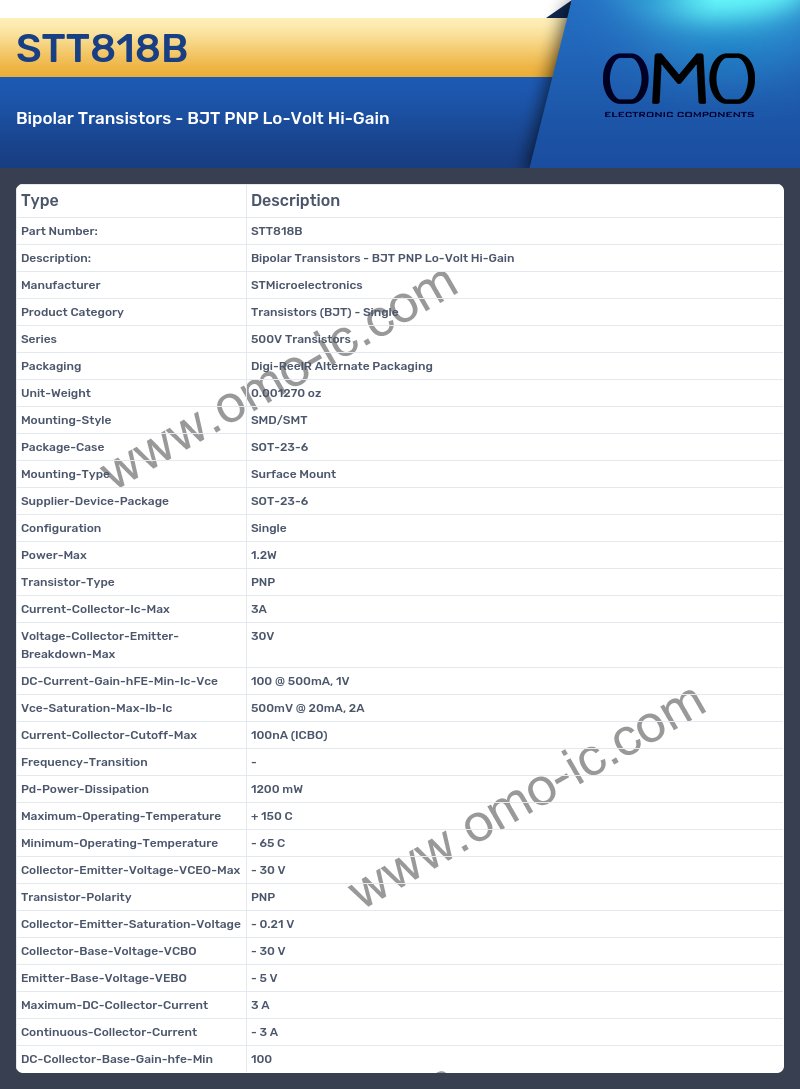

STT818B Image

STT818B Specifications

• Manufacturer STMicroelectronics
• Product Category Transistors (BJT) - Single
• Series 500V Transistors
• Packaging Digi-ReelR Alternate Packaging
• Unit-Weight 0.001270 oz
• Mounting-Style SMD/SMT
• Package-Case SOT-23-6
• Mounting-Type Surface Mount
• Supplier-Device-Package SOT-23-6
• Configuration Single
• Power-Max 1.2W
• Transistor-Type PNP
• Current-Collector-Ic-Max 3A
• Voltage-Collector-Emitter-Breakdown-Max 30V
• DC-Current-Gain-hFE-Min-Ic-Vce 100 @ 500mA, 1V
• Vce-Saturation-Max-Ib-Ic 500mV @ 20mA, 2A
• Current-Collector-Cutoff-Max 100nA (ICBO)
• Frequency-Transition -
• Pd-Power-Dissipation 1200 mW
• Maximum-Operating-Temperature + 150 C
• Minimum-Operating-Temperature - 65 C
• Collector-Emitter-Voltage-VCEO-Max - 30 V
• Transistor-Polarity PNP
• Collector-Emitter-Saturation-Voltage - 0.21 V
• Collector-Base-Voltage-VCBO - 30 V
• Emitter-Base-Voltage-VEBO - 5 V
• Maximum-DC-Collector-Current 3 A
• Continuous-Collector-Current - 3 A
• DC-Collector-Base-Gain-hfe-Min 100
