STT3PF20V

STT3PF20V Overview

Product belongs to the STripFET II series. Tape & Reel (TR) is the packaging method for this product Product Obsolete P-Channel FET Type MOSFET (Metal Oxide) is the technology used. Drain to Source Voltage (Vdss) is 20V Current - Continuous Drain (Id) at 25°C is given as 2.2A (Tc). This product's 2.7V, 4.5V is 1.8V, 4.5V. This product's 600mV @ 250A for optimal performance. The maximum 4.7nC @ 4.5V gate charge of this product ensures efficient switching performance. Vgs (Max): ±12V This product has a maximum 315pF @ 15V input capacitance at Vds for improved circuit performance. The maximum power dissipation is 1.6W (Tc). Rds On (Max) @ Id, Vgs is 200 mOhm @ 1A, 4.5V. Operating Temperature of -55°C ~ 150°C (TJ) This product has a Surface Mount. The supplier device package for this product is SOT-23-6. Package type is SOT-23-6

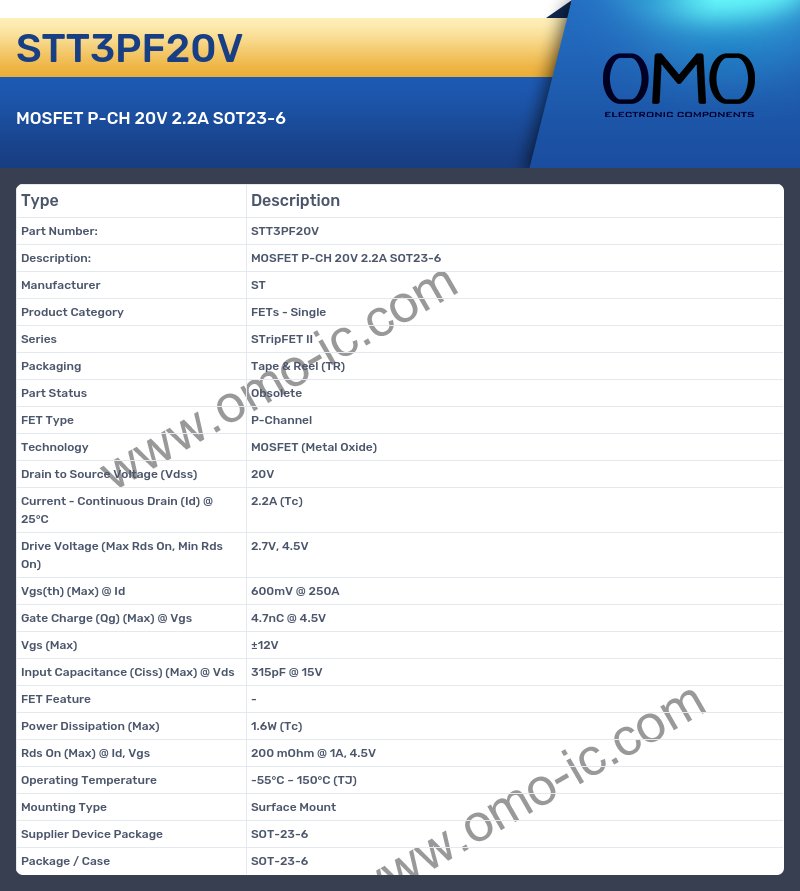

STT3PF20V Image

STT3PF20V Specifications

• Manufacturer ST
• Product Category FETs - Single
• Series STripFET II
• Packaging Tape & Reel (TR)
• Part Status Obsolete
• FET Type P-Channel
• Technology MOSFET (Metal Oxide)
• Drain to Source Voltage (Vdss) 20V
• Current - Continuous Drain (Id) @ 25°C 2.2A (Tc)
• Drive Voltage (Max Rds On, Min Rds On) 2.7V, 4.5V
• Vgs(th) (Max) @ Id 600mV @ 250A
• Gate Charge (Qg) (Max) @ Vgs 4.7nC @ 4.5V
• Vgs (Max) ±12V
• Input Capacitance (Ciss) (Max) @ Vds 315pF @ 15V
• FET Feature -
• Power Dissipation (Max) 1.6W (Tc)
• Rds On (Max) @ Id, Vgs 200 mOhm @ 1A, 4.5V
• Operating Temperature -55°C ~ 150°C (TJ)
• Mounting Type Surface Mount
• Supplier Device Package SOT-23-6
• Package / Case SOT-23-6
