STPSC806D

STPSC806D Overview

Product belongs to the STPSC806 series. This product is categorized as Schottky Silicon Carbide Diodes Tube is the packaging method for this product Weight of 0.211644 oz Through Hole Mounting-Style TO-220-2 SiC is the technology used. Through Hole mounting type Supplier device package: TO-220AC Configuration Single Operating frequency: No Recovery Time > 500mA (Io) Silicon Carbide Schottky diode type The 100μA @ 600V Current-Reverse-Leakage-Vr 1. Vf Max 1.7V @ 8A is the Voltage-Forward; Maximum DC reverse voltage 600V The 8A Current-Average-Rectified-Io; The capacitance value of this product is 450pF @ 0V, 1MHz for maximum efficiency. Operating-Temperature-Junction: -40°C ~ 175°C Maximum operating temperature of + 175 C Minimum operating temperature: - 40 C Vf-Forward-Voltage: 1.7 V Ir-Reverse-Current is 0.1 mA. If-Forward-Current is 8 A. VRRM (600 V) Reverse Voltage 30 A IFSM Forward Surge Current

STPSC806D Image

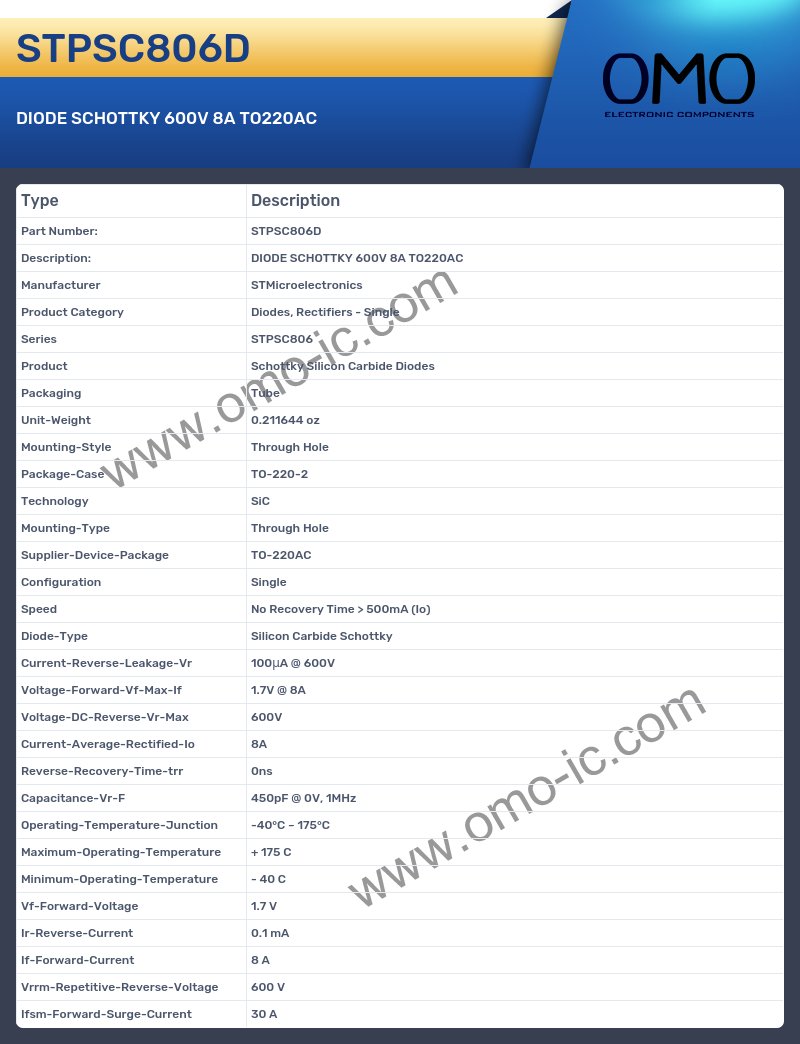

STPSC806D Specifications

• Manufacturer STMicroelectronics
• Product Category Diodes, Rectifiers - Single
• Series STPSC806
• Product Schottky Silicon Carbide Diodes
• Packaging Tube
• Unit-Weight 0.211644 oz
• Mounting-Style Through Hole
• Package-Case TO-220-2
• Technology SiC
• Mounting-Type Through Hole
• Supplier-Device-Package TO-220AC
• Configuration Single
• Speed No Recovery Time > 500mA (Io)
• Diode-Type Silicon Carbide Schottky
• Current-Reverse-Leakage-Vr 100μA @ 600V
• Voltage-Forward-Vf-Max-If 1.7V @ 8A
• Voltage-DC-Reverse-Vr-Max 600V
• Current-Average-Rectified-Io 8A
• Reverse-Recovery-Time-trr 0ns
• Capacitance-Vr-F 450pF @ 0V, 1MHz
• Operating-Temperature-Junction -40°C ~ 175°C
• Maximum-Operating-Temperature + 175 C
• Minimum-Operating-Temperature - 40 C
• Vf-Forward-Voltage 1.7 V
• Ir-Reverse-Current 0.1 mA
• If-Forward-Current 8 A
• Vrrm-Repetitive-Reverse-Voltage 600 V
• Ifsm-Forward-Surge-Current 30 A
