STPS3H100U

STPS3H100U Overview

Product belongs to the STPS3H100 series. This product is categorized as Schottky Rectifiers Digi-ReelR Alternate Packaging is the packaging method for this product Weight of 0.006349 oz SMD/SMT Mounting-Style DO-214AA, SMB Si is the technology used. Surface Mount mounting type Supplier device package: SMB Operating frequency: Fast Recovery = 200mA (Io) Schottky diode type The 1μA @ 100V Current-Reverse-Leakage-Vr 1. Vf Max 840mV @ 3A is the Voltage-Forward; Maximum DC reverse voltage 100V The 3A Current-Average-Rectified-Io; The capacitance value of this product is - for maximum efficiency. Operating-Temperature-Junction: 175°C (Max) Vf-Forward-Voltage: 0.68 V Ir-Reverse-Current is 1 mA. If-Forward-Current is 3 A. VRRM (100 V) Reverse Voltage 75 A IFSM Forward Surge Current

STPS3H100U Image

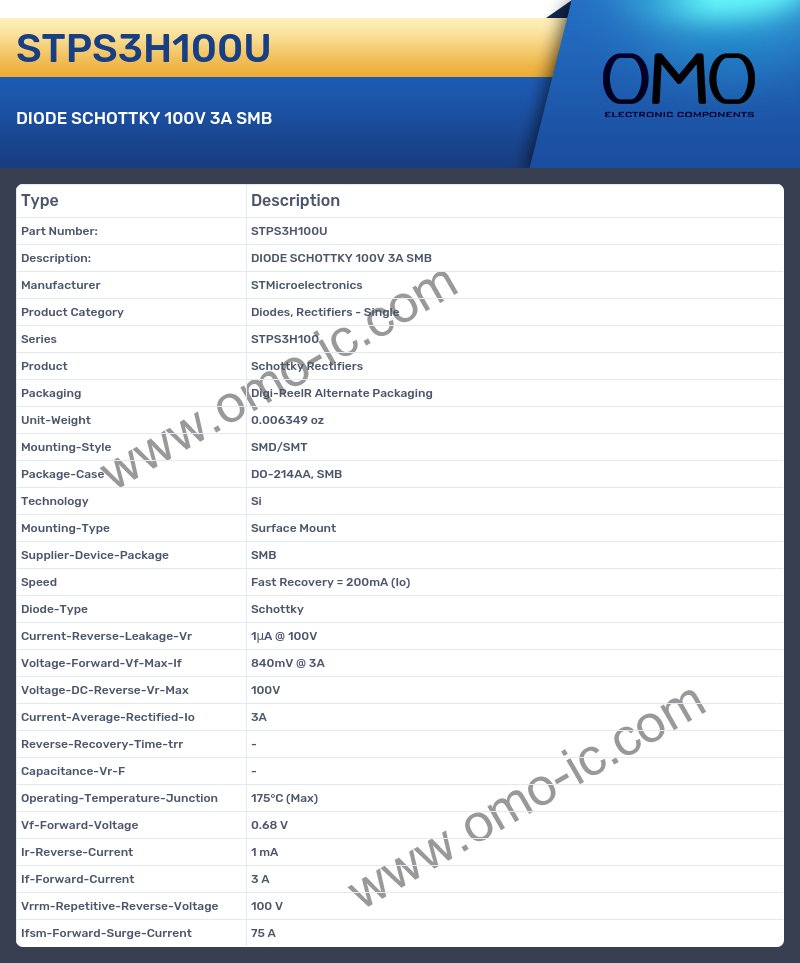

STPS3H100U Specifications

• Manufacturer STMicroelectronics
• Product Category Diodes, Rectifiers - Single
• Series STPS3H100
• Product Schottky Rectifiers
• Packaging Digi-ReelR Alternate Packaging
• Unit-Weight 0.006349 oz
• Mounting-Style SMD/SMT
• Package-Case DO-214AA, SMB
• Technology Si
• Mounting-Type Surface Mount
• Supplier-Device-Package SMB
• Speed Fast Recovery = 200mA (Io)
• Diode-Type Schottky
• Current-Reverse-Leakage-Vr 1μA @ 100V
• Voltage-Forward-Vf-Max-If 840mV @ 3A
• Voltage-DC-Reverse-Vr-Max 100V
• Current-Average-Rectified-Io 3A
• Reverse-Recovery-Time-trr -
• Capacitance-Vr-F -
• Operating-Temperature-Junction 175°C (Max)
• Vf-Forward-Voltage 0.68 V
• Ir-Reverse-Current 1 mA
• If-Forward-Current 3 A
• Vrrm-Repetitive-Reverse-Voltage 100 V
• Ifsm-Forward-Surge-Current 75 A
