STPS30M60SG-TR Overview

Product belongs to the STPS30M60S series. This product is categorized as Schottky Rectifiers Digi-ReelR Alternate Packaging is the packaging method for this product Weight of 0.070548 oz SMD/SMT Mounting-Style TO-263-3, D2Pak (2 Leads + Tab), TO-263AB Si is the technology used. Surface Mount mounting type Supplier device package: D2PAK Configuration Single Operating frequency: Fast Recovery = 200mA (Io) Schottky diode type The 165μA @ 60V Current-Reverse-Leakage-Vr 1. Vf Max 590mV @ 30A is the Voltage-Forward; Maximum DC reverse voltage 60V The 30A Current-Average-Rectified-Io; The capacitance value of this product is - for maximum efficiency. Operating-Temperature-Junction: 150°C (Max) Vf-Forward-Voltage: 0.515 V Ir-Reverse-Current is 165 uA. If-Forward-Current is 90 A. VRRM (60 V) Reverse Voltage 600 A IFSM Forward Surge Current

STPS30M60SG-TR Image

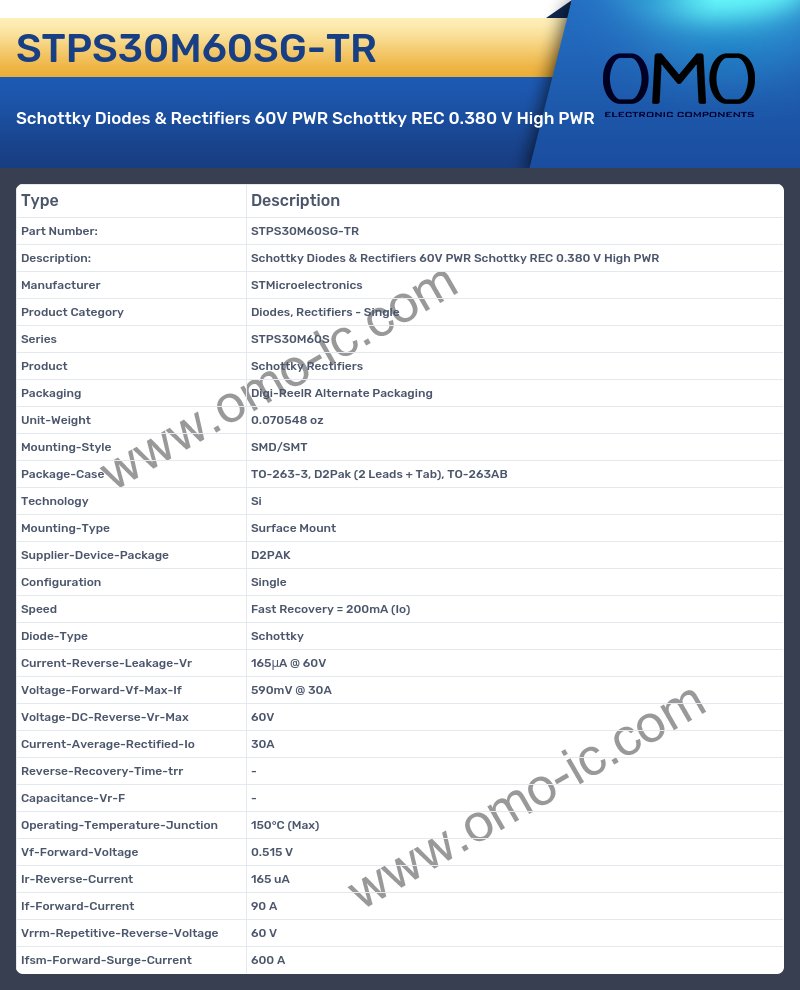

STPS30M60SG-TR Specifications

• Manufacturer STMicroelectronics
• Product Category Diodes, Rectifiers - Single
• Series STPS30M60S
• Product Schottky Rectifiers
• Packaging Digi-ReelR Alternate Packaging
• Unit-Weight 0.070548 oz
• Mounting-Style SMD/SMT
• Package-Case TO-263-3, D2Pak (2 Leads + Tab), TO-263AB
• Technology Si
• Mounting-Type Surface Mount
• Supplier-Device-Package D2PAK
• Configuration Single
• Speed Fast Recovery = 200mA (Io)
• Diode-Type Schottky
• Current-Reverse-Leakage-Vr 165μA @ 60V
• Voltage-Forward-Vf-Max-If 590mV @ 30A
• Voltage-DC-Reverse-Vr-Max 60V
• Current-Average-Rectified-Io 30A
• Reverse-Recovery-Time-trr -
• Capacitance-Vr-F -
• Operating-Temperature-Junction 150°C (Max)
• Vf-Forward-Voltage 0.515 V
• Ir-Reverse-Current 165 uA
• If-Forward-Current 90 A
• Vrrm-Repetitive-Reverse-Voltage 60 V
• Ifsm-Forward-Surge-Current 600 A
