STPS2H100U

STPS2H100U Overview

Product belongs to the STPS2H100 series. This product is categorized as Schottky Rectifiers Digi-ReelR Alternate Packaging is the packaging method for this product Weight of 0.006349 oz SMD/SMT Mounting-Style DO-214AA, SMB Si is the technology used. Surface Mount mounting type Supplier device package: SMB Configuration Single Operating frequency: Fast Recovery = 200mA (Io) Schottky diode type The 1μA @ 100V Current-Reverse-Leakage-Vr 1. Vf Max 790mV @ 2A is the Voltage-Forward; Maximum DC reverse voltage 100V The 2A Current-Average-Rectified-Io; The capacitance value of this product is - for maximum efficiency. Operating-Temperature-Junction: 175°C (Max) Maximum operating temperature of + 175 C Minimum operating temperature: - 65 C Vf-Forward-Voltage: 0.88 V at 4 A Ir-Reverse-Current is 1 uA. If-Forward-Current is 2 A. VRRM (100 V) Reverse Voltage 75 A IFSM Forward Surge Current

STPS2H100U Image

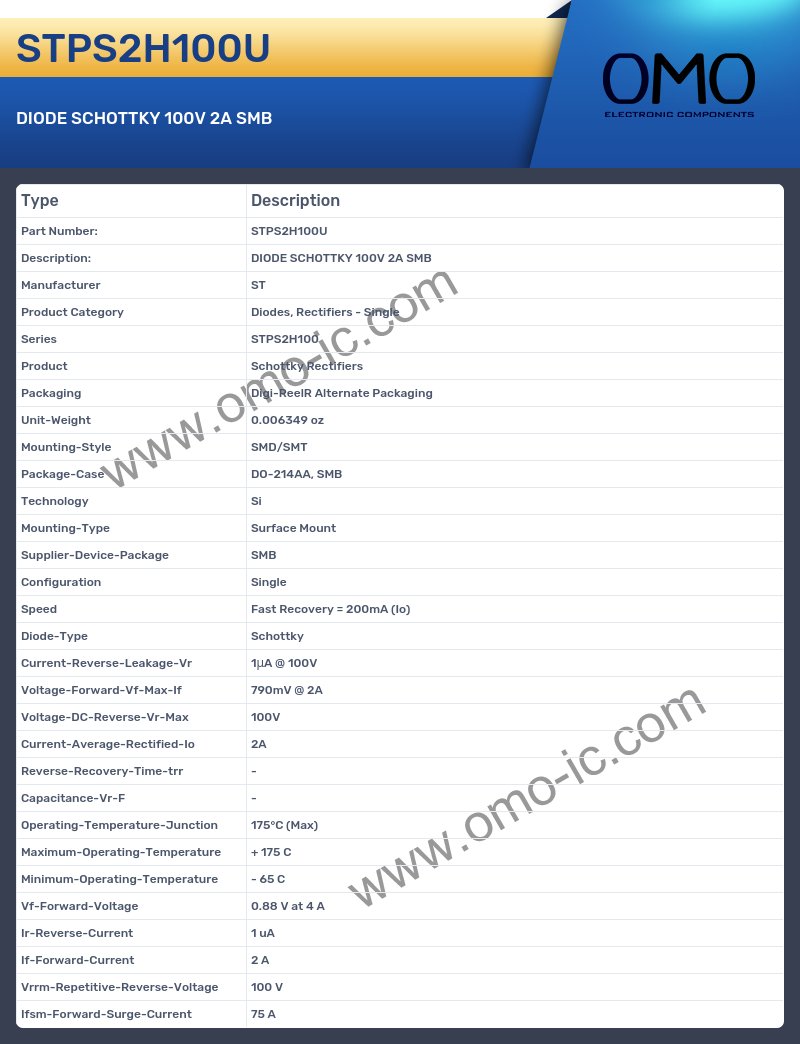

STPS2H100U Specifications

• Manufacturer ST
• Product Category Diodes, Rectifiers - Single
• Series STPS2H100
• Product Schottky Rectifiers
• Packaging Digi-ReelR Alternate Packaging
• Unit-Weight 0.006349 oz
• Mounting-Style SMD/SMT
• Package-Case DO-214AA, SMB
• Technology Si
• Mounting-Type Surface Mount
• Supplier-Device-Package SMB
• Configuration Single
• Speed Fast Recovery = 200mA (Io)
• Diode-Type Schottky
• Current-Reverse-Leakage-Vr 1μA @ 100V
• Voltage-Forward-Vf-Max-If 790mV @ 2A
• Voltage-DC-Reverse-Vr-Max 100V
• Current-Average-Rectified-Io 2A
• Reverse-Recovery-Time-trr -
• Capacitance-Vr-F -
• Operating-Temperature-Junction 175°C (Max)
• Maximum-Operating-Temperature + 175 C
• Minimum-Operating-Temperature - 65 C
• Vf-Forward-Voltage 0.88 V at 4 A
• Ir-Reverse-Current 1 uA
• If-Forward-Current 2 A
• Vrrm-Repetitive-Reverse-Voltage 100 V
• Ifsm-Forward-Surge-Current 75 A
