STPS15L25D

STPS15L25D Overview

Product belongs to the STPS15L25 series. This product is categorized as Schottky Rectifiers Tube is the packaging method for this product Weight of 0.211644 oz Through Hole Mounting-Style TO-220-2 Si is the technology used. Through Hole mounting type Supplier device package: TO-220AC Configuration Single Operating frequency: Fast Recovery = 200mA (Io) Schottky diode type The 1.3mA @ 25V Current-Reverse-Leakage-Vr 1. Vf Max 460mV @ 15A is the Voltage-Forward; Maximum DC reverse voltage 25V The 15A Current-Average-Rectified-Io; The capacitance value of this product is - for maximum efficiency. Operating-Temperature-Junction: 150°C (Max) Maximum operating temperature of + 150 C Minimum operating temperature: - 65 C Vf-Forward-Voltage: 0.56 V at 30 A Ir-Reverse-Current is 1300 uA. If-Forward-Current is 15 A. VRRM (25 V) Reverse Voltage 250 A IFSM Forward Surge Current

STPS15L25D Image

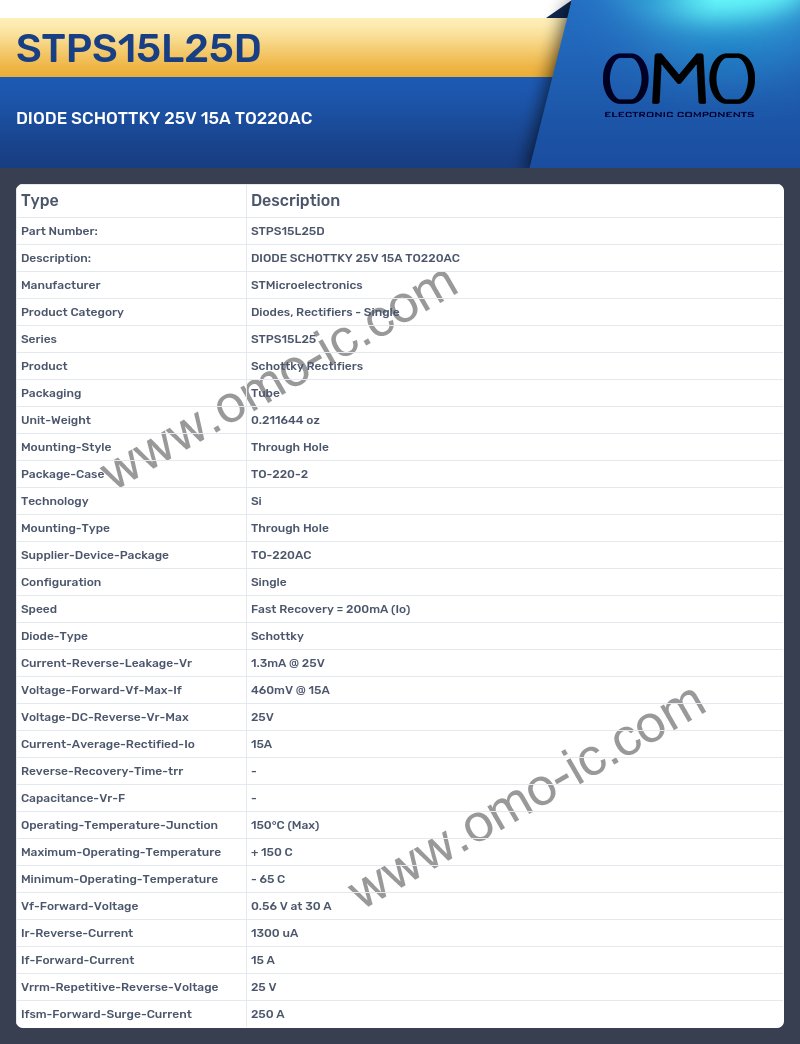

STPS15L25D Specifications

• Manufacturer STMicroelectronics
• Product Category Diodes, Rectifiers - Single
• Series STPS15L25
• Product Schottky Rectifiers
• Packaging Tube
• Unit-Weight 0.211644 oz
• Mounting-Style Through Hole
• Package-Case TO-220-2
• Technology Si
• Mounting-Type Through Hole
• Supplier-Device-Package TO-220AC
• Configuration Single
• Speed Fast Recovery = 200mA (Io)
• Diode-Type Schottky
• Current-Reverse-Leakage-Vr 1.3mA @ 25V
• Voltage-Forward-Vf-Max-If 460mV @ 15A
• Voltage-DC-Reverse-Vr-Max 25V
• Current-Average-Rectified-Io 15A
• Reverse-Recovery-Time-trr -
• Capacitance-Vr-F -
• Operating-Temperature-Junction 150°C (Max)
• Maximum-Operating-Temperature + 150 C
• Minimum-Operating-Temperature - 65 C
• Vf-Forward-Voltage 0.56 V at 30 A
• Ir-Reverse-Current 1300 uA
• If-Forward-Current 15 A
• Vrrm-Repetitive-Reverse-Voltage 25 V
• Ifsm-Forward-Surge-Current 250 A
