STPS1045D

STPS1045D Overview

Product belongs to the STPS1045 series. This product is categorized as Schottky Rectifiers Tube is the packaging method for this product Weight of 0.211644 oz Through Hole Mounting-Style TO-220-2 Si is the technology used. Through Hole mounting type Supplier device package: TO-220AC Configuration Single Operating frequency: Fast Recovery = 200mA (Io) Schottky diode type The 100μA @ 45V Current-Reverse-Leakage-Vr 1. Vf Max 600mV @ 10A is the Voltage-Forward; Maximum DC reverse voltage 45V The 10A Current-Average-Rectified-Io; The capacitance value of this product is - for maximum efficiency. Operating-Temperature-Junction: 175°C (Max) Maximum operating temperature of + 175 C Minimum operating temperature: - 65 C Vf-Forward-Voltage: 0.84 V at 20 A Ir-Reverse-Current is 100 uA. If-Forward-Current is 10 A. VRRM (45 V) Reverse Voltage 180 A IFSM Forward Surge Current

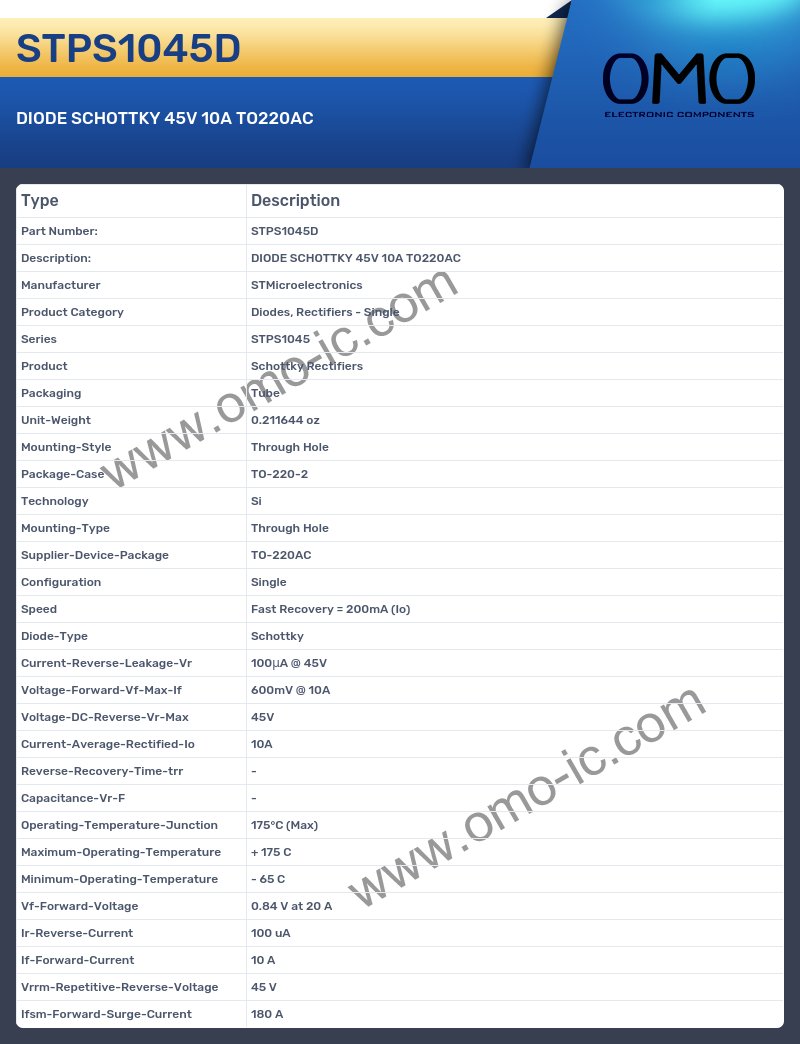

STPS1045D Image

STPS1045D Specifications

• Manufacturer STMicroelectronics
• Product Category Diodes, Rectifiers - Single
• Series STPS1045
• Product Schottky Rectifiers
• Packaging Tube
• Unit-Weight 0.211644 oz
• Mounting-Style Through Hole
• Package-Case TO-220-2
• Technology Si
• Mounting-Type Through Hole
• Supplier-Device-Package TO-220AC
• Configuration Single
• Speed Fast Recovery = 200mA (Io)
• Diode-Type Schottky
• Current-Reverse-Leakage-Vr 100μA @ 45V
• Voltage-Forward-Vf-Max-If 600mV @ 10A
• Voltage-DC-Reverse-Vr-Max 45V
• Current-Average-Rectified-Io 10A
• Reverse-Recovery-Time-trr -
• Capacitance-Vr-F -
• Operating-Temperature-Junction 175°C (Max)
• Maximum-Operating-Temperature + 175 C
• Minimum-Operating-Temperature - 65 C
• Vf-Forward-Voltage 0.84 V at 20 A
• Ir-Reverse-Current 100 uA
• If-Forward-Current 10 A
• Vrrm-Repetitive-Reverse-Voltage 45 V
• Ifsm-Forward-Surge-Current 180 A
