STP90N55F4

STP90N55F4 Overview

Product belongs to the N-channel STripFET series. Tube is the packaging method for this product Weight of 0.011640 oz Through Hole Mounting-Style TO-220-3 Si is the technology used. Number of channels: 1 Channel Configuration Single Transistor type: 1 N-Channel Power-off control: 150 W This product has a 30 ns of 16 ns. This product has a 60 ns of 16 ns. This product's 20 V. The ID of continuous drain current is 90 A. This product has a Vds-Drain-Source-Breakdown-Voltageof 55 V. This product has a 4 V Vgs-th gate-source threshold voltage for efficient power management. The 6.4 mOhms for this product is 12 Ohms. The transistor polarity is N-Channel. 'Typical-Turn-Off-Delay-Time' of 55 ns This product has a 20 ns. Qg-Gate-Charge is 90 nC.

STP90N55F4 Image

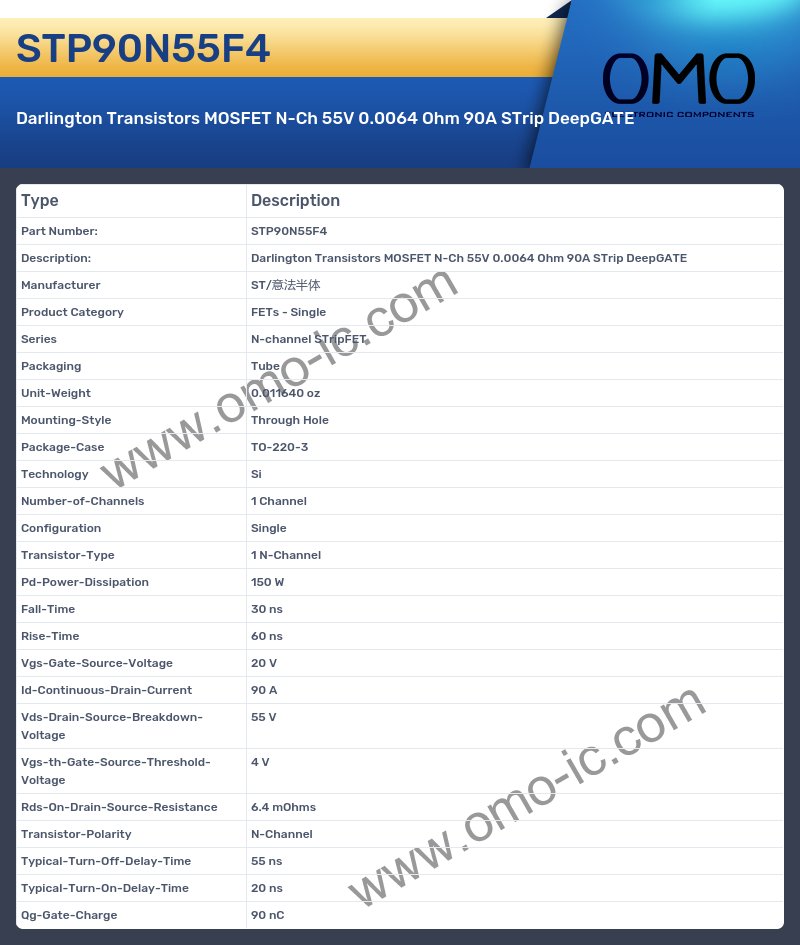

STP90N55F4 Specifications

• Manufacturer ST/意法半体
• Product Category FETs - Single
• Series N-channel STripFET
• Packaging Tube
• Unit-Weight 0.011640 oz
• Mounting-Style Through Hole
• Package-Case TO-220-3
• Technology Si
• Number-of-Channels 1 Channel
• Configuration Single
• Transistor-Type 1 N-Channel
• Pd-Power-Dissipation 150 W
• Fall-Time 30 ns
• Rise-Time 60 ns
• Vgs-Gate-Source-Voltage 20 V
• Id-Continuous-Drain-Current 90 A
• Vds-Drain-Source-Breakdown-Voltage 55 V
• Vgs-th-Gate-Source-Threshold-Voltage 4 V
• Rds-On-Drain-Source-Resistance 6.4 mOhms
• Transistor-Polarity N-Channel
• Typical-Turn-Off-Delay-Time 55 ns
• Typical-Turn-On-Delay-Time 20 ns
• Qg-Gate-Charge 90 nC
