| Mfr. #: | STP30NF10 |
|---|---|
| निर्माता: | STMicroelectronics |
| विवरण: | MOSFET N-CH 100V 35A TO-220 |
| जीवन चक्र: | यस निर्माताबाट नयाँ। |
| डाटा पाना: | STP30NF10 डाटा पाना |
Product belongs to the STripFET II series. Tube is the packaging method for this product Weight of 0.050717 oz Through Hole Mounting-Style TO-220-3 Si is the technology used. Operational temperature range: -55°C ~ 175°C (TJ) Through Hole mounting type Number of channels: 1 Channel Supplier device package: TO-220AB Configuration Single This product uses an MOSFET N-Channel, Metal Oxide FET-Type transistor. Transistor type: 1 N-Channel 100V This product has an 1180pF @ 25V value of 300pF @ 25V. This product's Standard. 35A (Tc) continuous drain-ID current at 25°C; This product has an 45 mOhm @ 15A, 10V of 12 Ohm @ 150mA, 0V. Power-off control: 115 W Maximum operating temperature of + 175 C Minimum operating temperature: - 55 C This product has a 10 ns of 16 ns. This product has a 40 ns of 16 ns. This product's 20 V. The ID of continuous drain current is 35 A. This product has a Vds-Drain-Source-Breakdown-Voltageof 100 V. The 38 mOhms for this product is 12 Ohms. The transistor polarity is N-Channel. 'Typical-Turn-Off-Delay-Time' of 45 ns This product has a 15 ns. This product features a 10 S of 500 S for high performance. This product operates in Enhancement channel mode for optimal performance.
Image shown is a representation only. Exact specifications should be obtained from the product data sheet.

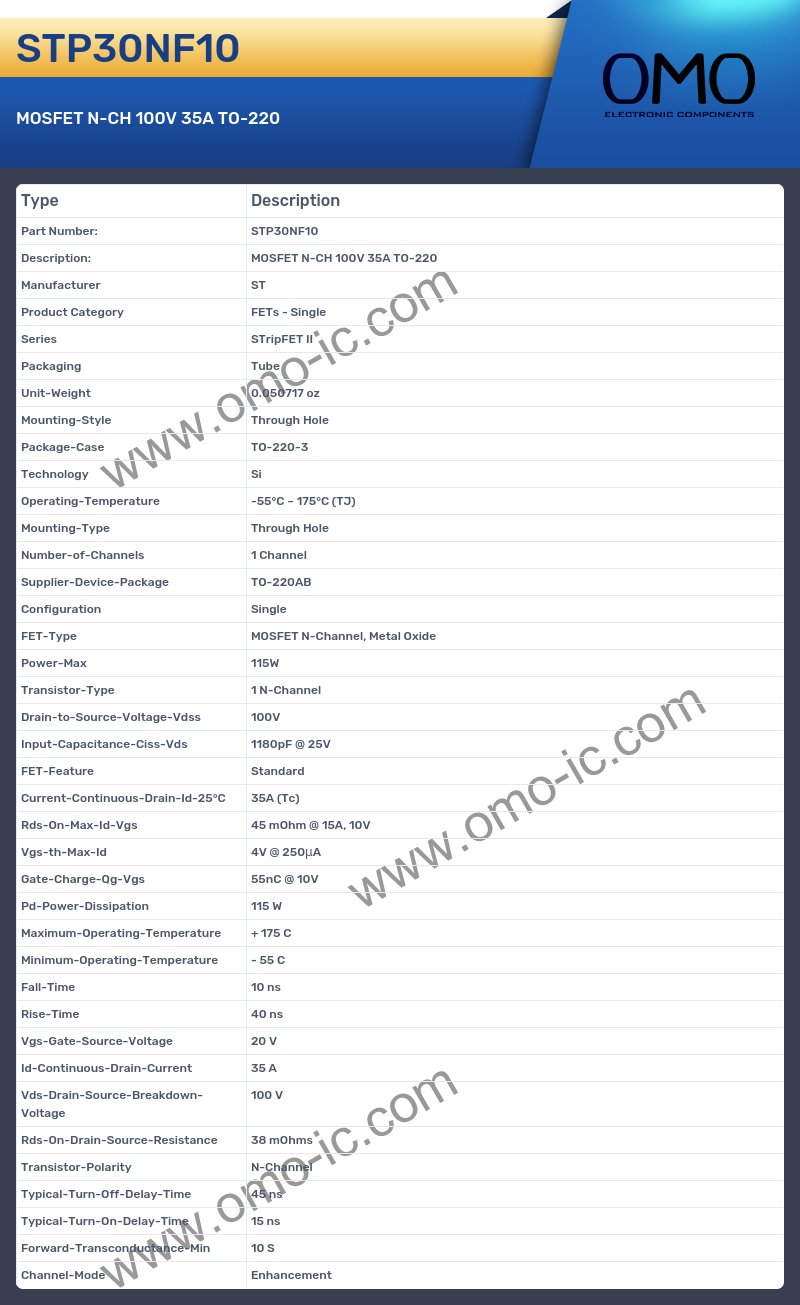

STP30NF10 Specifications
