STP20NM60

STP20NM60 Overview

Product belongs to the MDmesh series. Tube is the packaging method for this product Weight of 0.050717 oz Through Hole Mounting-Style TO-220-3 Si is the technology used. Operational temperature range: 150°C (TJ) Through Hole mounting type Number of channels: 1 Channel Supplier device package: TO-220AB Configuration Single This product uses an MOSFET N-Channel, Metal Oxide FET-Type transistor. Transistor type: 1 N-Channel 600V This product has an 1500pF @ 25V value of 300pF @ 25V. This product's Standard. 20A (Tc) continuous drain-ID current at 25°C; This product has an 290 mOhm @ 10A, 10V of 12 Ohm @ 150mA, 0V. Power-off control: 192 W Maximum operating temperature of + 150 C Minimum operating temperature: - 65 C This product has a 11 ns of 16 ns. This product has a 20 ns of 16 ns. This product's 30 V. The ID of continuous drain current is 20 A. This product has a Vds-Drain-Source-Breakdown-Voltageof 600 V. The 290 mOhms for this product is 12 Ohms. The transistor polarity is N-Channel. 'Typical-Turn-Off-Delay-Time' of 42 ns This product has a 25 ns. This product operates in Enhancement channel mode for optimal performance.

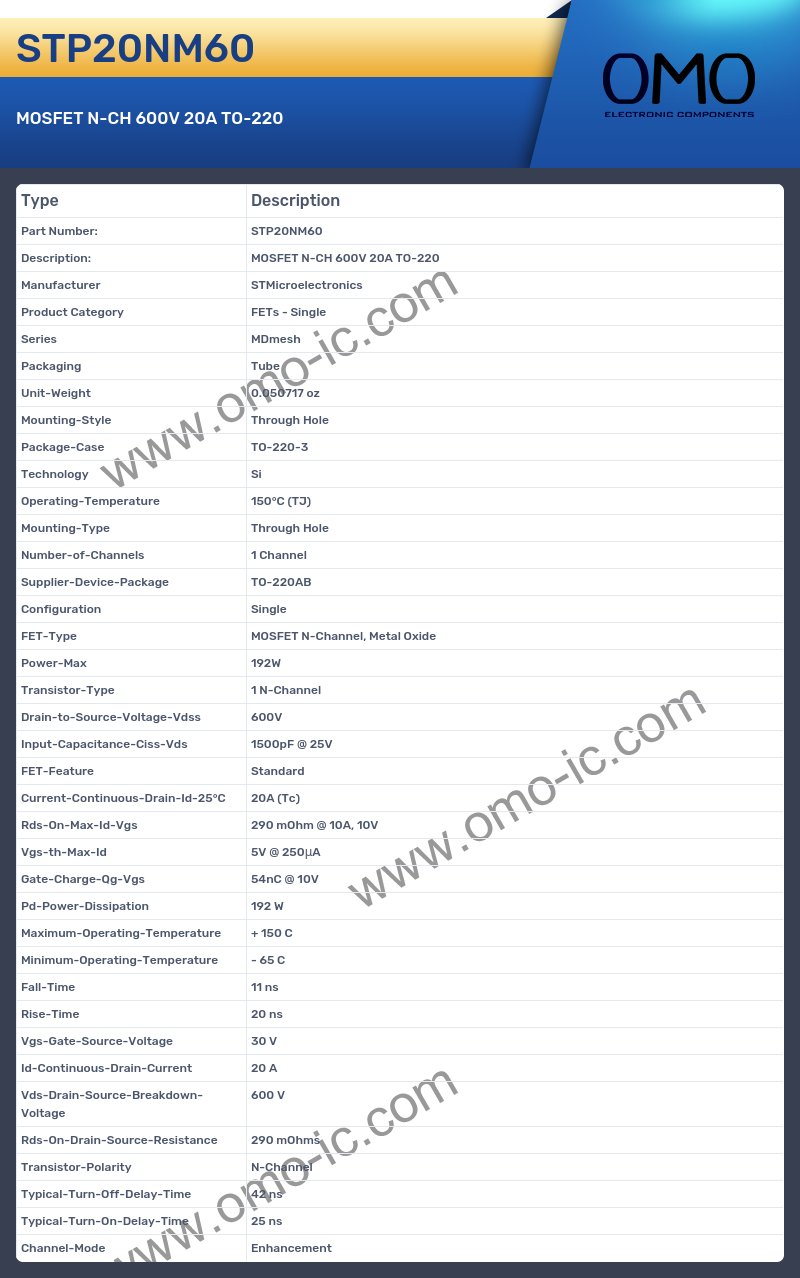

STP20NM60 Image

STP20NM60 Specifications

• Manufacturer STMicroelectronics
• Product Category FETs - Single
• Series MDmesh
• Packaging Tube
• Unit-Weight 0.050717 oz
• Mounting-Style Through Hole
• Package-Case TO-220-3
• Technology Si
• Operating-Temperature 150°C (TJ)
• Mounting-Type Through Hole
• Number-of-Channels 1 Channel
• Supplier-Device-Package TO-220AB
• Configuration Single
• FET-Type MOSFET N-Channel, Metal Oxide
• Power-Max 192W
• Transistor-Type 1 N-Channel
• Drain-to-Source-Voltage-Vdss 600V
• Input-Capacitance-Ciss-Vds 1500pF @ 25V
• FET-Feature Standard
• Current-Continuous-Drain-Id-25°C 20A (Tc)
• Rds-On-Max-Id-Vgs 290 mOhm @ 10A, 10V
• Vgs-th-Max-Id 5V @ 250μA
• Gate-Charge-Qg-Vgs 54nC @ 10V
• Pd-Power-Dissipation 192 W
• Maximum-Operating-Temperature + 150 C
• Minimum-Operating-Temperature - 65 C
• Fall-Time 11 ns
• Rise-Time 20 ns
• Vgs-Gate-Source-Voltage 30 V
• Id-Continuous-Drain-Current 20 A
• Vds-Drain-Source-Breakdown-Voltage 600 V
• Rds-On-Drain-Source-Resistance 290 mOhms
• Transistor-Polarity N-Channel
• Typical-Turn-Off-Delay-Time 42 ns
• Typical-Turn-On-Delay-Time 25 ns
• Channel-Mode Enhancement
