STP10NM60N

STP10NM60N Overview

Product belongs to the N-channel MDmesh series. Tube is the packaging method for this product Weight of 0.011640 oz Through Hole Mounting-Style TO-220-3 Si is the technology used. Number of channels: 1 Channel Configuration Single Transistor type: 1 N-Channel Power-off control: 70 W Maximum operating temperature of + 150 C Minimum operating temperature: - 55 C This product has a 15 ns of 16 ns. This product has a 12 ns of 16 ns. This product's +/- 25 V. The ID of continuous drain current is 10 A. This product has a Vds-Drain-Source-Breakdown-Voltageof 600 V. The 550 mOhms for this product is 12 Ohms. The transistor polarity is N-Channel. 'Typical-Turn-Off-Delay-Time' of 32 ns This product has a 10 ns. Qg-Gate-Charge is 19 nC.

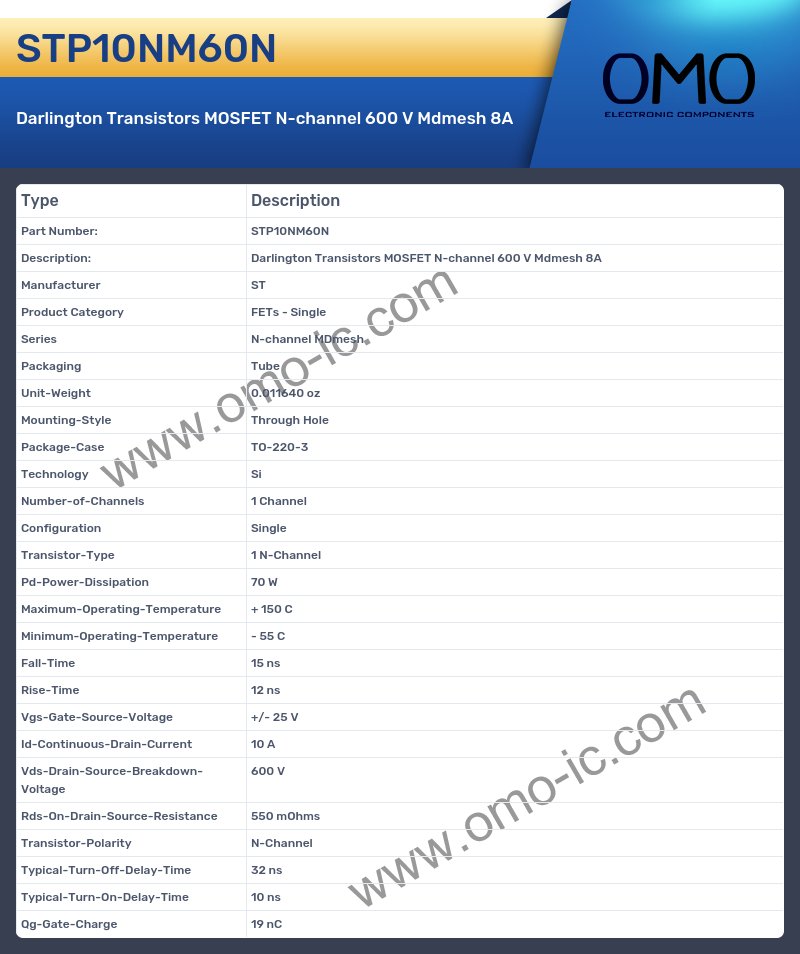

STP10NM60N Image

STP10NM60N Specifications

• Manufacturer ST
• Product Category FETs - Single
• Series N-channel MDmesh
• Packaging Tube
• Unit-Weight 0.011640 oz
• Mounting-Style Through Hole
• Package-Case TO-220-3
• Technology Si
• Number-of-Channels 1 Channel
• Configuration Single
• Transistor-Type 1 N-Channel
• Pd-Power-Dissipation 70 W
• Maximum-Operating-Temperature + 150 C
• Minimum-Operating-Temperature - 55 C
• Fall-Time 15 ns
• Rise-Time 12 ns
• Vgs-Gate-Source-Voltage +/- 25 V
• Id-Continuous-Drain-Current 10 A
• Vds-Drain-Source-Breakdown-Voltage 600 V
• Rds-On-Drain-Source-Resistance 550 mOhms
• Transistor-Polarity N-Channel
• Typical-Turn-Off-Delay-Time 32 ns
• Typical-Turn-On-Delay-Time 10 ns
• Qg-Gate-Charge 19 nC
