STM8S003F3P6TR

STM8S003F3P6TR Overview

Product belongs to the STM8S series. Tape & Reel (TR) is the packaging method for this product Weight of 0.006737 oz SMD/SMT Mounting-Style TSSOP-20 Operational temperature range: -40°C ~ 85°C (TA) Supplier device package: 20-TSSOP This product has 16 I/O ports for versatile connectivity. Operating frequency: 16MHz Program memory type: FLASH I2C, IrDA, LIN, SPI, UART/USART interface Supply Voltage: 2.95 V ~ 5.5 V 8-Bit architecture Internal oscillator type Maximum operating temperature of + 85 C Minimum operating temperature: - 40 C This product operates at a 2.95 V to 5.5 V supply voltage for reliable performance. I2C SPI UART interface type Processor Core: STM8 This product is powered by the STM8S Processor-Series, providing high performance and efficiency. The 8 bit. Maximum supply voltage of 5.5 V Minimum supply voltage is 2.95 V Maximum clock frequency of 16 MHz Number of ADC Channels: 5 This product has a 1 kB data RAM size, providing ample storage for complex applications. The product has a 128 B data-ROM size. This product features 3 Timer number of timers and counters. This product features a high-precision 10 bit, ensuring accurate data conversion. This product utilizes RAM, providing fast and efficient data storage. The EEPROM Data-ROM-Type ensures non-volatile memory storage.

STM8S003F3P6TR Image

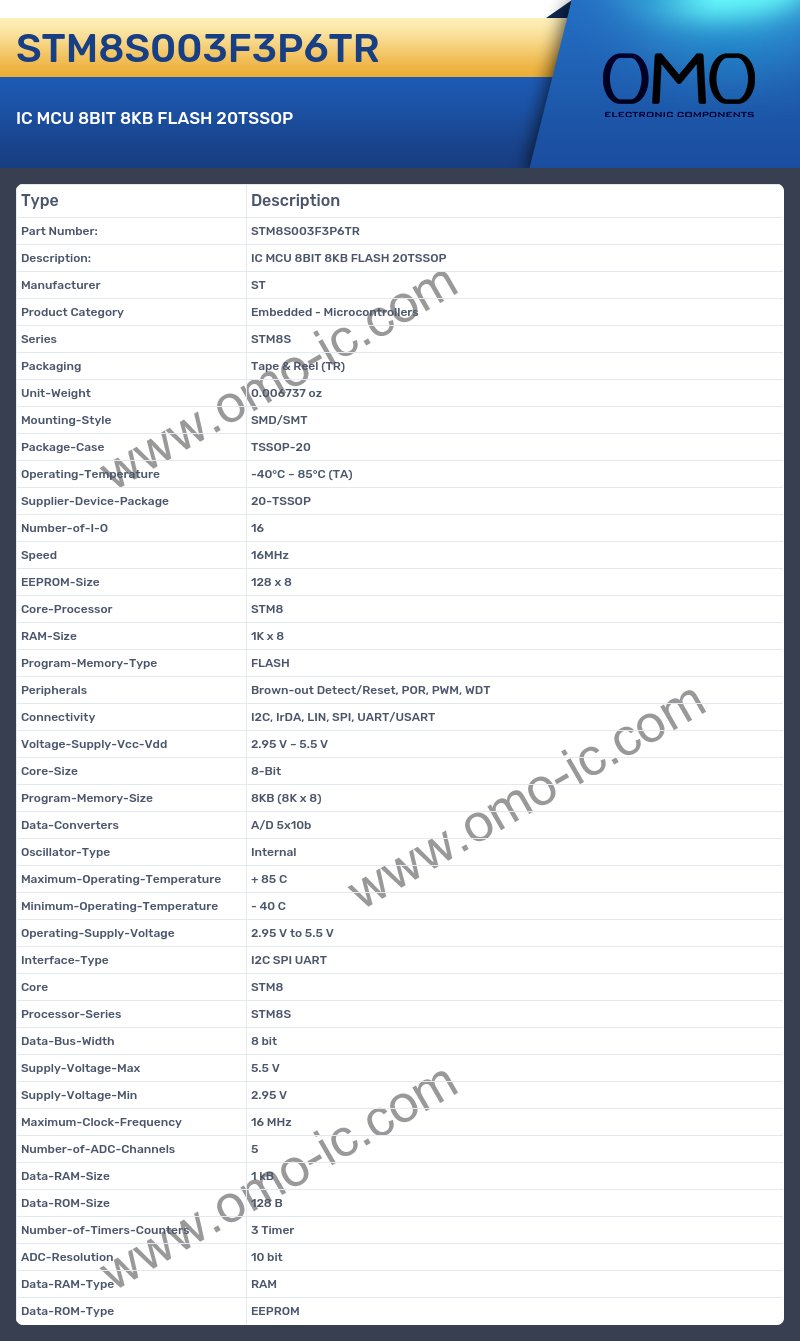

STM8S003F3P6TR Specifications

• Manufacturer ST
• Product Category Embedded - Microcontrollers
• Series STM8S
• Packaging Tape & Reel (TR)
• Unit-Weight 0.006737 oz
• Mounting-Style SMD/SMT
• Package-Case TSSOP-20
• Operating-Temperature -40°C ~ 85°C (TA)
• Supplier-Device-Package 20-TSSOP
• Number-of-I-O 16
• Speed 16MHz
• EEPROM-Size 128 x 8
• Core-Processor STM8
• RAM-Size 1K x 8
• Program-Memory-Type FLASH
• Peripherals Brown-out Detect/Reset, POR, PWM, WDT
• Connectivity I2C, IrDA, LIN, SPI, UART/USART
• Voltage-Supply-Vcc-Vdd 2.95 V ~ 5.5 V
• Core-Size 8-Bit
• Program-Memory-Size 8KB (8K x 8)
• Data-Converters A/D 5x10b
• Oscillator-Type Internal
• Maximum-Operating-Temperature + 85 C
• Minimum-Operating-Temperature - 40 C
• Operating-Supply-Voltage 2.95 V to 5.5 V
• Interface-Type I2C SPI UART
• Core STM8
• Processor-Series STM8S
• Data-Bus-Width 8 bit
• Supply-Voltage-Max 5.5 V
• Supply-Voltage-Min 2.95 V
• Maximum-Clock-Frequency 16 MHz
• Number-of-ADC-Channels 5
• Data-RAM-Size 1 kB
• Data-ROM-Size 128 B
• Number-of-Timers-Counters 3 Timer
• ADC-Resolution 10 bit
• Data-RAM-Type RAM
• Data-ROM-Type EEPROM
