STM32F103VEH6

STM32F103VEH6 Overview

Product belongs to the STM32 F1 series. Tray is the packaging method for this product SMD/SMT Mounting-Style Trade name: STM32. BGA-100 Operational temperature range: -40°C ~ 85°C (TA) Supplier device package: * This product has 80 I/O ports for versatile connectivity. Operating frequency: 72MHz Program memory type: FLASH CAN, I2C, IrDA, LIN, SPI, UART/USART, USB interface Supply Voltage: 2 V ~ 3.6 V 32-Bit architecture Internal oscillator type Maximum operating temperature of + 85 C Minimum operating temperature: - 40 C This product operates at a 2 V to 3.6 V supply voltage for reliable performance. CAN I2C SPI USART USB interface type Processor Core: ARM Cortex M3 This product is powered by the ARM Cortex-M Processor-Series, providing high performance and efficiency. The 32 bit. Maximum supply voltage of 3.6 V Minimum supply voltage is 2 V Maximum clock frequency of 72 MHz Number of ADC Channels: 16 This product has 80 I/O connections. This product has a 64 kB data RAM size, providing ample storage for complex applications. This product features 8 Timer number of timers and counters. This product features a high-precision 12 bit, ensuring accurate data conversion. This product utilizes SRAM, providing fast and efficient data storage.

STM32F103VEH6 Image

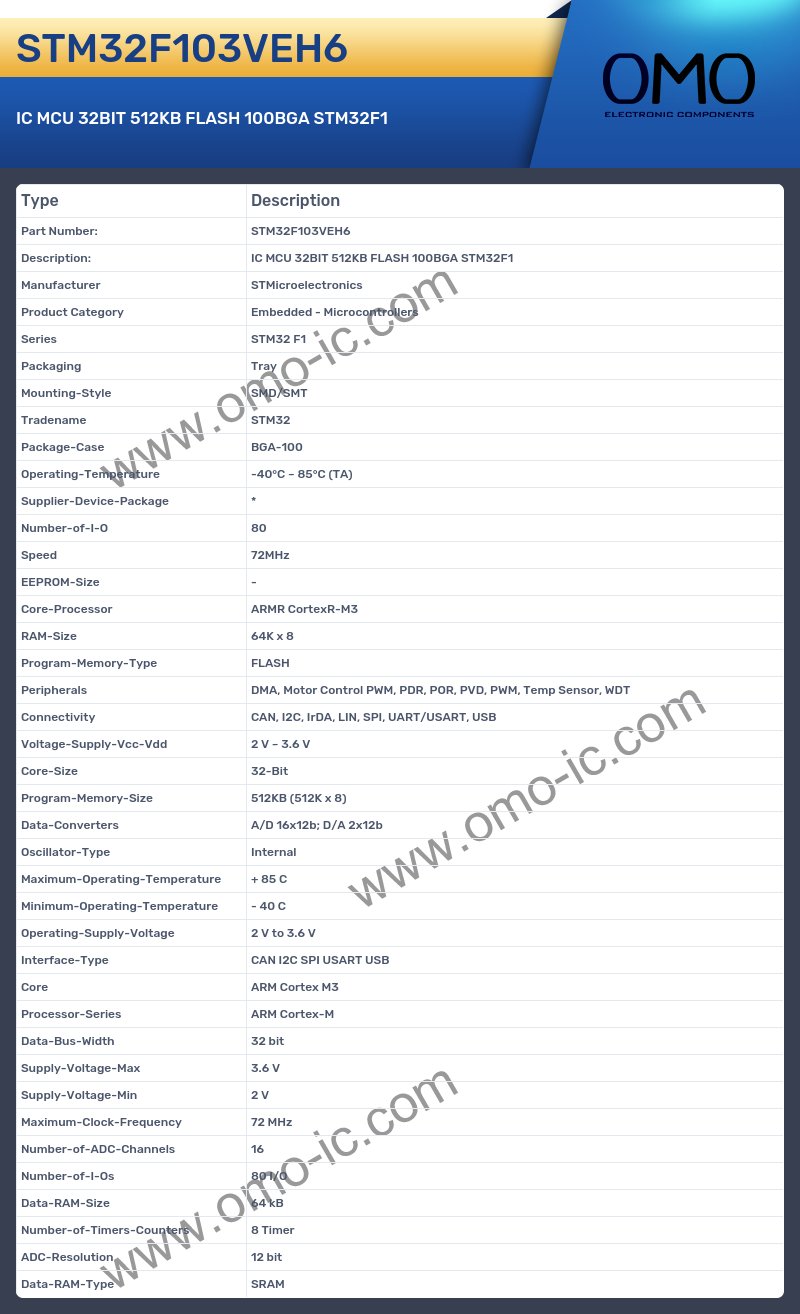

STM32F103VEH6 Specifications

• Manufacturer STMicroelectronics
• Product Category Embedded - Microcontrollers
• Series STM32 F1
• Packaging Tray
• Mounting-Style SMD/SMT
• Tradename STM32
• Package-Case BGA-100
• Operating-Temperature -40°C ~ 85°C (TA)
• Supplier-Device-Package *
• Number-of-I-O 80
• Speed 72MHz
• EEPROM-Size -
• Core-Processor ARMR CortexR-M3
• RAM-Size 64K x 8
• Program-Memory-Type FLASH
• Peripherals DMA, Motor Control PWM, PDR, POR, PVD, PWM, Temp Sensor, WDT
• Connectivity CAN, I2C, IrDA, LIN, SPI, UART/USART, USB
• Voltage-Supply-Vcc-Vdd 2 V ~ 3.6 V
• Core-Size 32-Bit
• Program-Memory-Size 512KB (512K x 8)
• Data-Converters A/D 16x12b; D/A 2x12b
• Oscillator-Type Internal
• Maximum-Operating-Temperature + 85 C
• Minimum-Operating-Temperature - 40 C
• Operating-Supply-Voltage 2 V to 3.6 V
• Interface-Type CAN I2C SPI USART USB
• Core ARM Cortex M3
• Processor-Series ARM Cortex-M
• Data-Bus-Width 32 bit
• Supply-Voltage-Max 3.6 V
• Supply-Voltage-Min 2 V
• Maximum-Clock-Frequency 72 MHz
• Number-of-ADC-Channels 16
• Number-of-I-Os 80 I/O
• Data-RAM-Size 64 kB
• Number-of-Timers-Counters 8 Timer
• ADC-Resolution 12 bit
• Data-RAM-Type SRAM
