STL36N55M5

STL36N55M5 Overview

Product belongs to the MDmesh M5 series. Reel is the packaging method for this product SMD/SMT Mounting-Style PowerFlat-8 Si is the technology used. Number of channels: 1 Channel Transistor type: 1 N-Channel Power-off control: 150 W Maximum operating temperature of + 150 C Minimum operating temperature: - 55 C This product has a 13 ns of 16 ns. This product has a 13 ns of 16 ns. The ID of continuous drain current is 22.5 A. This product has a Vds-Drain-Source-Breakdown-Voltageof 550 V. This product has a 4 V Vgs-th gate-source threshold voltage for efficient power management. The 90 mOhms for this product is 12 Ohms. The transistor polarity is N-Channel. Qg-Gate-Charge is 62 nC.

STL36N55M5 Image

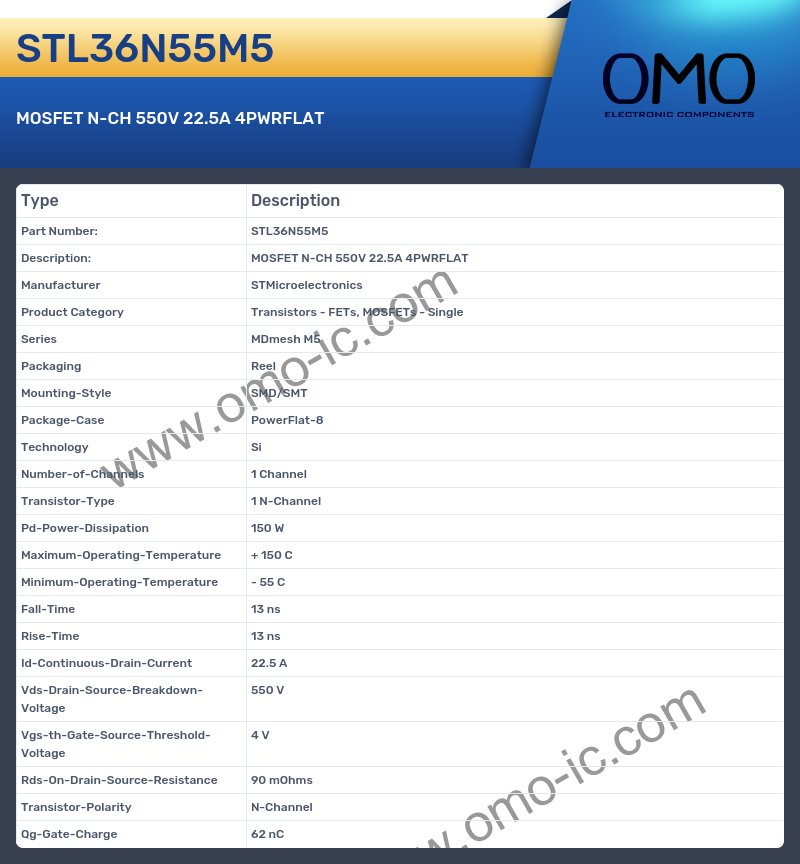

STL36N55M5 Specifications

• Manufacturer STMicroelectronics
• Product Category Transistors - FETs, MOSFETs - Single
• Series MDmesh M5
• Packaging Reel
• Mounting-Style SMD/SMT
• Package-Case PowerFlat-8
• Technology Si
• Number-of-Channels 1 Channel
• Transistor-Type 1 N-Channel
• Pd-Power-Dissipation 150 W
• Maximum-Operating-Temperature + 150 C
• Minimum-Operating-Temperature - 55 C
• Fall-Time 13 ns
• Rise-Time 13 ns
• Id-Continuous-Drain-Current 22.5 A
• Vds-Drain-Source-Breakdown-Voltage 550 V
• Vgs-th-Gate-Source-Threshold-Voltage 4 V
• Rds-On-Drain-Source-Resistance 90 mOhms
• Transistor-Polarity N-Channel
• Qg-Gate-Charge 62 nC
