STL15DN4F5

STL15DN4F5 Overview

Product belongs to the STripFET V series. Digi-ReelR Alternate Packaging is the packaging method for this product SMD/SMT Mounting-Style 8-PowerVDFN Si is the technology used. Operational temperature range: -55°C ~ 175°C (TJ) Surface Mount mounting type Number of channels: 2 Channel Supplier device package: PowerFlat (5x6) Configuration Dual This product uses an 2 N-Channel (Dual) FET-Type transistor. Transistor type: 2 N-Channel 40V This product has an 1550pF @ 25V value of 300pF @ 25V. This product's Logic Level Gate. 60A continuous drain-ID current at 25°C; This product has an 9 mOhm @ 7.5A, 10V of 12 Ohm @ 150mA, 0V. Power-off control: 60 W Maximum operating temperature of + 175 C This product's 20 V. The ID of continuous drain current is 60 A. This product has a Vds-Drain-Source-Breakdown-Voltageof 40 V. The 9 mOhms for this product is 12 Ohms. The transistor polarity is N-Channel.

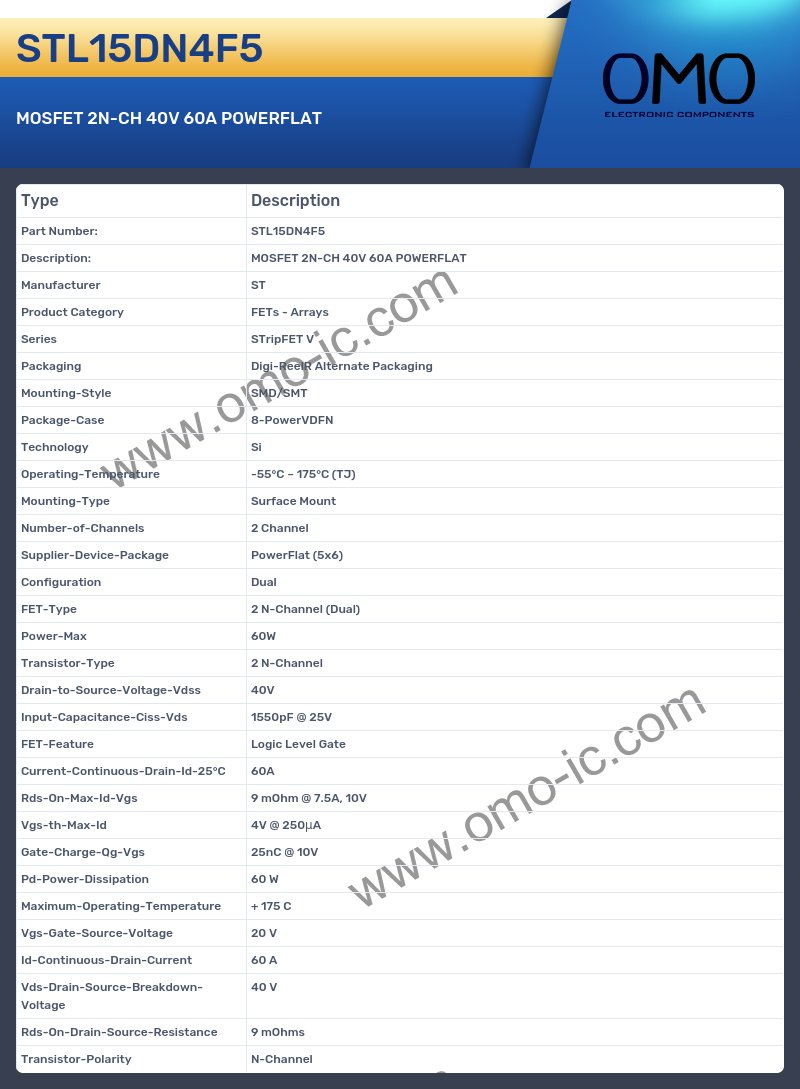

STL15DN4F5 Image

STL15DN4F5 Specifications

• Manufacturer ST
• Product Category FETs - Arrays
• Series STripFET V
• Packaging Digi-ReelR Alternate Packaging
• Mounting-Style SMD/SMT
• Package-Case 8-PowerVDFN
• Technology Si
• Operating-Temperature -55°C ~ 175°C (TJ)
• Mounting-Type Surface Mount
• Number-of-Channels 2 Channel
• Supplier-Device-Package PowerFlat (5x6)
• Configuration Dual
• FET-Type 2 N-Channel (Dual)
• Power-Max 60W
• Transistor-Type 2 N-Channel
• Drain-to-Source-Voltage-Vdss 40V
• Input-Capacitance-Ciss-Vds 1550pF @ 25V
• FET-Feature Logic Level Gate
• Current-Continuous-Drain-Id-25°C 60A
• Rds-On-Max-Id-Vgs 9 mOhm @ 7.5A, 10V
• Vgs-th-Max-Id 4V @ 250μA
• Gate-Charge-Qg-Vgs 25nC @ 10V
• Pd-Power-Dissipation 60 W
• Maximum-Operating-Temperature + 175 C
• Vgs-Gate-Source-Voltage 20 V
• Id-Continuous-Drain-Current 60 A
• Vds-Drain-Source-Breakdown-Voltage 40 V
• Rds-On-Drain-Source-Resistance 9 mOhms
• Transistor-Polarity N-Channel
