STGWF30NC60S

STGWF30NC60S Overview

Product belongs to the PowerMESH series. Tube is the packaging method for this product Weight of 0.245577 oz Through Hole Mounting-Style TO-3P-3 Full Pack The Standard for this product is CMOS/TTL. Through Hole mounting type Supplier device package: TO-3P Configuration Single Maximum current collector Ic is 35A . Maximum collector-emitter breakdown voltage of 600V The Current-Collector-Pulsed-Icm is rated at 150A. The Vce-on-Max-Vge-Ic is rated at 1.9V @ 15V, 20A. 21.5ns/180ns Td-on-off at 25°C; Operating temperature: 480V, 20A, 10 Ohm, 15V Maximum operating temperature of + 150 C Minimum operating temperature: - 55 C Saturation voltage between collector and emitter is 1.5 V

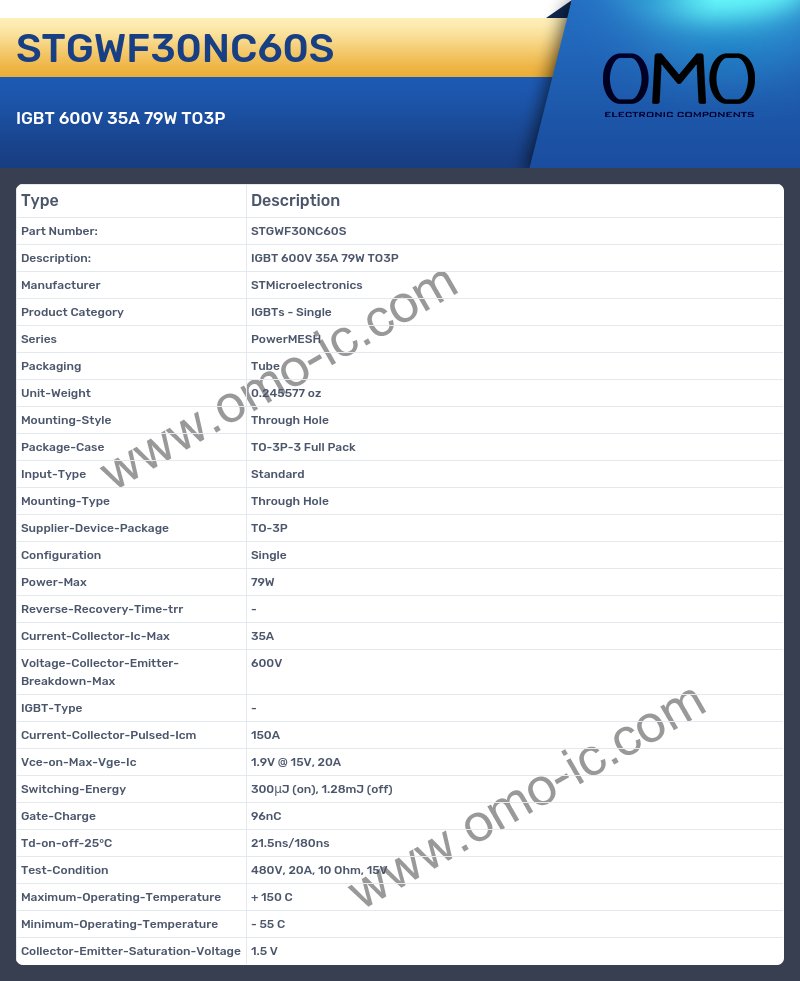

STGWF30NC60S Image

STGWF30NC60S Specifications

• Manufacturer STMicroelectronics
• Product Category IGBTs - Single
• Series PowerMESH
• Packaging Tube
• Unit-Weight 0.245577 oz
• Mounting-Style Through Hole
• Package-Case TO-3P-3 Full Pack
• Input-Type Standard
• Mounting-Type Through Hole
• Supplier-Device-Package TO-3P
• Configuration Single
• Power-Max 79W
• Reverse-Recovery-Time-trr -
• Current-Collector-Ic-Max 35A
• Voltage-Collector-Emitter-Breakdown-Max 600V
• IGBT-Type -
• Current-Collector-Pulsed-Icm 150A
• Vce-on-Max-Vge-Ic 1.9V @ 15V, 20A
• Switching-Energy 300μJ (on), 1.28mJ (off)
• Gate-Charge 96nC
• Td-on-off-25°C 21.5ns/180ns
• Test-Condition 480V, 20A, 10 Ohm, 15V
• Maximum-Operating-Temperature + 150 C
• Minimum-Operating-Temperature - 55 C
• Collector-Emitter-Saturation-Voltage 1.5 V
