STGW35NC120HD

STGW35NC120HD Overview

Product belongs to the PowerMESH series. Tube is the packaging method for this product Weight of 1.340411 oz Through Hole Mounting-Style TO-247-3 The Standard for this product is CMOS/TTL. Through Hole mounting type Supplier device package: TO-247-3 Configuration Single Maximum current collector Ic is 60A . Maximum collector-emitter breakdown voltage of 1200V The Current-Collector-Pulsed-Icm is rated at 135A. The Vce-on-Max-Vge-Ic is rated at 2.75V @ 15V, 20A. 29ns/275ns Td-on-off at 25°C; Operating temperature: 960V, 20A, 10 Ohm, 15V Maximum operating temperature of + 150 C Minimum operating temperature: - 55 C Rated VCEO up to 1200 V Maximum-Gate-Emitter-Voltage: +/- 25 V Maximal 58 A Collector Current of Continuity;

STGW35NC120HD Image

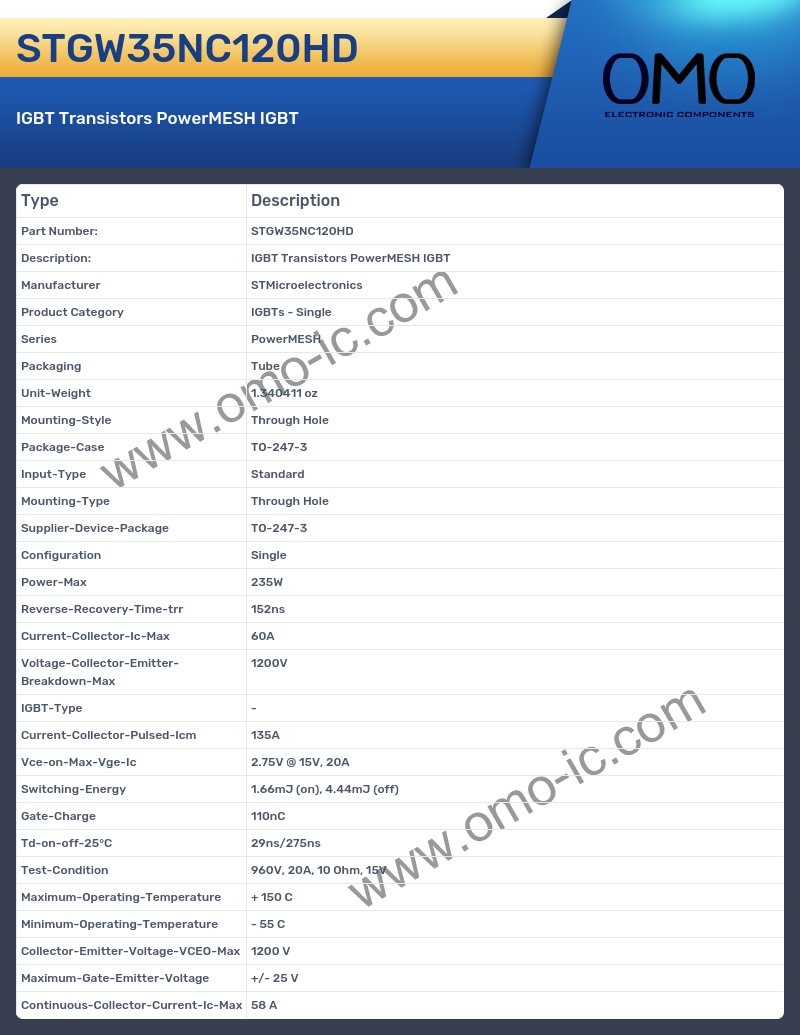

STGW35NC120HD Specifications

• Manufacturer STMicroelectronics
• Product Category IGBTs - Single
• Series PowerMESH
• Packaging Tube
• Unit-Weight 1.340411 oz
• Mounting-Style Through Hole
• Package-Case TO-247-3
• Input-Type Standard
• Mounting-Type Through Hole
• Supplier-Device-Package TO-247-3
• Configuration Single
• Power-Max 235W
• Reverse-Recovery-Time-trr 152ns
• Current-Collector-Ic-Max 60A
• Voltage-Collector-Emitter-Breakdown-Max 1200V
• IGBT-Type -
• Current-Collector-Pulsed-Icm 135A
• Vce-on-Max-Vge-Ic 2.75V @ 15V, 20A
• Switching-Energy 1.66mJ (on), 4.44mJ (off)
• Gate-Charge 110nC
• Td-on-off-25°C 29ns/275ns
• Test-Condition 960V, 20A, 10 Ohm, 15V
• Maximum-Operating-Temperature + 150 C
• Minimum-Operating-Temperature - 55 C
• Collector-Emitter-Voltage-VCEO-Max 1200 V
• Maximum-Gate-Emitter-Voltage +/- 25 V
• Continuous-Collector-Current-Ic-Max 58 A
