STGP19NC60S Overview

Product belongs to the PowerMESH series. Tube Alternate Packaging is the packaging method for this product TO-220-3 The Standard for this product is CMOS/TTL. Through Hole mounting type Supplier device package: TO-220 Maximum current collector Ic is 40A . Maximum collector-emitter breakdown voltage of 600V The Current-Collector-Pulsed-Icm is rated at 80A. The Vce-on-Max-Vge-Ic is rated at 1.9V @ 15V, 12A. 17.5ns/175ns Td-on-off at 25°C; Operating temperature: 480V, 12A, 10 Ohm, 15V

STGP19NC60S Image

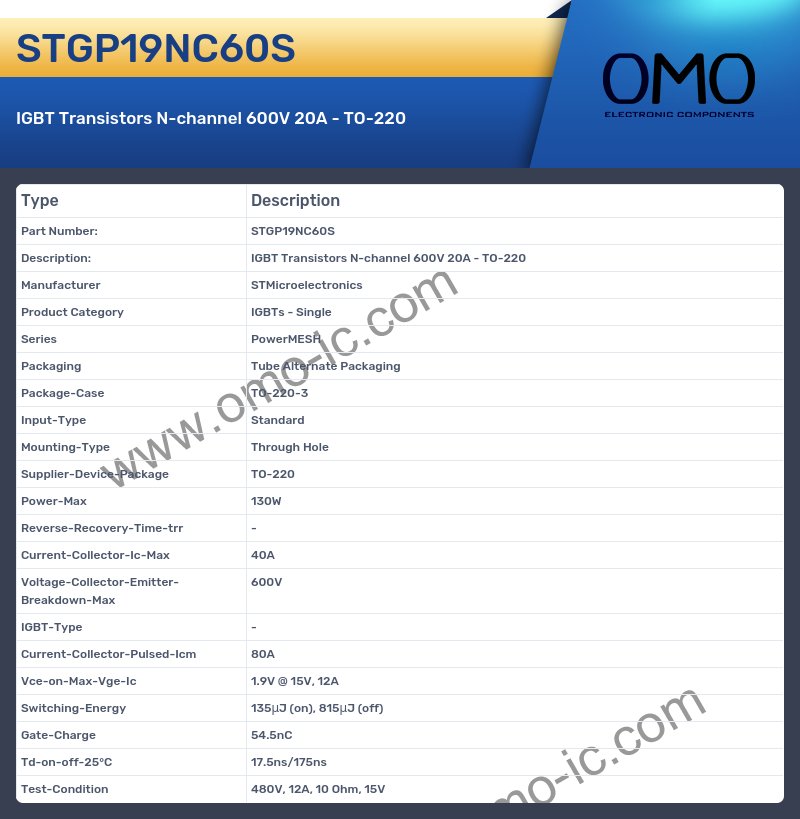

STGP19NC60S Specifications

• Manufacturer STMicroelectronics
• Product Category IGBTs - Single
• Series PowerMESH
• Packaging Tube Alternate Packaging
• Package-Case TO-220-3
• Input-Type Standard
• Mounting-Type Through Hole
• Supplier-Device-Package TO-220
• Power-Max 130W
• Reverse-Recovery-Time-trr -
• Current-Collector-Ic-Max 40A
• Voltage-Collector-Emitter-Breakdown-Max 600V
• IGBT-Type -
• Current-Collector-Pulsed-Icm 80A
• Vce-on-Max-Vge-Ic 1.9V @ 15V, 12A
• Switching-Energy 135μJ (on), 815μJ (off)
• Gate-Charge 54.5nC
• Td-on-off-25°C 17.5ns/175ns
• Test-Condition 480V, 12A, 10 Ohm, 15V
