STGD6NC60HT4

STGD6NC60HT4 Overview

Product belongs to the PowerMESH series. Digi-ReelR is the packaging method for this product TO-252-3, DPak (2 Leads + Tab), SC-63 The Standard for this product is CMOS/TTL. Surface Mount mounting type Supplier device package: D-Pak Maximum current collector Ic is 15A . Maximum collector-emitter breakdown voltage of 600V The Current-Collector-Pulsed-Icm is rated at 21A. The Vce-on-Max-Vge-Ic is rated at 2.5V @ 15V, 3A. 12ns/76ns Td-on-off at 25°C; Operating temperature: 390V, 3A, 10 Ohm, 15V

STGD6NC60HT4 Image

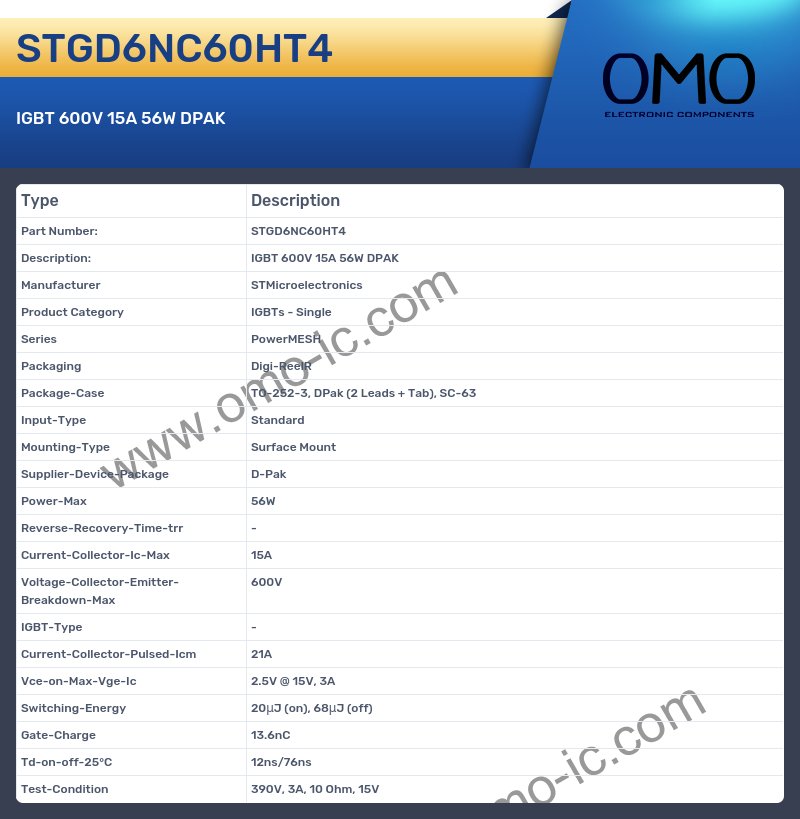

STGD6NC60HT4 Specifications

• Manufacturer STMicroelectronics
• Product Category IGBTs - Single
• Series PowerMESH
• Packaging Digi-ReelR
• Package-Case TO-252-3, DPak (2 Leads + Tab), SC-63
• Input-Type Standard
• Mounting-Type Surface Mount
• Supplier-Device-Package D-Pak
• Power-Max 56W
• Reverse-Recovery-Time-trr -
• Current-Collector-Ic-Max 15A
• Voltage-Collector-Emitter-Breakdown-Max 600V
• IGBT-Type -
• Current-Collector-Pulsed-Icm 21A
• Vce-on-Max-Vge-Ic 2.5V @ 15V, 3A
• Switching-Energy 20μJ (on), 68μJ (off)
• Gate-Charge 13.6nC
• Td-on-off-25°C 12ns/76ns
• Test-Condition 390V, 3A, 10 Ohm, 15V
