STGBL6NC60DT4

STGBL6NC60DT4 Overview

Product belongs to the PowerMESH series. Digi-ReelR Alternate Packaging is the packaging method for this product TO-263-3, D2Pak (2 Leads + Tab), TO-263AB The Standard for this product is CMOS/TTL. Surface Mount mounting type Supplier device package: D2PAK Maximum current collector Ic is 14A . Maximum collector-emitter breakdown voltage of 600V The Current-Collector-Pulsed-Icm is rated at 18A. The Vce-on-Max-Vge-Ic is rated at 2.9V @ 15V, 3A. 6.7ns/46ns Td-on-off at 25°C; Operating temperature: 390V, 3A, 10 Ohm, 15V

STGBL6NC60DT4 Image

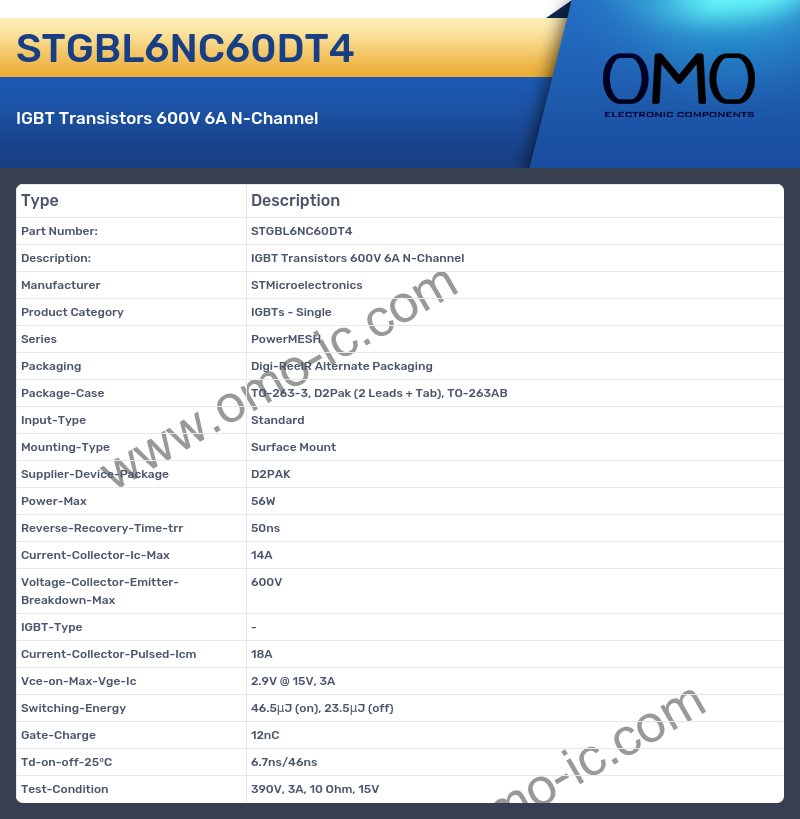

STGBL6NC60DT4 Specifications

• Manufacturer STMicroelectronics
• Product Category IGBTs - Single
• Series PowerMESH
• Packaging Digi-ReelR Alternate Packaging
• Package-Case TO-263-3, D2Pak (2 Leads + Tab), TO-263AB
• Input-Type Standard
• Mounting-Type Surface Mount
• Supplier-Device-Package D2PAK
• Power-Max 56W
• Reverse-Recovery-Time-trr 50ns
• Current-Collector-Ic-Max 14A
• Voltage-Collector-Emitter-Breakdown-Max 600V
• IGBT-Type -
• Current-Collector-Pulsed-Icm 18A
• Vce-on-Max-Vge-Ic 2.9V @ 15V, 3A
• Switching-Energy 46.5μJ (on), 23.5μJ (off)
• Gate-Charge 12nC
• Td-on-off-25°C 6.7ns/46ns
• Test-Condition 390V, 3A, 10 Ohm, 15V
