STG3820BJR

STG3820BJR Overview

RoHS compliant with Details Switch Quantity: 4 Switch Configuration 4 x DPDT Maximum On Resistance: 7.3 Ohms Maximum voltage for switch is 3 V Maximum on-time: 15 ns Maximum off time: 13 ns The 1.65 V to 4.3 V is 15 V. Maximum Operating Temperature: + 85 C Input bias current of SMD/SMT Package type is Flip Chip-30 - 40 C minimum operating temperature Reel is the packaging method for this product The power dissipation is 1.12 W. Product belongs to the STG3820 series. Maximum supply current: 200 nA Supply Type: Single Supply Maximum supply voltage of 4.3 V The minimum supply voltage is 1.65 V

STG3820BJR Image

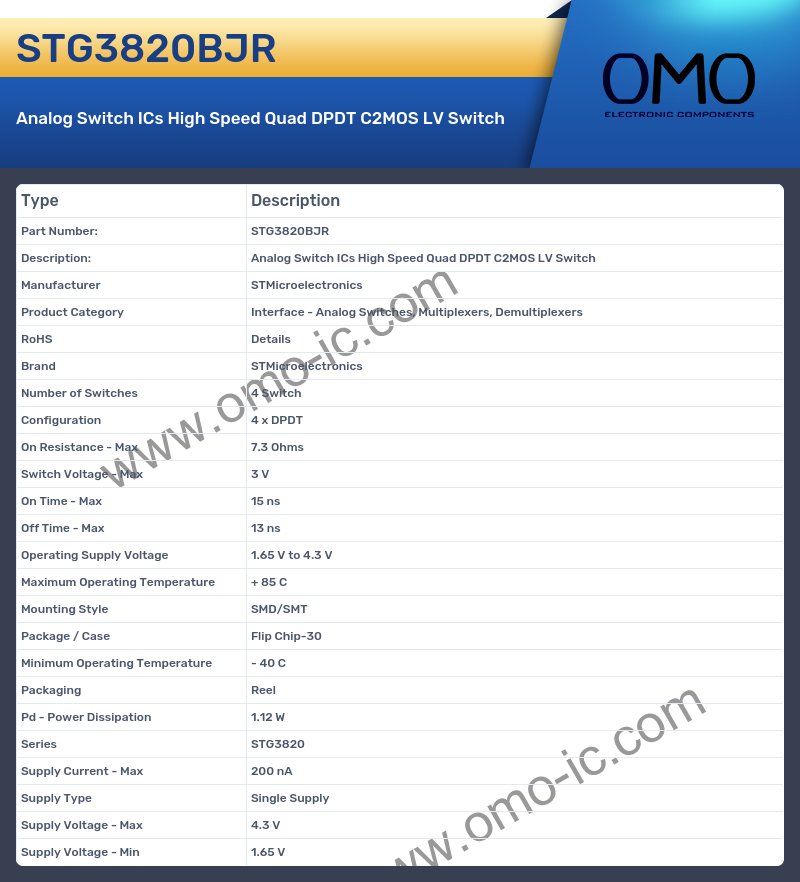

STG3820BJR Specifications

• Manufacturer STMicroelectronics
• Product Category Interface - Analog Switches, Multiplexers, Demultiplexers
• RoHS Details
• Brand STMicroelectronics
• Number of Switches 4 Switch
• Configuration 4 x DPDT
• On Resistance - Max 7.3 Ohms
• Switch Voltage - Max 3 V
• On Time - Max 15 ns
• Off Time - Max 13 ns
• Operating Supply Voltage 1.65 V to 4.3 V
• Maximum Operating Temperature + 85 C
• Mounting Style SMD/SMT
• Package / Case Flip Chip-30
• Minimum Operating Temperature - 40 C
• Packaging Reel
• Pd - Power Dissipation 1.12 W
• Series STG3820
• Supply Current - Max 200 nA
• Supply Type Single Supply
• Supply Voltage - Max 4.3 V
• Supply Voltage - Min 1.65 V
