STG3699BVTR

STG3699BVTR Overview

Product belongs to the - series. Cut Tape (CT) is the packaging method for this product Product Obsolete Demultiplexer Circuit with 2: outputs This product features a 4. Maximum On-State Resistance: 500 mOhm " 150 mOhm Channel-to-Channel Matching Dual voltage supply of - The Switch Time is 55ns, 30ns. This product has a 40MHz The channel capacitance is 5pF. Operating Temperature of -55°C ~ 125°C (TA) Package type is 16-UFQFN The supplier device package for this product is 16-QFN (2.6x1.8). STG3699 is the base part number.

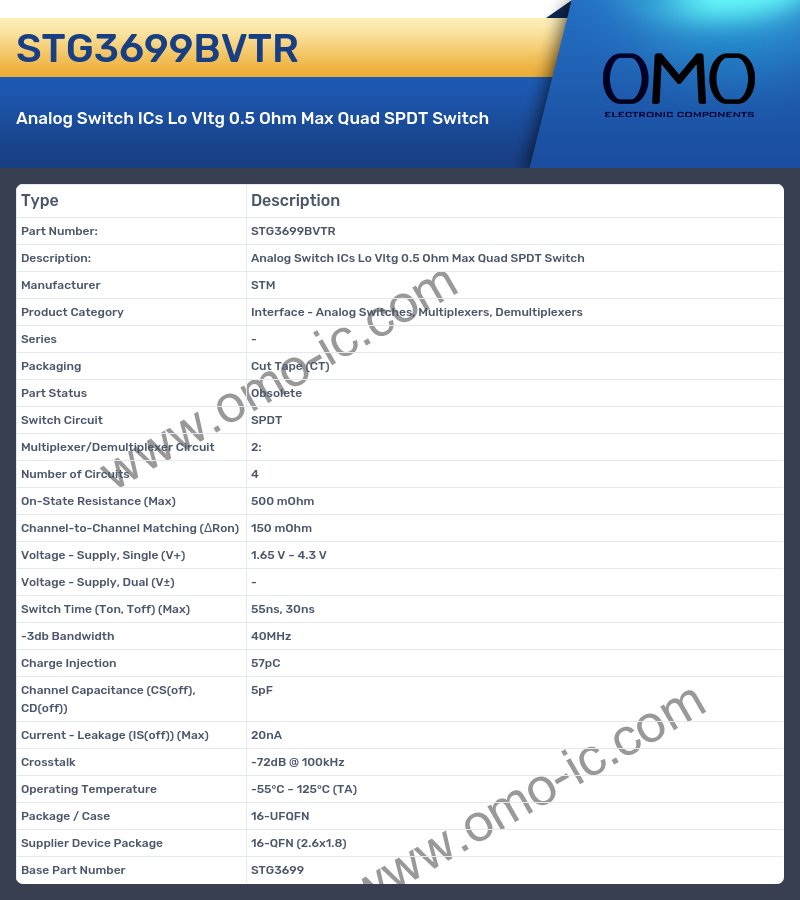

STG3699BVTR Image

STG3699BVTR Specifications

• Manufacturer STM
• Product Category Interface - Analog Switches, Multiplexers, Demultiplexers
• Series -
• Packaging Cut Tape (CT)
• Part Status Obsolete
• Switch Circuit SPDT
• Multiplexer/Demultiplexer Circuit 2:
• Number of Circuits 4
• On-State Resistance (Max) 500 mOhm
• Channel-to-Channel Matching (ΔRon) 150 mOhm
• Voltage - Supply, Single (V+) 1.65 V ~ 4.3 V
• Voltage - Supply, Dual (V±) -
• Switch Time (Ton, Toff) (Max) 55ns, 30ns
• -3db Bandwidth 40MHz
• Charge Injection 57pC
• Channel Capacitance (CS(off), CD(off)) 5pF
• Current - Leakage (IS(off)) (Max) 20nA
• Crosstalk -72dB @ 100kHz
• Operating Temperature -55°C ~ 125°C (TA)
• Package / Case 16-UFQFN
• Supplier Device Package 16-QFN (2.6x1.8)
• Base Part Number STG3699
