| Mfr. #: | STF715 |
|---|---|
| निर्माता: | STMicroelectronics |
| विवरण: | Bipolar Transistors - BJT NPN TRANSISTOR |
| जीवन चक्र: | यस निर्माताबाट नयाँ। |
| डाटा पाना: | STF715 डाटा पाना |
Product belongs to the 500V Transistors series. Digi-ReelR Alternate Packaging is the packaging method for this product Weight of 0.004603 oz SMD/SMT Mounting-Style TO-243AA Surface Mount mounting type Supplier device package: SOT-89-3 Configuration Single Transistor type: NPN Maximum current collector Ic is 1.5A . Maximum collector-emitter breakdown voltage of 80V DC current gain minimum (hFE) of Ic/Vce at 40 @ 1A, 2V. Product Attribute: Vce-Saturation-Max-Ib-Ic: 500mV @ 100mA, 1A Power-off control: 1.4 W Maximum operating temperature of + 150 C Minimum operating temperature: - 65 C Rated VCEO up to 80 V The transistor polarity is NPN. The 140 V voltage rating is 40 V. 5 V rating of 5 V Max DC collector current: 1.5 A Gain-Bandwidth-Product: 50 MHz Minimum hfe for DC collector-base gain is 140.
Image shown is a representation only. Exact specifications should be obtained from the product data sheet.

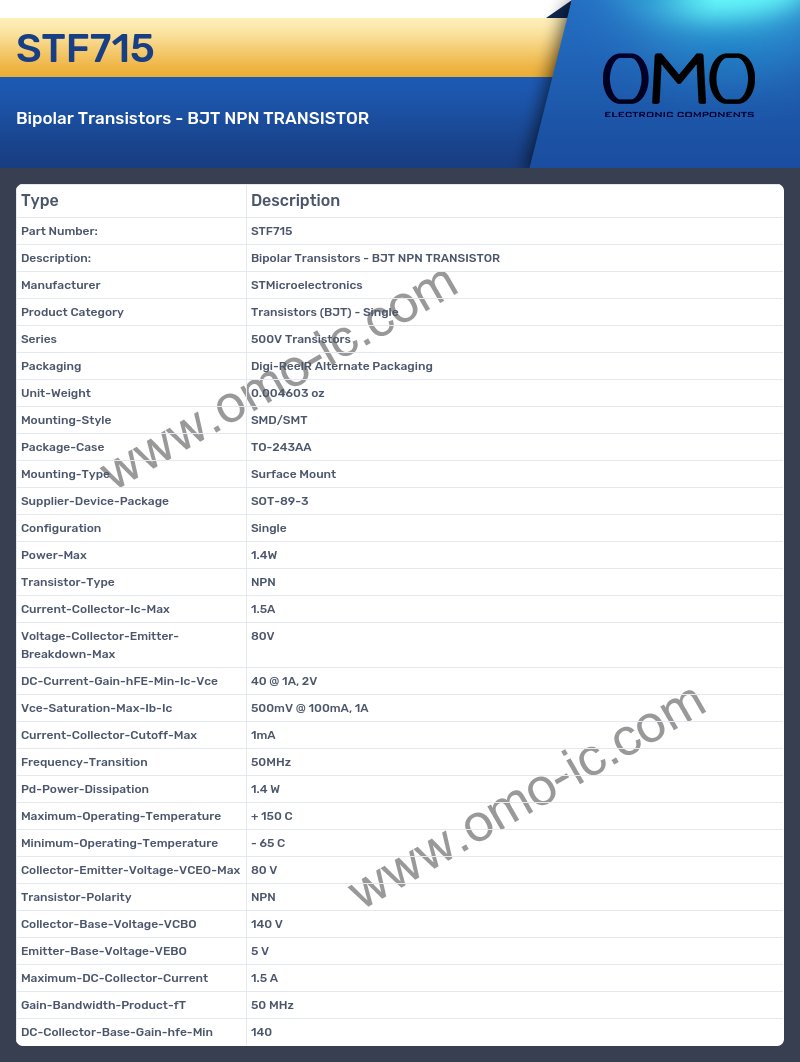

STF715 Specifications
A: What is the Series of the product?
Q: The Series of the product is 500V Transistors.
A: What is the Packaging of the product?
Q: The Packaging of the product is Digi-ReelR Alternate Packaging.
A: At what frequency does the Unit-Weight?
Q: The product Unit-Weight is 0.004603 oz.
A: Is the cutoff frequency of the product Mounting-Style?
Q: Yes, the product's Mounting-Style is indeed SMD/SMT
A: What is the Package-Case of the product?
Q: The Package-Case of the product is TO-243AA.
A: What is the Mounting-Type of the product?
Q: The Mounting-Type of the product is Surface Mount.
A: Is the cutoff frequency of the product Supplier-Device-Package?
Q: Yes, the product's Supplier-Device-Package is indeed SOT-89-3
A: At what frequency does the Configuration?
Q: The product Configuration is Single.
A: What is the Transistor-Type of the product?
Q: The Transistor-Type of the product is NPN.
A: What is the Current-Collector-Ic-Max of the product?
Q: The Current-Collector-Ic-Max of the product is 1.5A.
A: At what frequency does the Voltage-Collector-Emitter-Breakdown-Max?
Q: The product Voltage-Collector-Emitter-Breakdown-Max is 80V.
A: What is the DC-Current-Gain-hFE-Min-Ic-Vce of the product?
Q: The DC-Current-Gain-hFE-Min-Ic-Vce of the product is 40 @ 1A, 2V.
A: At what frequency does the Vce-Saturation-Max-Ib-Ic?
Q: The product Vce-Saturation-Max-Ib-Ic is 500mV @ 100mA, 1A.
A: Is the cutoff frequency of the product Pd-Power-Dissipation?
Q: Yes, the product's Pd-Power-Dissipation is indeed 1.4 W
A: At what frequency does the Maximum-Operating-Temperature?
Q: The product Maximum-Operating-Temperature is + 150 C.
A: What is the Minimum-Operating-Temperature of the product?
Q: The Minimum-Operating-Temperature of the product is - 65 C.
A: What is the Collector-Emitter-Voltage-VCEO-Max of the product?
Q: The Collector-Emitter-Voltage-VCEO-Max of the product is 80 V.
A: Is the cutoff frequency of the product Transistor-Polarity?
Q: Yes, the product's Transistor-Polarity is indeed NPN
A: What is the Collector-Base-Voltage-VCBO of the product?
Q: The Collector-Base-Voltage-VCBO of the product is 140 V.
A: At what frequency does the Emitter-Base-Voltage-VEBO?
Q: The product Emitter-Base-Voltage-VEBO is 5 V.
A: Is the cutoff frequency of the product Maximum-DC-Collector-Current?
Q: Yes, the product's Maximum-DC-Collector-Current is indeed 1.5 A
A: What is the Gain-Bandwidth-Product-fT of the product?
Q: The Gain-Bandwidth-Product-fT of the product is 50 MHz.
A: Is the cutoff frequency of the product DC-Collector-Base-Gain-hfe-Min?
Q: Yes, the product's DC-Collector-Base-Gain-hfe-Min is indeed 140
