STF10N60M2

STF10N60M2 Overview

Product belongs to the MDmesh II Plus series. Tube is the packaging method for this product Weight of 0.011640 oz Through Hole Mounting-Style TO-220-3 Full Pack Si is the technology used. Operational temperature range: -55°C ~ 150°C (TJ) Through Hole mounting type Number of channels: 1 Channel Supplier device package: TO-220FP Configuration Single This product uses an MOSFET N-Channel, Metal Oxide FET-Type transistor. Transistor type: 1 N-Channel 600V This product has an 400pF @ 100V value of 300pF @ 25V. This product's Standard. 7.5A (Tc) continuous drain-ID current at 25°C; This product has an 600 mOhm @ 4A, 10V of 12 Ohm @ 150mA, 0V. Power-off control: 25 W Maximum operating temperature of + 150 C Minimum operating temperature: - 55 C This product has a 13.2 ns of 16 ns. This product has a 8 ns of 16 ns. This product's 25 V. The ID of continuous drain current is 7.5 A. This product has a Vds-Drain-Source-Breakdown-Voltageof 600 V. This product has a 3 V Vgs-th gate-source threshold voltage for efficient power management. The 560 mOhms for this product is 12 Ohms. The transistor polarity is N-Channel. 'Typical-Turn-Off-Delay-Time' of 32.5 ns This product has a 8.8 ns. Qg-Gate-Charge is 13.5 nC.

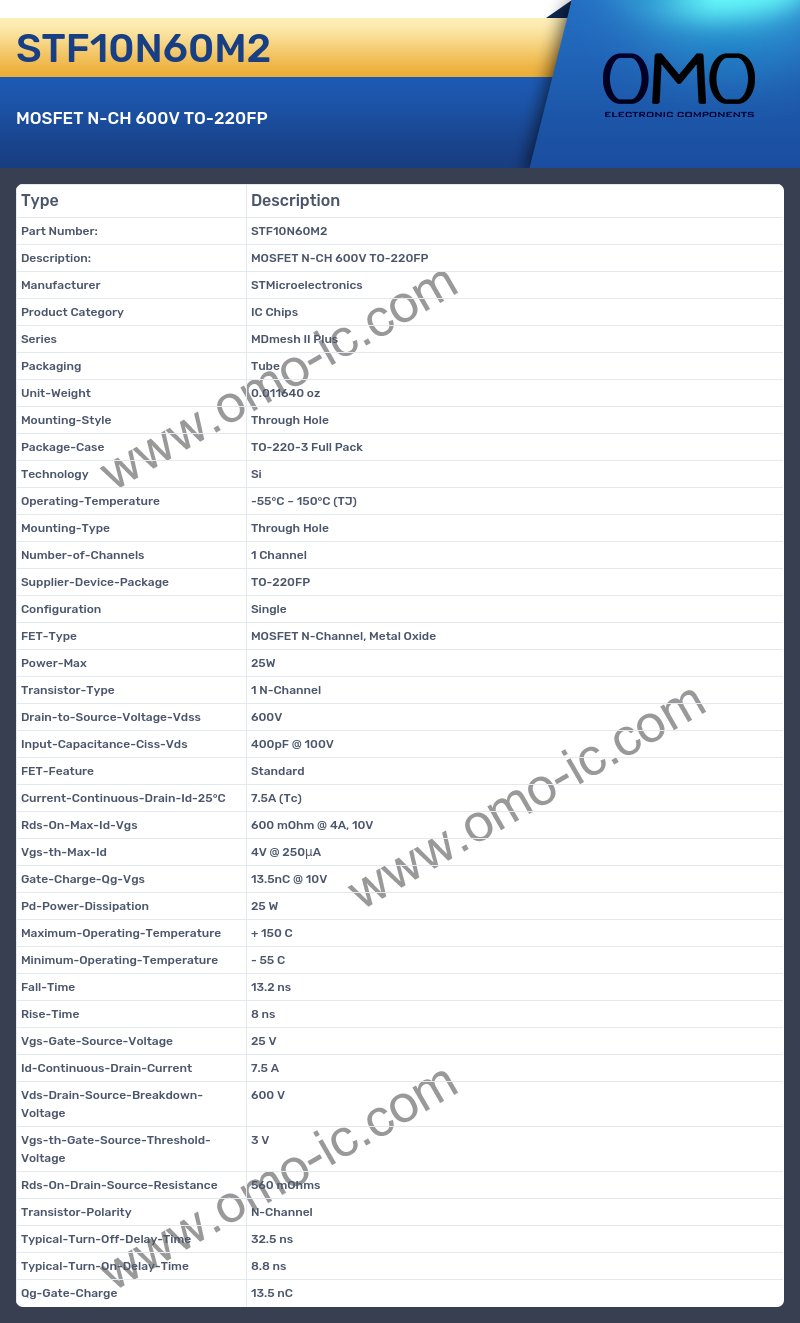

STF10N60M2 Image

STF10N60M2 Specifications

• Manufacturer STMicroelectronics
• Product Category IC Chips
• Series MDmesh II Plus
• Packaging Tube
• Unit-Weight 0.011640 oz
• Mounting-Style Through Hole
• Package-Case TO-220-3 Full Pack
• Technology Si
• Operating-Temperature -55°C ~ 150°C (TJ)
• Mounting-Type Through Hole
• Number-of-Channels 1 Channel
• Supplier-Device-Package TO-220FP
• Configuration Single
• FET-Type MOSFET N-Channel, Metal Oxide
• Power-Max 25W
• Transistor-Type 1 N-Channel
• Drain-to-Source-Voltage-Vdss 600V
• Input-Capacitance-Ciss-Vds 400pF @ 100V
• FET-Feature Standard
• Current-Continuous-Drain-Id-25°C 7.5A (Tc)
• Rds-On-Max-Id-Vgs 600 mOhm @ 4A, 10V
• Vgs-th-Max-Id 4V @ 250μA
• Gate-Charge-Qg-Vgs 13.5nC @ 10V
• Pd-Power-Dissipation 25 W
• Maximum-Operating-Temperature + 150 C
• Minimum-Operating-Temperature - 55 C
• Fall-Time 13.2 ns
• Rise-Time 8 ns
• Vgs-Gate-Source-Voltage 25 V
• Id-Continuous-Drain-Current 7.5 A
• Vds-Drain-Source-Breakdown-Voltage 600 V
• Vgs-th-Gate-Source-Threshold-Voltage 3 V
• Rds-On-Drain-Source-Resistance 560 mOhms
• Transistor-Polarity N-Channel
• Typical-Turn-Off-Delay-Time 32.5 ns
• Typical-Turn-On-Delay-Time 8.8 ns
• Qg-Gate-Charge 13.5 nC
