STD2NM60T4

STD2NM60T4 Overview

Product belongs to the MDmesh series. Tape & Reel (TR) is the packaging method for this product Product Obsolete N-Channel FET Type MOSFET (Metal Oxide) is the technology used. Drain to Source Voltage (Vdss) is 600V Current - Continuous Drain (Id) at 25°C is given as 2A (Tc). This product's 10V is 1.8V, 4.5V. This product's 5V @ 250A for optimal performance. The maximum 8.4nC @ 10V gate charge of this product ensures efficient switching performance. Vgs (Max): ±30V This product has a maximum 160pF @ 25V input capacitance at Vds for improved circuit performance. The maximum power dissipation is 46W (Tc). Rds On (Max) @ Id, Vgs is 3.2 Ohm @ 1A, 10V. Operating Temperature of 150°C (TJ) This product has a Surface Mount. The supplier device package for this product is D-Pak. Package type is TO-252-3, DPak (2 Leads + Tab), SC-63

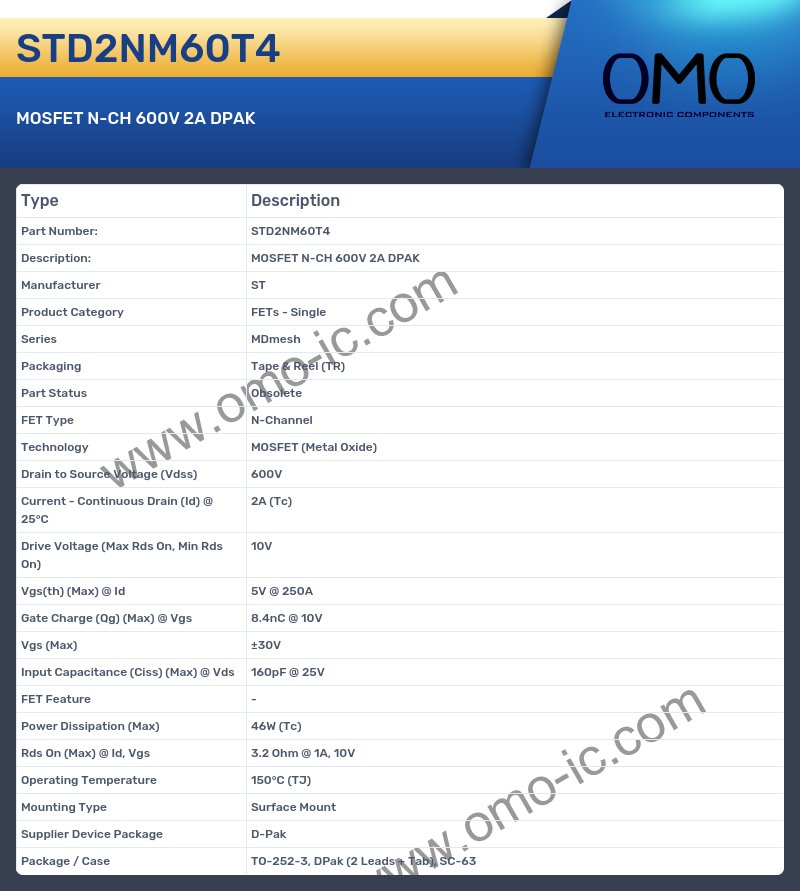

STD2NM60T4 Image

STD2NM60T4 Specifications

• Manufacturer ST
• Product Category FETs - Single
• Series MDmesh
• Packaging Tape & Reel (TR)
• Part Status Obsolete
• FET Type N-Channel
• Technology MOSFET (Metal Oxide)
• Drain to Source Voltage (Vdss) 600V
• Current - Continuous Drain (Id) @ 25°C 2A (Tc)
• Drive Voltage (Max Rds On, Min Rds On) 10V
• Vgs(th) (Max) @ Id 5V @ 250A
• Gate Charge (Qg) (Max) @ Vgs 8.4nC @ 10V
• Vgs (Max) ±30V
• Input Capacitance (Ciss) (Max) @ Vds 160pF @ 25V
• FET Feature -
• Power Dissipation (Max) 46W (Tc)
• Rds On (Max) @ Id, Vgs 3.2 Ohm @ 1A, 10V
• Operating Temperature 150°C (TJ)
• Mounting Type Surface Mount
• Supplier Device Package D-Pak
• Package / Case TO-252-3, DPak (2 Leads + Tab), SC-63
