| Mfr. #: | STD1NK60T4 |
|---|---|
| निर्माता: | STMicroelectronics |
| विवरण: | MOSFET N-CH 600V 1A DPAK |
| जीवन चक्र: | यस निर्माताबाट नयाँ। |
| डाटा पाना: | STD1NK60T4 डाटा पाना |
Product belongs to the SuperMESH series. Digi-ReelR Alternate Packaging is the packaging method for this product Weight of 0.139332 oz SMD/SMT Mounting-Style TO-252-3, DPak (2 Leads + Tab), SC-63 Si is the technology used. Operational temperature range: -55°C ~ 150°C (TJ) Surface Mount mounting type Number of channels: 1 Channel Supplier device package: D-Pak Configuration Single This product uses an MOSFET N-Channel, Metal Oxide FET-Type transistor. Transistor type: 1 N-Channel 600V This product has an 156pF @ 25V value of 300pF @ 25V. This product's Standard. 1A (Tc) continuous drain-ID current at 25°C; This product has an 8.5 Ohm @ 500mA, 10V of 12 Ohm @ 150mA, 0V. Power-off control: 30 W Maximum operating temperature of + 150 C Minimum operating temperature: - 55 C This product has a 25 ns of 16 ns. This product has a 5 ns of 16 ns. This product's 30 V. The ID of continuous drain current is 1 A. This product has a Vds-Drain-Source-Breakdown-Voltageof 600 V. The 8 Ohms for this product is 12 Ohms. The transistor polarity is N-Channel. 'Typical-Turn-Off-Delay-Time' of 19 ns This product has a 6.5 ns. Qg-Gate-Charge is 7 nC. This product features a 1 S of 500 S for high performance. This product operates in Enhancement channel mode for optimal performance.
Image shown is a representation only. Exact specifications should be obtained from the product data sheet.

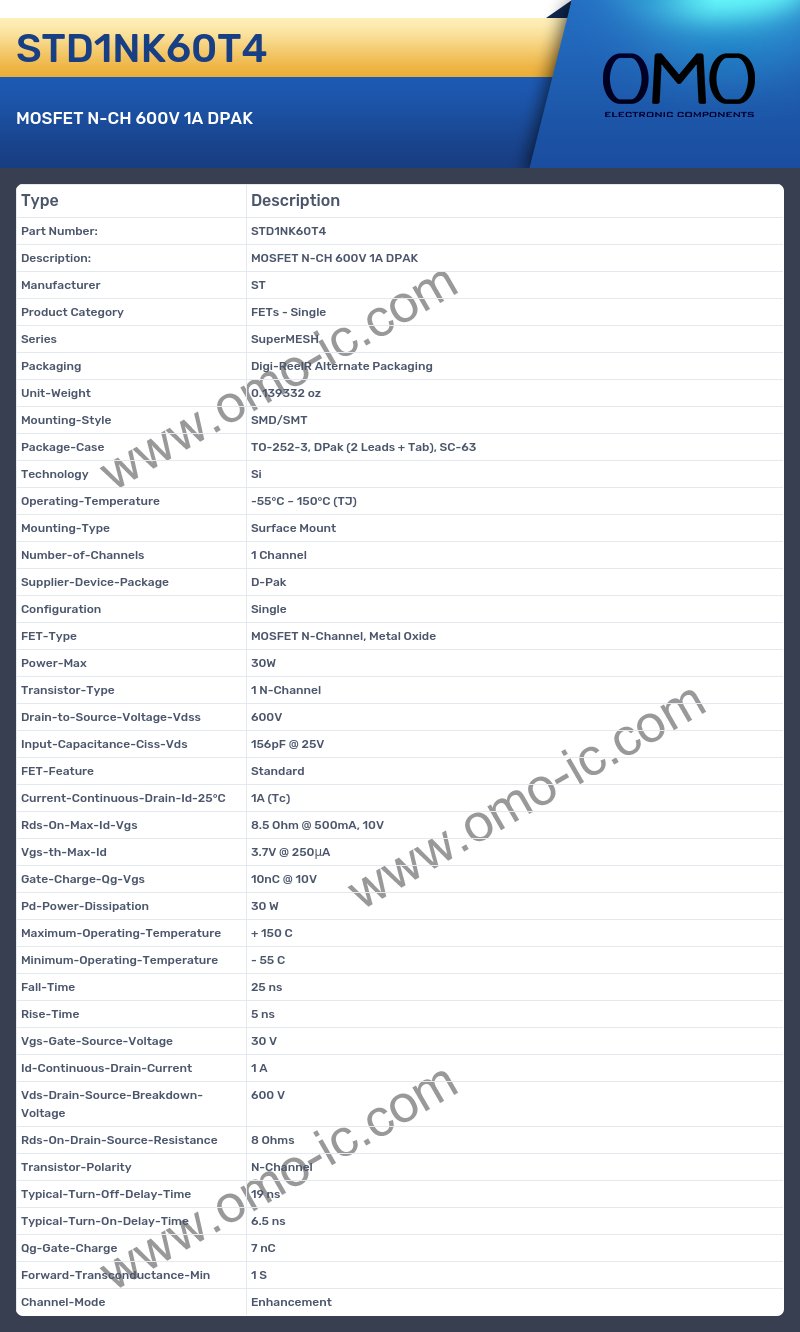

STD1NK60T4 Specifications
A: What is the Series of the product?
Q: The Series of the product is SuperMESH.
A: At what frequency does the Packaging?
Q: The product Packaging is Digi-ReelR Alternate Packaging.
A: At what frequency does the Unit-Weight?
Q: The product Unit-Weight is 0.139332 oz.
A: At what frequency does the Mounting-Style?
Q: The product Mounting-Style is SMD/SMT.
A: What is the Package-Case of the product?
Q: The Package-Case of the product is TO-252-3, DPak (2 Leads + Tab), SC-63.
A: What is the Technology of the product?
Q: The Technology of the product is Si.
A: At what frequency does the Operating-Temperature?
Q: The product Operating-Temperature is -55°C ~ 150°C (TJ).
A: Is the cutoff frequency of the product Mounting-Type?
Q: Yes, the product's Mounting-Type is indeed Surface Mount
A: At what frequency does the Number-of-Channels?
Q: The product Number-of-Channels is 1 Channel.
A: Is the cutoff frequency of the product Supplier-Device-Package?
Q: Yes, the product's Supplier-Device-Package is indeed D-Pak
A: At what frequency does the Configuration?
Q: The product Configuration is Single.
A: Is the cutoff frequency of the product FET-Type?
Q: Yes, the product's FET-Type is indeed MOSFET N-Channel, Metal Oxide
A: At what frequency does the Transistor-Type?
Q: The product Transistor-Type is 1 N-Channel.
A: What is the Drain-to-Source-Voltage-Vdss of the product?
Q: The Drain-to-Source-Voltage-Vdss of the product is 600V.
A: Is the cutoff frequency of the product Input-Capacitance-Ciss-Vds?
Q: Yes, the product's Input-Capacitance-Ciss-Vds is indeed 156pF @ 25V
A: At what frequency does the FET-Feature?
Q: The product FET-Feature is Standard.
A: Is the cutoff frequency of the product Current-Continuous-Drain-Id-25°C?
Q: Yes, the product's Current-Continuous-Drain-Id-25°C is indeed 1A (Tc)
A: At what frequency does the Rds-On-Max-Id-Vgs?
Q: The product Rds-On-Max-Id-Vgs is 8.5 Ohm @ 500mA, 10V.
A: Is the cutoff frequency of the product Pd-Power-Dissipation?
Q: Yes, the product's Pd-Power-Dissipation is indeed 30 W
A: At what frequency does the Maximum-Operating-Temperature?
Q: The product Maximum-Operating-Temperature is + 150 C.
A: At what frequency does the Minimum-Operating-Temperature?
Q: The product Minimum-Operating-Temperature is - 55 C.
A: What is the Fall-Time of the product?
Q: The Fall-Time of the product is 25 ns.
A: At what frequency does the Rise-Time?
Q: The product Rise-Time is 5 ns.
A: At what frequency does the Vgs-Gate-Source-Voltage?
Q: The product Vgs-Gate-Source-Voltage is 30 V.
A: Is the cutoff frequency of the product Id-Continuous-Drain-Current?
Q: Yes, the product's Id-Continuous-Drain-Current is indeed 1 A
A: At what frequency does the Vds-Drain-Source-Breakdown-Voltage?
Q: The product Vds-Drain-Source-Breakdown-Voltage is 600 V.
A: At what frequency does the Rds-On-Drain-Source-Resistance?
Q: The product Rds-On-Drain-Source-Resistance is 8 Ohms.
A: What is the Transistor-Polarity of the product?
Q: The Transistor-Polarity of the product is N-Channel.
A: What is the Typical-Turn-Off-Delay-Time of the product?
Q: The Typical-Turn-Off-Delay-Time of the product is 19 ns.
A: What is the Typical-Turn-On-Delay-Time of the product?
Q: The Typical-Turn-On-Delay-Time of the product is 6.5 ns.
A: Is the cutoff frequency of the product Qg-Gate-Charge?
Q: Yes, the product's Qg-Gate-Charge is indeed 7 nC
A: Is the cutoff frequency of the product Forward-Transconductance-Min?
Q: Yes, the product's Forward-Transconductance-Min is indeed 1 S
A: Is the cutoff frequency of the product Channel-Mode?
Q: Yes, the product's Channel-Mode is indeed Enhancement
