STD13NM60N

STD13NM60N Overview

Product belongs to the MDmesh II series. Digi-ReelR Alternate Packaging is the packaging method for this product Weight of 0.139332 oz SMD/SMT Mounting-Style TO-252-3, DPak (2 Leads + Tab), SC-63 Si is the technology used. Operational temperature range: 150°C (TJ) Surface Mount mounting type Number of channels: 1 Channel Supplier device package: D-Pak Configuration Single This product uses an MOSFET N-Channel, Metal Oxide FET-Type transistor. Transistor type: 1 N-Channel 600V This product has an 790pF @ 50V value of 300pF @ 25V. This product's Standard. 11A (Tc) continuous drain-ID current at 25°C; This product has an 360 mOhm @ 5.5A, 10V of 12 Ohm @ 150mA, 0V. Power-off control: 90 W Maximum operating temperature of + 150 C Minimum operating temperature: - 55 C This product has a 10 ns of 16 ns. This product has a 8 ns of 16 ns. This product's 25 V. The ID of continuous drain current is 11 A. This product has a Vds-Drain-Source-Breakdown-Voltageof 600 V. The 360 mOhms for this product is 12 Ohms. The transistor polarity is N-Channel. 'Typical-Turn-Off-Delay-Time' of 30 ns This product has a 3 ns. This product operates in Enhancement channel mode for optimal performance.

STD13NM60N Image

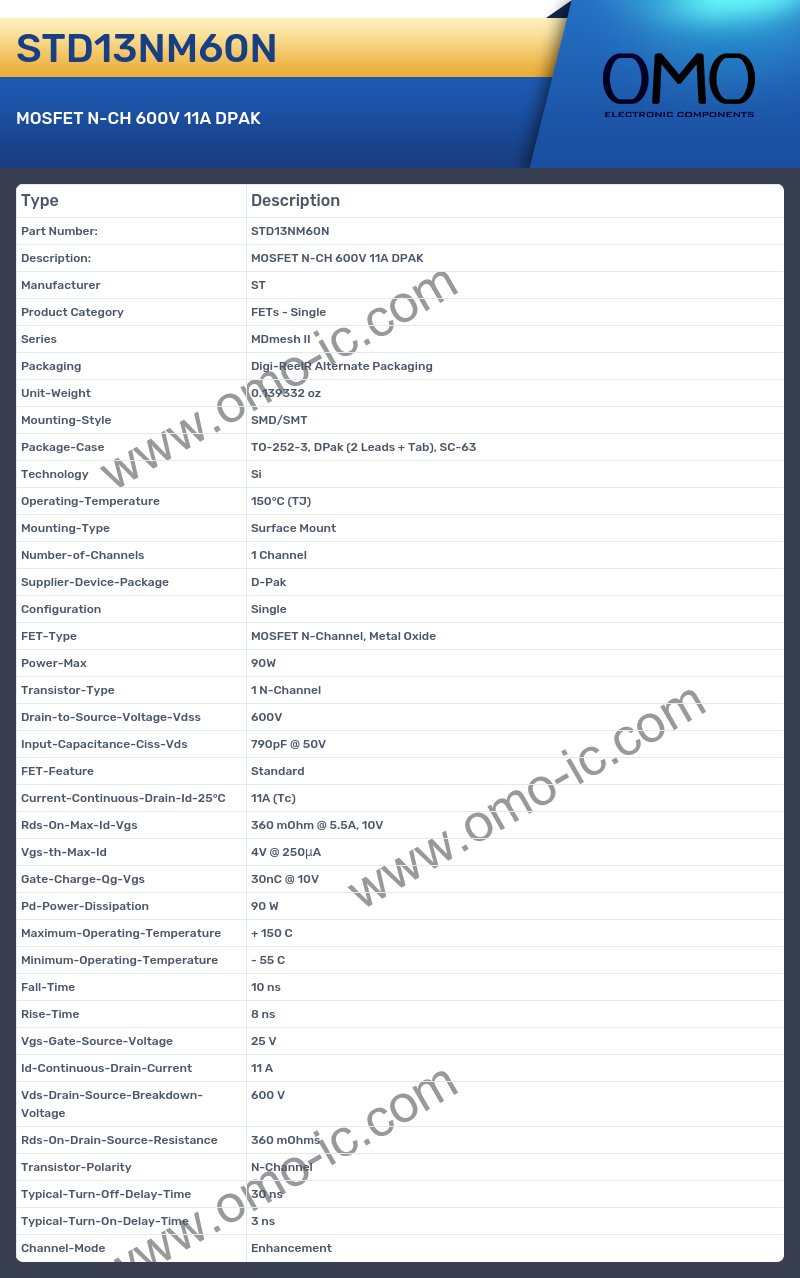

STD13NM60N Specifications

• Manufacturer ST
• Product Category FETs - Single
• Series MDmesh II
• Packaging Digi-ReelR Alternate Packaging
• Unit-Weight 0.139332 oz
• Mounting-Style SMD/SMT
• Package-Case TO-252-3, DPak (2 Leads + Tab), SC-63
• Technology Si
• Operating-Temperature 150°C (TJ)
• Mounting-Type Surface Mount
• Number-of-Channels 1 Channel
• Supplier-Device-Package D-Pak
• Configuration Single
• FET-Type MOSFET N-Channel, Metal Oxide
• Power-Max 90W
• Transistor-Type 1 N-Channel
• Drain-to-Source-Voltage-Vdss 600V
• Input-Capacitance-Ciss-Vds 790pF @ 50V
• FET-Feature Standard
• Current-Continuous-Drain-Id-25°C 11A (Tc)
• Rds-On-Max-Id-Vgs 360 mOhm @ 5.5A, 10V
• Vgs-th-Max-Id 4V @ 250μA
• Gate-Charge-Qg-Vgs 30nC @ 10V
• Pd-Power-Dissipation 90 W
• Maximum-Operating-Temperature + 150 C
• Minimum-Operating-Temperature - 55 C
• Fall-Time 10 ns
• Rise-Time 8 ns
• Vgs-Gate-Source-Voltage 25 V
• Id-Continuous-Drain-Current 11 A
• Vds-Drain-Source-Breakdown-Voltage 600 V
• Rds-On-Drain-Source-Resistance 360 mOhms
• Transistor-Polarity N-Channel
• Typical-Turn-Off-Delay-Time 30 ns
• Typical-Turn-On-Delay-Time 3 ns
• Channel-Mode Enhancement
