ST1L08SPUR Overview

Product belongs to the ST1L08 series. This product is categorized as LDO Regulators Type: Ultra Low Dropout Voltage Digi-ReelR Alternate Packaging is the packaging method for this product SMD/SMT Mounting-Style DFN-EP-8 Operational temperature range: -40°C ~ 125°C Surface Mount mounting type Output-Type: Adjustable Supplier device package: 8-DFN (2x3) Tolerance of 2 % 1 V ~ 5.5 V voltage input Number-of-Outputs: 1 Output Output voltage: 0.5 V ~ 4 V Positive Adjustable regulator topology The product has 1 of 1. Maximum operating temperature of + 125 C Minimum operating temperature: - 40 C Output voltage: Adj 200 nA is 92 nA. Maximum Input Voltage: 5.5 V Output current: 800 mA The product's 1 V is 5.1 V. Load regulation is 0.0002 % / mA. Input bias current of 150 uA This product has a 150 uA of 7 mA, making it ideal for low-power applications. The 70 mV. The maximum 120 mV is 360 mV. This product's 0.002 %/V is 0.01 %/V. The product's 80 dB is -20 dB.

ST1L08SPUR Image

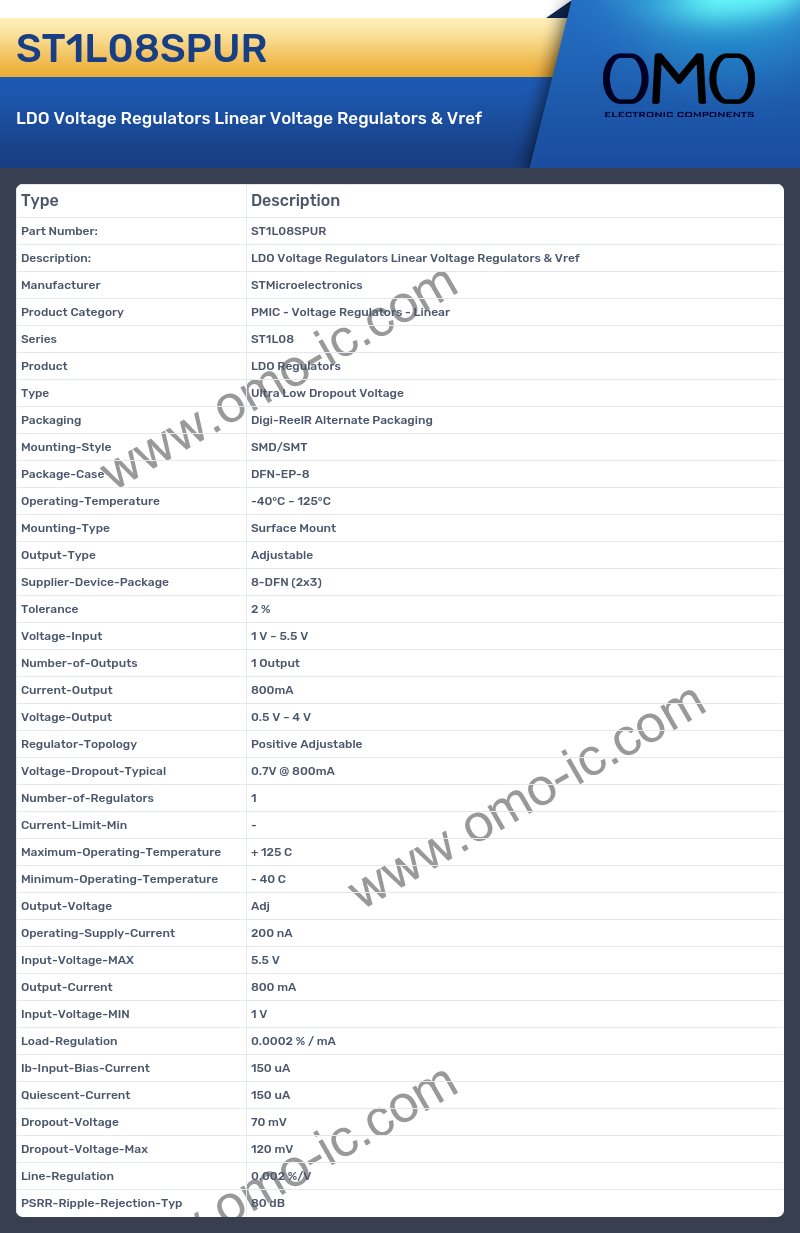

ST1L08SPUR Specifications

• Manufacturer STMicroelectronics
• Product Category PMIC - Voltage Regulators - Linear
• Series ST1L08
• Product LDO Regulators
• Type Ultra Low Dropout Voltage
• Packaging Digi-ReelR Alternate Packaging
• Mounting-Style SMD/SMT
• Package-Case DFN-EP-8
• Operating-Temperature -40°C ~ 125°C
• Mounting-Type Surface Mount
• Output-Type Adjustable
• Supplier-Device-Package 8-DFN (2x3)
• Tolerance 2 %
• Voltage-Input 1 V ~ 5.5 V
• Number-of-Outputs 1 Output
• Current-Output 800mA
• Voltage-Output 0.5 V ~ 4 V
• Regulator-Topology Positive Adjustable
• Voltage-Dropout-Typical 0.7V @ 800mA
• Number-of-Regulators 1
• Current-Limit-Min -
• Maximum-Operating-Temperature + 125 C
• Minimum-Operating-Temperature - 40 C
• Output-Voltage Adj
• Operating-Supply-Current 200 nA
• Input-Voltage-MAX 5.5 V
• Output-Current 800 mA
• Input-Voltage-MIN 1 V
• Load-Regulation 0.0002 % / mA
• Ib-Input-Bias-Current 150 uA
• Quiescent-Current 150 uA
• Dropout-Voltage 70 mV
• Dropout-Voltage-Max 120 mV
• Line-Regulation 0.002 %/V
• PSRR-Ripple-Rejection-Typ 80 dB
