ST13009

ST13009 Overview

Product belongs to the 500V to 1000V Transistors series. Tube is the packaging method for this product Weight of 0.081130 oz Through Hole Mounting-Style TO-220 Configuration Single Power-off control: 100000 mW Maximum operating temperature of + 150 C Minimum operating temperature: - 65 C Rated VCEO up to 400 V The transistor polarity is NPN. The 700 V voltage rating is 40 V. 12 V rating of 5 V Max DC collector current: 12 A Minimum hfe for DC collector-base gain is 10.

ST13009 Image

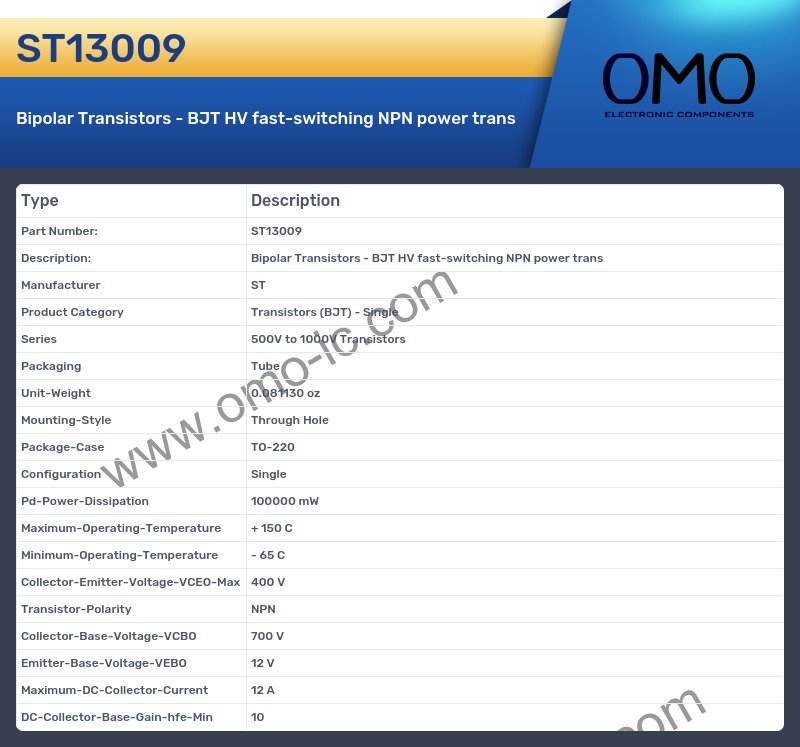

ST13009 Specifications

• Manufacturer ST
• Product Category Transistors (BJT) - Single
• Series 500V to 1000V Transistors
• Packaging Tube
• Unit-Weight 0.081130 oz
• Mounting-Style Through Hole
• Package-Case TO-220
• Configuration Single
• Pd-Power-Dissipation 100000 mW
• Maximum-Operating-Temperature + 150 C
• Minimum-Operating-Temperature - 65 C
• Collector-Emitter-Voltage-VCEO-Max 400 V
• Transistor-Polarity NPN
• Collector-Base-Voltage-VCBO 700 V
• Emitter-Base-Voltage-VEBO 12 V
• Maximum-DC-Collector-Current 12 A
• DC-Collector-Base-Gain-hfe-Min 10
