SN75176BP

SN75176BP Overview

Product belongs to the SN75176B series. This product is categorized as RS-422/RS-485 Transceivers Type: Transceiver Tube Alternate Packaging is the packaging method for this product Weight of 0.015535 oz Through Hole Mounting-Style PDIP-8 Operational temperature range: 0°C ~ 70°C Through Hole mounting type Product function is Transceiver. Voltage Supply Range: 4.75 V ~ 5.25 V Supplier device package: 8-PDIP This product has a 2016/1/1 number of drivers and receivers. Power-off control: Shutdown Maximum operating temperature of + 70 C Minimum operating temperature: 0 C This product operates at a 5 V supply voltage for reliable performance. 70 mA is 92 nA. Maximum supply voltage of 5.25 V Minimum supply voltage is 4.75 V Number-of-Drivers: 1 Driver The product has 1 Receiver receivers.

SN75176BP Image

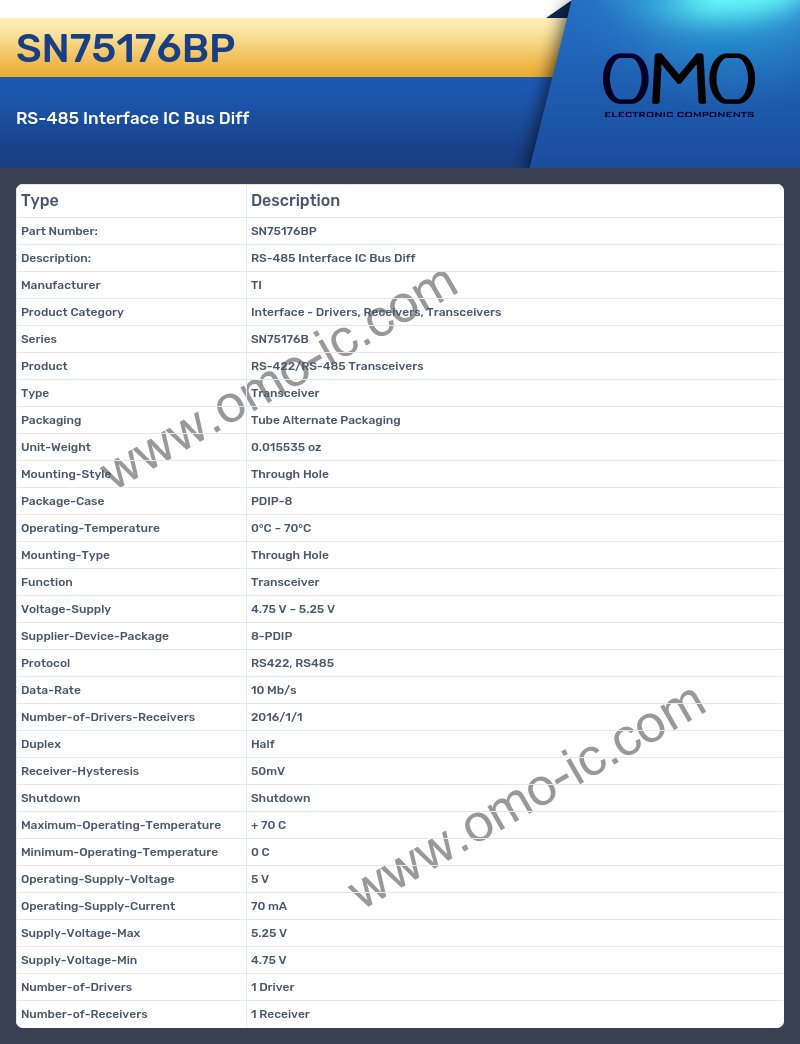

SN75176BP Specifications

• Manufacturer TI
• Product Category Interface - Drivers, Receivers, Transceivers
• Series SN75176B
• Product RS-422/RS-485 Transceivers
• Type Transceiver
• Packaging Tube Alternate Packaging
• Unit-Weight 0.015535 oz
• Mounting-Style Through Hole
• Package-Case PDIP-8
• Operating-Temperature 0°C ~ 70°C
• Mounting-Type Through Hole
• Function Transceiver
• Voltage-Supply 4.75 V ~ 5.25 V
• Supplier-Device-Package 8-PDIP
• Protocol RS422, RS485
• Data-Rate 10 Mb/s
• Number-of-Drivers-Receivers 2016/1/1
• Duplex Half
• Receiver-Hysteresis 50mV
• Shutdown Shutdown
• Maximum-Operating-Temperature + 70 C
• Minimum-Operating-Temperature 0 C
• Operating-Supply-Voltage 5 V
• Operating-Supply-Current 70 mA
• Supply-Voltage-Max 5.25 V
• Supply-Voltage-Min 4.75 V
• Number-of-Drivers 1 Driver
• Number-of-Receivers 1 Receiver
