| Mfr. #: | SN74LV125AD |
|---|---|
| निर्माता: | Texas Instruments |
| विवरण: | Buffers & Line Drivers Tri-State Quad Bus |
| जीवन चक्र: | यस निर्माताबाट नयाँ। |
| डाटा पाना: | SN74LV125AD डाटा पाना |
Product belongs to the 74LV series. Tube Alternate Packaging is the packaging method for this product Weight of 0.004564 oz SMD/SMT Mounting-Style SOIC-14 Operational temperature range: -40°C ~ 85°C Surface Mount mounting type Output-Type: 3-State Number of channels: 4 Voltage Supply Range: 2 V ~ 5.5 V Supplier device package: 14-SOIC 4 element Buffer/Line Driver, Non-Inverting logic type 1 bits per element Maximum operating temperature of + 85 C Minimum operating temperature: - 40 C Polarity: Non-Inverting 20 uA is 92 nA. Maximum supply voltage of 5.5 V Minimum supply voltage is 2 V LV logic type 16.5 ns at 2.5 V 11.5 ns at 3.3 V 7.5 ns at 5 V is 23 microseconds. High-Level-Output-Current of - 16 mA 16 mA low-level output current Number-of-Input-Lines: 4 Input Number-of-Output-Lines: 4 Output
Image shown is a representation only. Exact specifications should be obtained from the product data sheet.

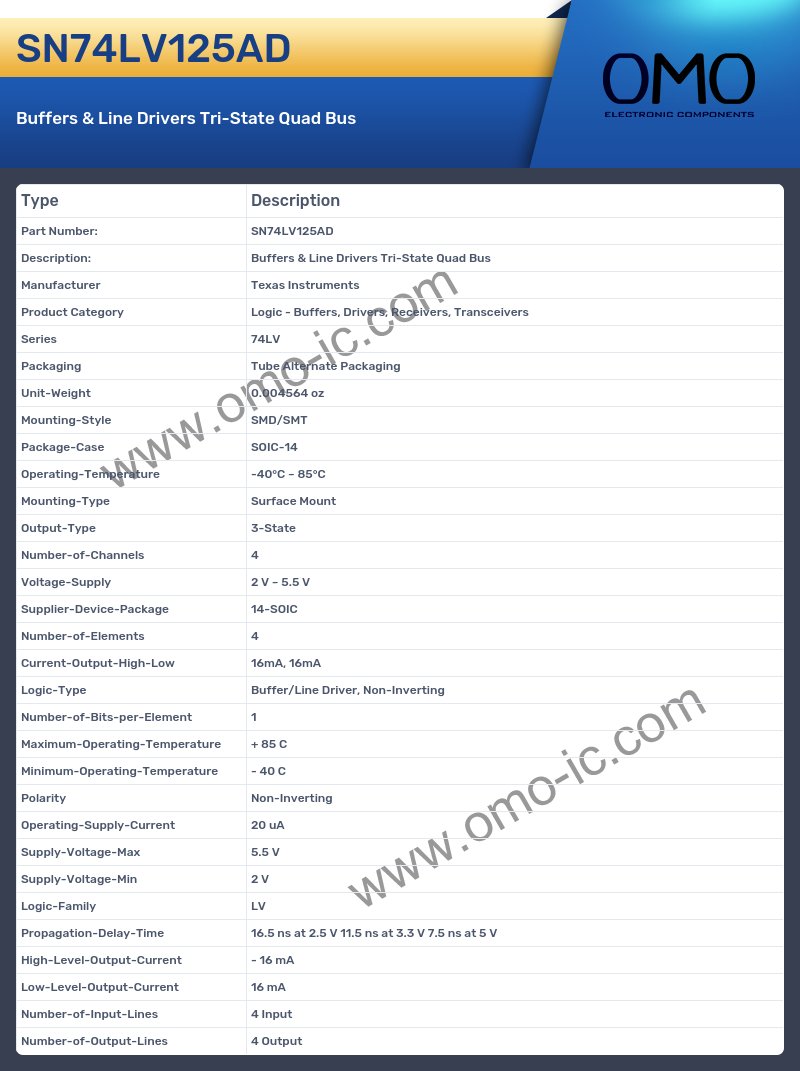

SN74LV125AD Specifications
