| Mfr. #: | SN74LS540DW |
|---|---|
| निर्माता: | Texas Instruments |
| विवरण: | Buffers & Line Drivers Octal w/Tri-St Out |
| जीवन चक्र: | यस निर्माताबाट नयाँ। |
| डाटा पाना: | SN74LS540DW डाटा पाना |
Product belongs to the 74LS series. Tube Alternate Packaging is the packaging method for this product Weight of 0.017662 oz SMD/SMT Mounting-Style SOIC-20 Operational temperature range: 0°C ~ 70°C Surface Mount mounting type Output-Type: 3-State Number of channels: 8 Voltage Supply Range: 4.75 V ~ 5.25 V Supplier device package: 20-SOIC 1 element Buffer/Line Driver, Inverting logic type 8 bits per element Maximum operating temperature of + 70 C Minimum operating temperature: 0 C Polarity: Inverting 45 uA is 92 nA. Maximum supply voltage of 5.25 V Minimum supply voltage is 4.75 V LS logic type 15 ns at 5 V is 23 microseconds. High-Level-Output-Current of - 15 mA 24 mA low-level output current Number-of-Input-Lines: 8 Input Number-of-Output-Lines: 8 Output
Image shown is a representation only. Exact specifications should be obtained from the product data sheet.

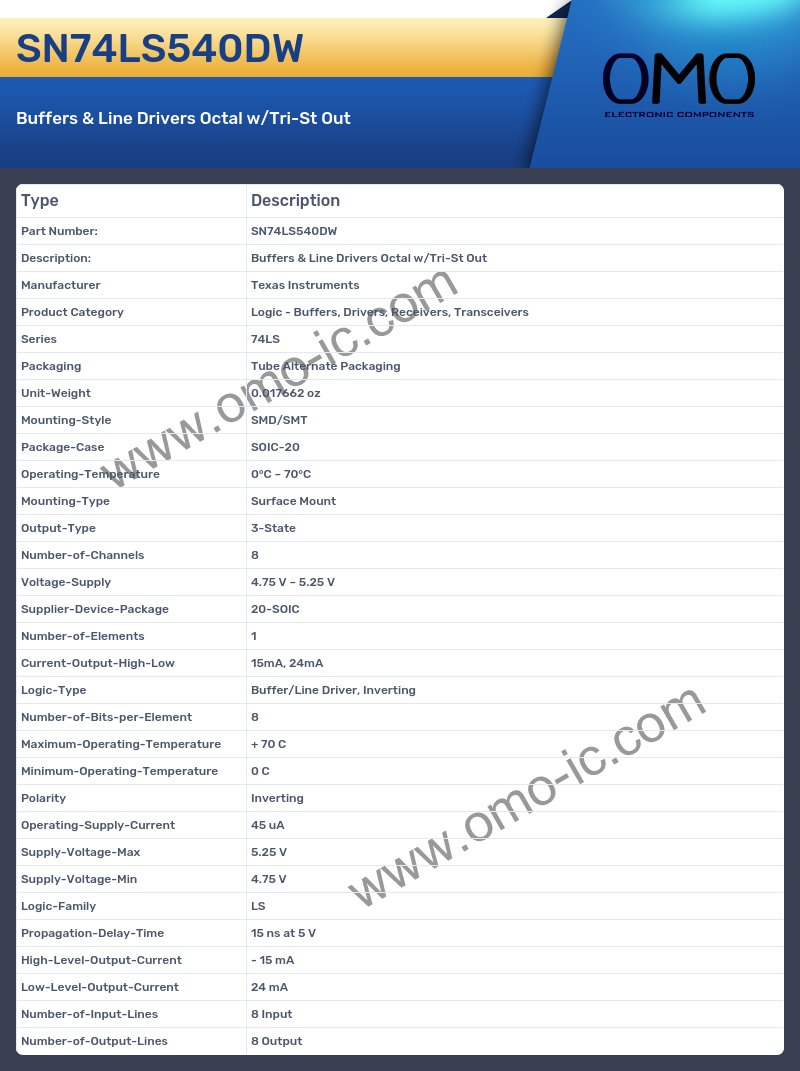

SN74LS540DW Specifications
