SN74LS375N

SN74LS375N Overview

Product belongs to the 74LS series. Tube Alternate Packaging is the packaging method for this product Weight of 0.033570 oz Through Hole Mounting-Style PDIP-16 Operational temperature range: 0°C ~ 70°C Through Hole mounting type Output-Type: Differential Number of channels: 4 Channels Voltage Supply Range: 4.75 V ~ 5.25 V Supplier device package: 16-PDIP 2 Circuit is 8. Circuit type: 1899/12/30 1:01:00 D-Type Transparent Latch logic type 4 Independent Circuit The 12ns Delay-Time-Propagation. Maximum operating temperature of + 70 C Minimum operating temperature: 0 C Polarity: Inverting/Non-Inverting 12 mA is 92 nA. Maximum supply voltage of 5.25 V Minimum supply voltage is 4.75 V LS logic type 27 ns at 5 V is 23 microseconds. High-Level-Output-Current of - 400 uA 32 mA low-level output current Number-of-Input-Lines: 4 Line Number-of-Output-Lines: 4 Line

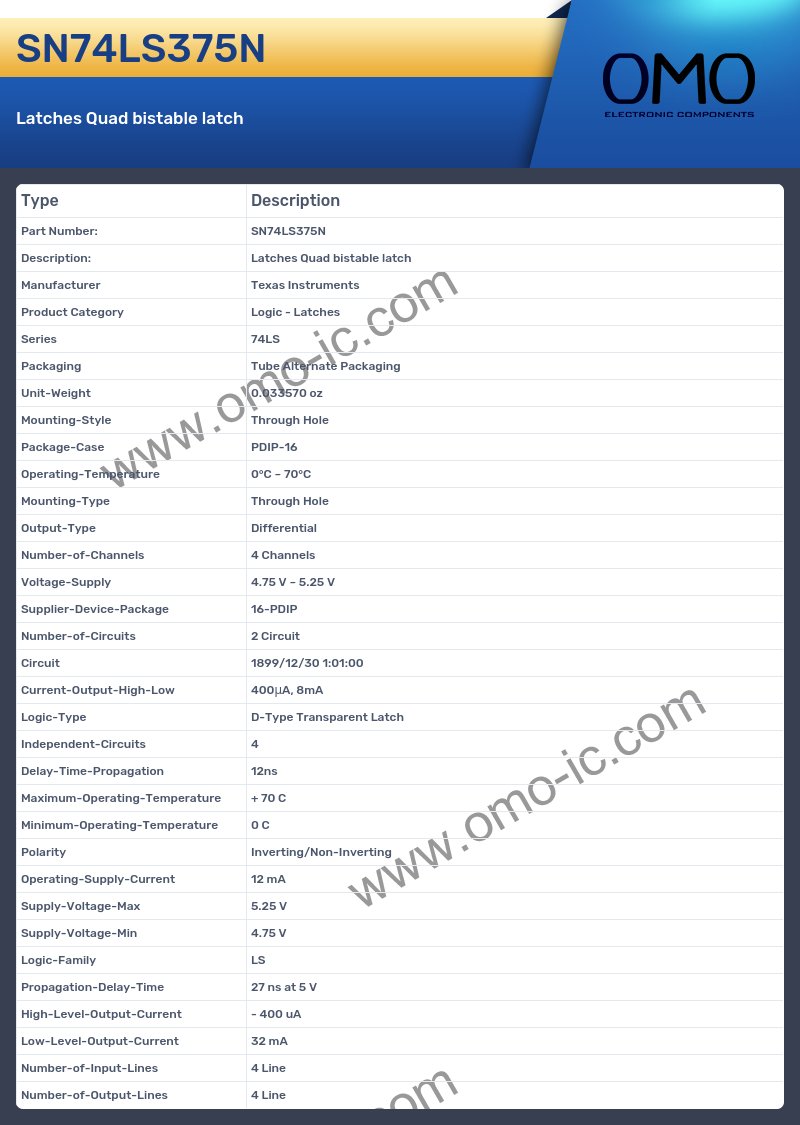

SN74LS375N Image

SN74LS375N Specifications

• Manufacturer Texas Instruments
• Product Category Logic - Latches
• Series 74LS
• Packaging Tube Alternate Packaging
• Unit-Weight 0.033570 oz
• Mounting-Style Through Hole
• Package-Case PDIP-16
• Operating-Temperature 0°C ~ 70°C
• Mounting-Type Through Hole
• Output-Type Differential
• Number-of-Channels 4 Channels
• Voltage-Supply 4.75 V ~ 5.25 V
• Supplier-Device-Package 16-PDIP
• Number-of-Circuits 2 Circuit
• Circuit 1899/12/30 1:01:00
• Current-Output-High-Low 400μA, 8mA
• Logic-Type D-Type Transparent Latch
• Independent-Circuits 4
• Delay-Time-Propagation 12ns
• Maximum-Operating-Temperature + 70 C
• Minimum-Operating-Temperature 0 C
• Polarity Inverting/Non-Inverting
• Operating-Supply-Current 12 mA
• Supply-Voltage-Max 5.25 V
• Supply-Voltage-Min 4.75 V
• Logic-Family LS
• Propagation-Delay-Time 27 ns at 5 V
• High-Level-Output-Current - 400 uA
• Low-Level-Output-Current 32 mA
• Number-of-Input-Lines 4 Line
• Number-of-Output-Lines 4 Line
