| Mfr. #: | SN74LS283D |
|---|---|
| निर्माता: | Texas Instruments |
| विवरण: | IC BIN FULL 4BIT ADD CAR 16-SOIC |
| जीवन चक्र: | यस निर्माताबाट नयाँ। |
| डाटा पाना: | SN74LS283D डाटा पाना |
Product belongs to the 74LS series. Tube is the packaging method for this product Weight of 0.004998 oz SMD/SMT Mounting-Style SOIC-16 Operational temperature range: 0°C ~ 70°C Surface Mount mounting type Product function is Binary Full Adder. Number of channels: 1 Channel Supplier device package: 16-SOIC 4 bits Binary Full Adder with Fast Carry logic type The 4.75 V ~ 5.25 V. Power-off control: 95 mW Maximum operating temperature of + 70 C Minimum operating temperature: 0 C This product operates at a 5 V supply voltage for reliable performance. Maximum supply voltage of 5.25 V Minimum supply voltage is 4.75 V LS logic type 24 ns is 23 microseconds. High-Level-Output-Current of - 0.4 mA 8 mA low-level output current
Image shown is a representation only. Exact specifications should be obtained from the product data sheet.

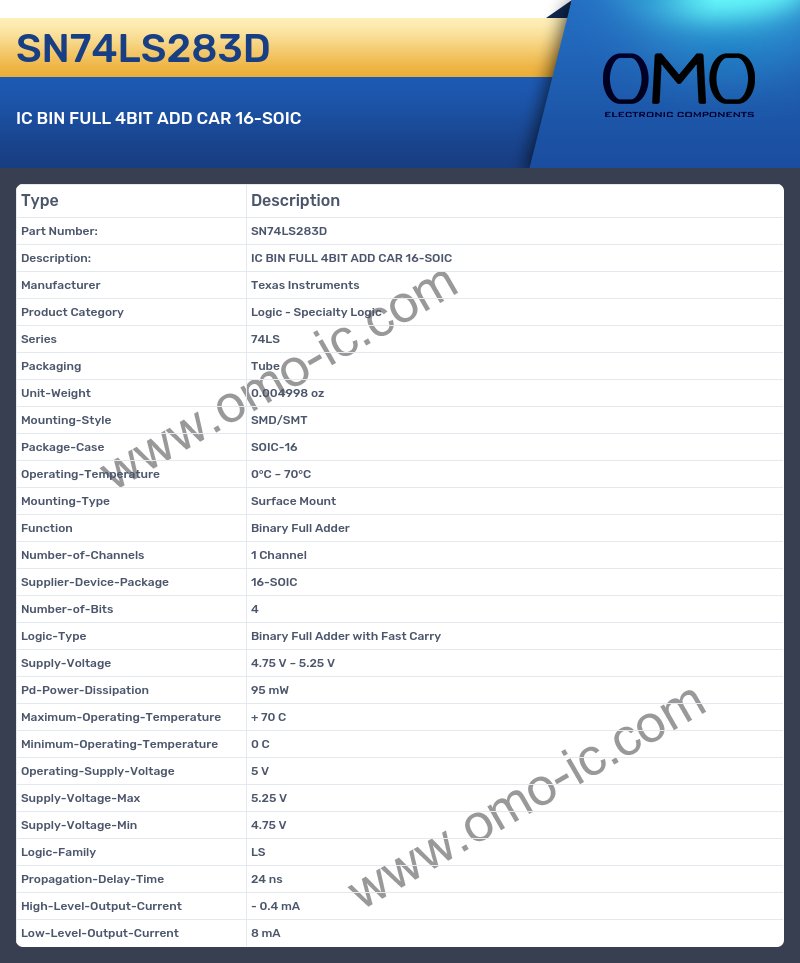

SN74LS283D Specifications
