SN74LS244DBR

SN74LS244DBR Overview

Product belongs to the 74LS series. Digi-ReelR Alternate Packaging is the packaging method for this product Weight of 0.005527 oz SMD/SMT Mounting-Style SSOP-20 Operational temperature range: 0°C ~ 70°C Surface Mount mounting type Output-Type: 3-State Number of channels: 8 Voltage Supply Range: 4.75 V ~ 5.25 V Supplier device package: 20-SSOP 2 element Buffer/Line Driver, Non-Inverting logic type 4 bits per element Maximum operating temperature of + 70 C Minimum operating temperature: 0 C Polarity: Non-Inverting 46 uA is 92 nA. Maximum supply voltage of 5.25 V Minimum supply voltage is 4.75 V LS logic type 18 ns at 5 V is 23 microseconds. High-Level-Output-Current of - 15 mA 24 mA low-level output current Number-of-Input-Lines: 8 Input Number-of-Output-Lines: 8 Output

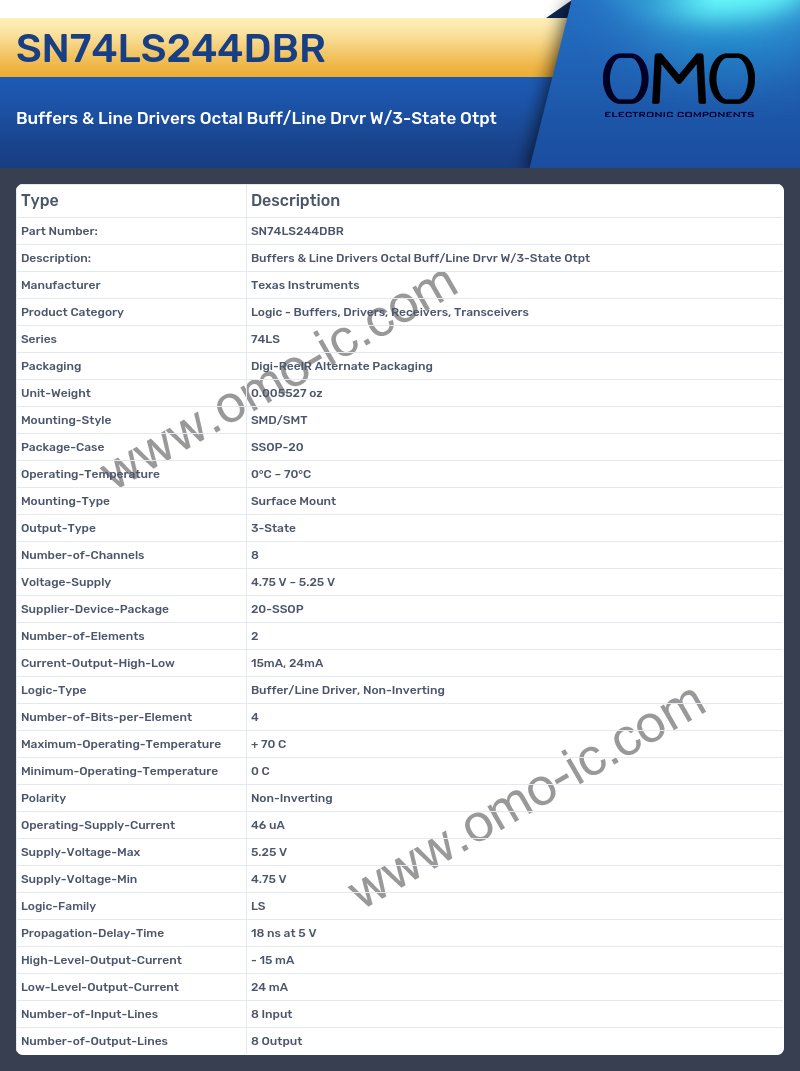

SN74LS244DBR Image

SN74LS244DBR Specifications

• Manufacturer Texas Instruments
• Product Category Logic - Buffers, Drivers, Receivers, Transceivers
• Series 74LS
• Packaging Digi-ReelR Alternate Packaging
• Unit-Weight 0.005527 oz
• Mounting-Style SMD/SMT
• Package-Case SSOP-20
• Operating-Temperature 0°C ~ 70°C
• Mounting-Type Surface Mount
• Output-Type 3-State
• Number-of-Channels 8
• Voltage-Supply 4.75 V ~ 5.25 V
• Supplier-Device-Package 20-SSOP
• Number-of-Elements 2
• Current-Output-High-Low 15mA, 24mA
• Logic-Type Buffer/Line Driver, Non-Inverting
• Number-of-Bits-per-Element 4
• Maximum-Operating-Temperature + 70 C
• Minimum-Operating-Temperature 0 C
• Polarity Non-Inverting
• Operating-Supply-Current 46 uA
• Supply-Voltage-Max 5.25 V
• Supply-Voltage-Min 4.75 V
• Logic-Family LS
• Propagation-Delay-Time 18 ns at 5 V
• High-Level-Output-Current - 15 mA
• Low-Level-Output-Current 24 mA
• Number-of-Input-Lines 8 Input
• Number-of-Output-Lines 8 Output
