SN74F27N

SN74F27N Overview

Product belongs to the 74F series. This product is categorized as Single-Function Gate Tube Alternate Packaging is the packaging method for this product Weight of 0.032734 oz Through Hole Mounting-Style Wide 0 C to + 70 C operating temperature range for diverse applications PDIP-14 Operational temperature range: 0°C ~ 70°C Through Hole mounting type Voltage Supply Range: 4.5 V ~ 5.5 V Supplier device package: 14-PDIP 3 is 8. 3 Gate is the number of gates included in this product. - maximum quiescent current. NOR Gate logic type 0.8V is a Logic-Level-Low; 2V is the Logic-Level-High Maximum operating temperature of + 70 C Minimum operating temperature: 0 C Maximum supply voltage of 5.5 V Minimum supply voltage is 4.5 V F logic type 5.5 ns is 23 microseconds. High-Level-Output-Current of - 20 mA 1 mA low-level output current Number-of-Input-Lines: 3 Input Number-of-Output-Lines: 1 Output NOR logic function

SN74F27N Image

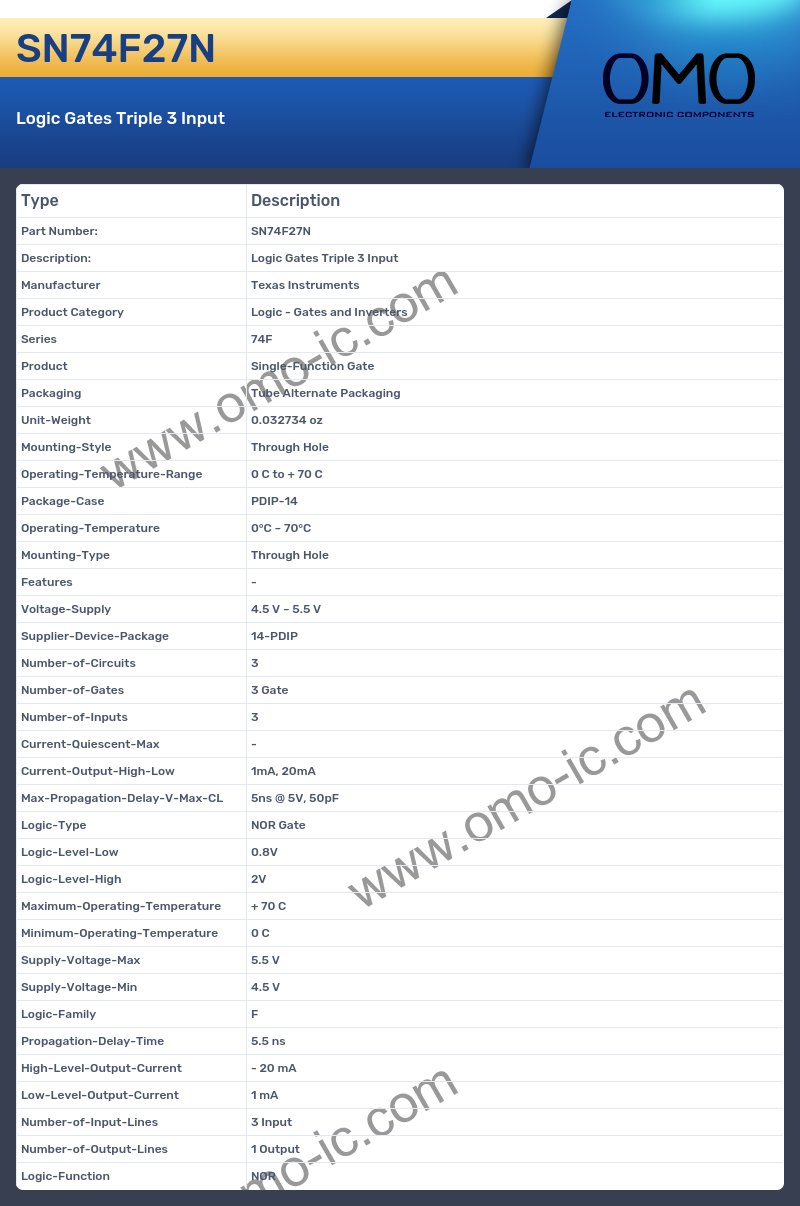

SN74F27N Specifications

• Manufacturer Texas Instruments
• Product Category Logic - Gates and Inverters
• Series 74F
• Product Single-Function Gate
• Packaging Tube Alternate Packaging
• Unit-Weight 0.032734 oz
• Mounting-Style Through Hole
• Operating-Temperature-Range 0 C to + 70 C
• Package-Case PDIP-14
• Operating-Temperature 0°C ~ 70°C
• Mounting-Type Through Hole
• Features -
• Voltage-Supply 4.5 V ~ 5.5 V
• Supplier-Device-Package 14-PDIP
• Number-of-Circuits 3
• Number-of-Gates 3 Gate
• Number-of-Inputs 3
• Current-Quiescent-Max -
• Current-Output-High-Low 1mA, 20mA
• Max-Propagation-Delay-V-Max-CL 5ns @ 5V, 50pF
• Logic-Type NOR Gate
• Logic-Level-Low 0.8V
• Logic-Level-High 2V
• Maximum-Operating-Temperature + 70 C
• Minimum-Operating-Temperature 0 C
• Supply-Voltage-Max 5.5 V
• Supply-Voltage-Min 4.5 V
• Logic-Family F
• Propagation-Delay-Time 5.5 ns
• High-Level-Output-Current - 20 mA
• Low-Level-Output-Current 1 mA
• Number-of-Input-Lines 3 Input
• Number-of-Output-Lines 1 Output
• Logic-Function NOR
