SN74AUP1G02DPWR

SN74AUP1G02DPWR Overview

Product belongs to the 74AUP series. This product is categorized as Single-Function Gate Digi-ReelR Alternate Packaging is the packaging method for this product SMD/SMT Mounting-Style Wide - 40 C to + 85 C operating temperature range for diverse applications X2SON-4 Operational temperature range: -40°C ~ 85°C Surface Mount mounting type Voltage Supply Range: 0.8 V ~ 3.6 V Supplier device package: 4-X2SON (0.80x0.80) 1 is 8. 1 Gate is the number of gates included in this product. 0.5μA maximum quiescent current. NOR Gate logic type 0.7 V ~ 0.9 V is a Logic-Level-Low; 1.6 V ~ 2 V is the Logic-Level-High Maximum operating temperature of + 85 C Minimum operating temperature: - 40 C Output voltage: 3.6 V Output current: 20 mA Maximum supply voltage of 3.6 V Minimum supply voltage is 0.8 V AUP logic type 4.7 ns is 23 microseconds. High-Level-Output-Current of - 4 mA 4 mA low-level output current Number-of-Input-Lines: 2 Input Number-of-Output-Lines: 1 Output NOR logic function

SN74AUP1G02DPWR Image

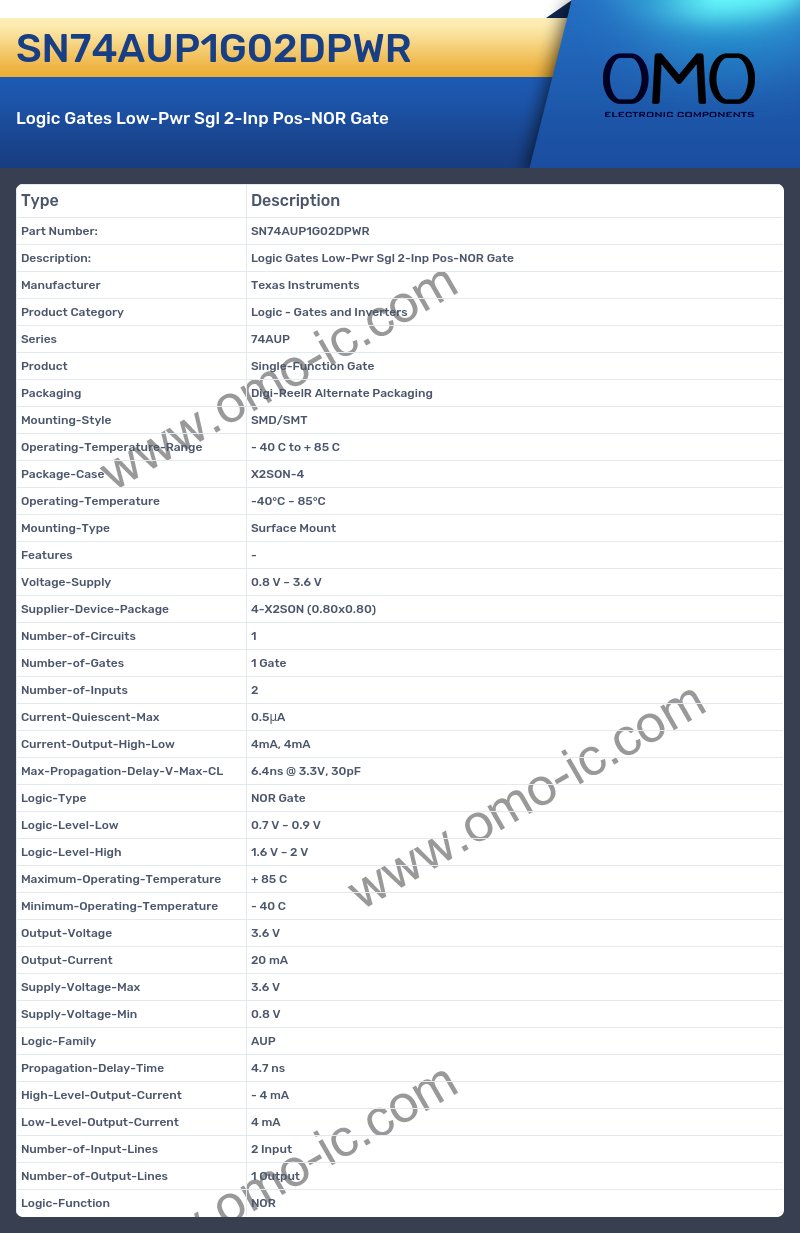

SN74AUP1G02DPWR Specifications

• Manufacturer Texas Instruments
• Product Category Logic - Gates and Inverters
• Series 74AUP
• Product Single-Function Gate
• Packaging Digi-ReelR Alternate Packaging
• Mounting-Style SMD/SMT
• Operating-Temperature-Range - 40 C to + 85 C
• Package-Case X2SON-4
• Operating-Temperature -40°C ~ 85°C
• Mounting-Type Surface Mount
• Features -
• Voltage-Supply 0.8 V ~ 3.6 V
• Supplier-Device-Package 4-X2SON (0.80x0.80)
• Number-of-Circuits 1
• Number-of-Gates 1 Gate
• Number-of-Inputs 2
• Current-Quiescent-Max 0.5μA
• Current-Output-High-Low 4mA, 4mA
• Max-Propagation-Delay-V-Max-CL 6.4ns @ 3.3V, 30pF
• Logic-Type NOR Gate
• Logic-Level-Low 0.7 V ~ 0.9 V
• Logic-Level-High 1.6 V ~ 2 V
• Maximum-Operating-Temperature + 85 C
• Minimum-Operating-Temperature - 40 C
• Output-Voltage 3.6 V
• Output-Current 20 mA
• Supply-Voltage-Max 3.6 V
• Supply-Voltage-Min 0.8 V
• Logic-Family AUP
• Propagation-Delay-Time 4.7 ns
• High-Level-Output-Current - 4 mA
• Low-Level-Output-Current 4 mA
• Number-of-Input-Lines 2 Input
• Number-of-Output-Lines 1 Output
• Logic-Function NOR
