SN74AHC32MDREP

SN74AHC32MDREP Overview

Product belongs to the 74AHC series. This product is categorized as Single-Function Gate Digi-ReelR Alternate Packaging is the packaging method for this product Weight of 0.004318 oz SMD/SMT Mounting-Style Wide - 55 C to + 125 C operating temperature range for diverse applications SOIC-14 Operational temperature range: -55°C ~ 125°C Surface Mount mounting type Voltage Supply Range: 2 V ~ 5.5 V Supplier device package: 14-SOIC 4 is 8. 4 Gate is the number of gates included in this product. 2μA maximum quiescent current. OR Gate logic type 0.5 V ~ 1.65 V is a Logic-Level-Low; 1.5 V ~ 3.85 V is the Logic-Level-High Maximum operating temperature of + 125 C Minimum operating temperature: - 55 C This product is also known as V62/03651-01YE and can be referred to by either part number. Maximum supply voltage of 5.5 V Minimum supply voltage is 2 V AHC logic type 8.5 ns is 23 microseconds. High-Level-Output-Current of - 8 mA 8 mA low-level output current Number-of-Input-Lines: 2 Input Number-of-Output-Lines: 1 Output OR logic function

SN74AHC32MDREP Image

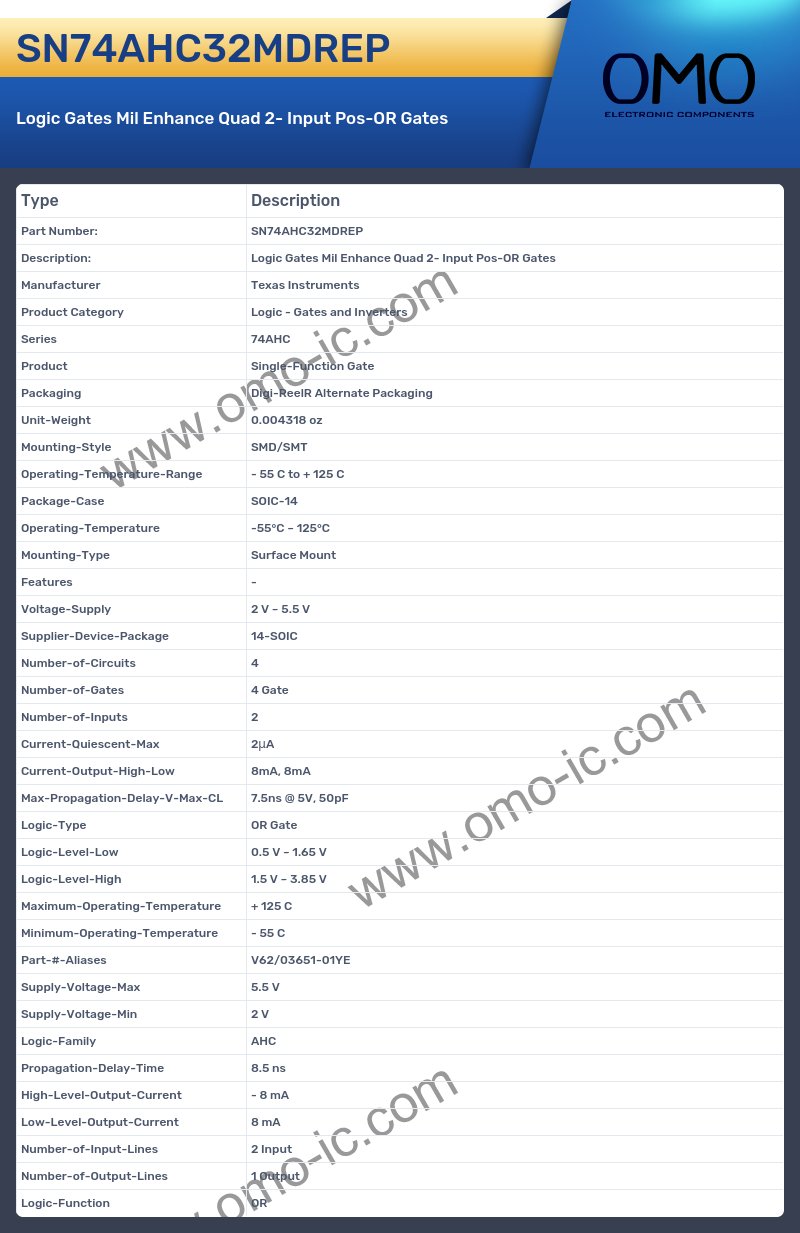

SN74AHC32MDREP Specifications

• Manufacturer Texas Instruments
• Product Category Logic - Gates and Inverters
• Series 74AHC
• Product Single-Function Gate
• Packaging Digi-ReelR Alternate Packaging
• Unit-Weight 0.004318 oz
• Mounting-Style SMD/SMT
• Operating-Temperature-Range - 55 C to + 125 C
• Package-Case SOIC-14
• Operating-Temperature -55°C ~ 125°C
• Mounting-Type Surface Mount
• Features -
• Voltage-Supply 2 V ~ 5.5 V
• Supplier-Device-Package 14-SOIC
• Number-of-Circuits 4
• Number-of-Gates 4 Gate
• Number-of-Inputs 2
• Current-Quiescent-Max 2μA
• Current-Output-High-Low 8mA, 8mA
• Max-Propagation-Delay-V-Max-CL 7.5ns @ 5V, 50pF
• Logic-Type OR Gate
• Logic-Level-Low 0.5 V ~ 1.65 V
• Logic-Level-High 1.5 V ~ 3.85 V
• Maximum-Operating-Temperature + 125 C
• Minimum-Operating-Temperature - 55 C
• Part-#-Aliases V62/03651-01YE
• Supply-Voltage-Max 5.5 V
• Supply-Voltage-Min 2 V
• Logic-Family AHC
• Propagation-Delay-Time 8.5 ns
• High-Level-Output-Current - 8 mA
• Low-Level-Output-Current 8 mA
• Number-of-Input-Lines 2 Input
• Number-of-Output-Lines 1 Output
• Logic-Function OR
