SN7447ANE4

SN7447ANE4 Overview

Product belongs to the 7400 series. Type: Decoder Tube Alternate Packaging is the packaging method for this product Weight of 0.033570 oz Through Hole Mounting-Style PDIP-16 Operational temperature range: 0°C ~ 70°C Through Hole mounting type Voltage Supply Range: 4.75 V ~ 5.25 V Supplier device package: 16-PDIP Voltage supply source: Analog and digital Single Supply Circuit type: 1 x 4:1 1 Independent Circuit Maximum operating temperature of + 70 C Minimum operating temperature: 0 C This product operates at a 4.75 V to 5.25 V supply voltage for reliable performance. High-Level-Output-Current of - 0.2 mA 8 mA low-level output current

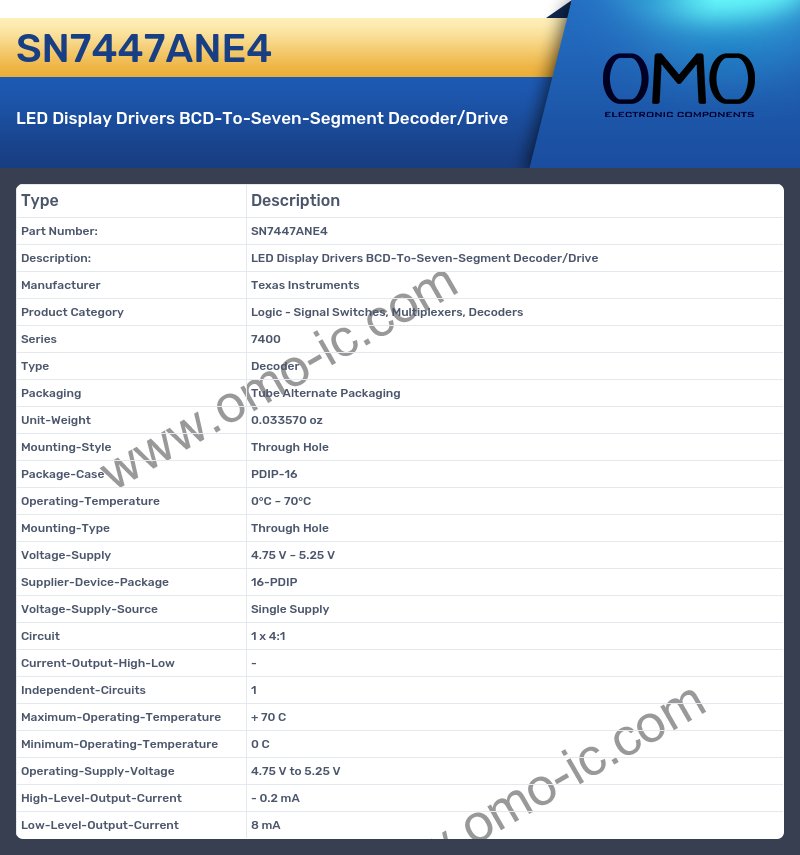

SN7447ANE4 Image

SN7447ANE4 Specifications

• Manufacturer Texas Instruments
• Product Category Logic - Signal Switches, Multiplexers, Decoders
• Series 7400
• Type Decoder
• Packaging Tube Alternate Packaging
• Unit-Weight 0.033570 oz
• Mounting-Style Through Hole
• Package-Case PDIP-16
• Operating-Temperature 0°C ~ 70°C
• Mounting-Type Through Hole
• Voltage-Supply 4.75 V ~ 5.25 V
• Supplier-Device-Package 16-PDIP
• Voltage-Supply-Source Single Supply
• Circuit 1 x 4:1
• Current-Output-High-Low -
• Independent-Circuits 1
• Maximum-Operating-Temperature + 70 C
• Minimum-Operating-Temperature 0 C
• Operating-Supply-Voltage 4.75 V to 5.25 V
• High-Level-Output-Current - 0.2 mA
• Low-Level-Output-Current 8 mA
