SN65LBC180AD

SN65LBC180AD Overview

Product belongs to the SN65LBC180A series. This product is categorized as RS-485 Transceivers Type: Transceiver Tube Alternate Packaging is the packaging method for this product Weight of 0.004318 oz SMD/SMT Mounting-Style SOIC-14 Operational temperature range: -40°C ~ 85°C Surface Mount mounting type Output-Type: Differential Product function is Transceiver. Voltage Supply Range: 4.75 V ~ 5.25 V Supplier device package: 14-SOIC This product has a 2016/1/1 number of drivers and receivers. Power-off control: Shutdown Power-off control: 950 mW Maximum operating temperature of + 85 C Minimum operating temperature: - 40 C This product operates at a 5 V supply voltage for reliable performance. Output voltage: 1.5 V 15 mA is 92 nA. Input Voltage Range: 5 V Output current: 10 uA Maximum supply voltage of 5.25 V Minimum supply voltage is 4.75 V Number-of-Drivers: 1 Driver The product has 1 Receiver receivers. 6 ns is 23 microseconds.

SN65LBC180AD Image

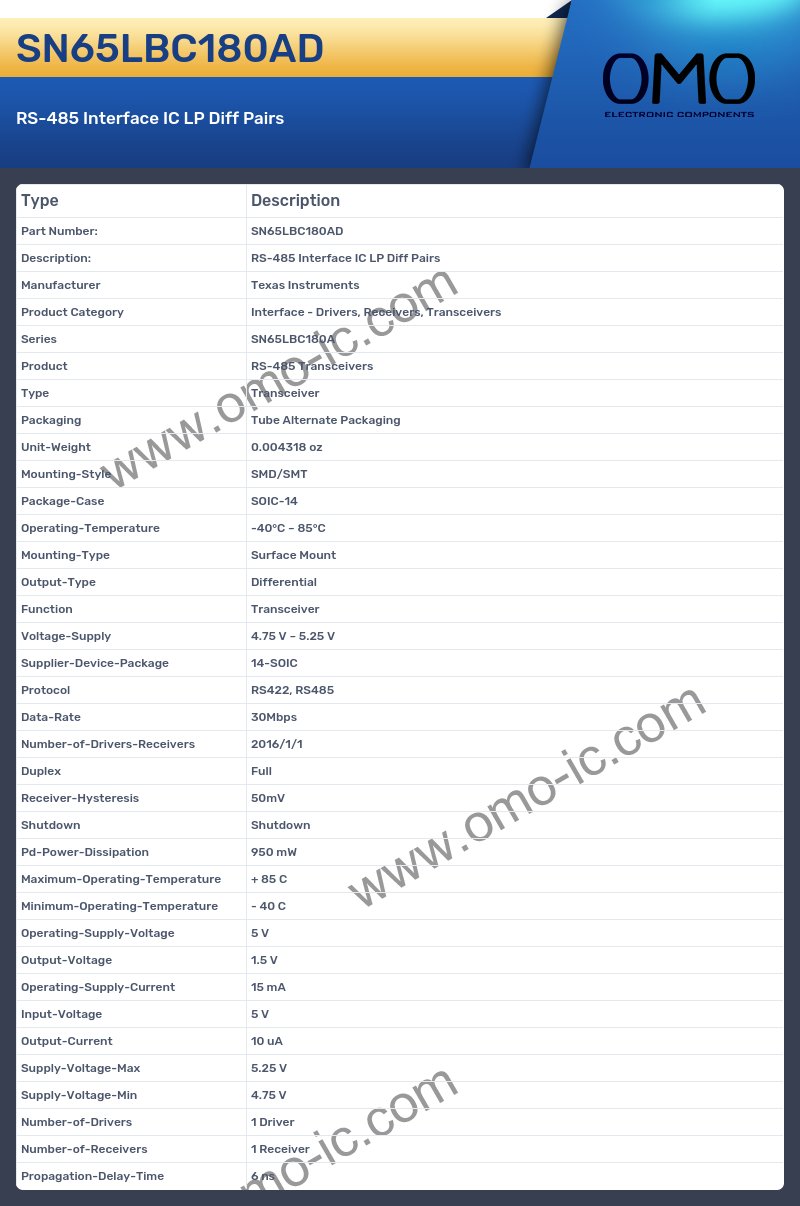

SN65LBC180AD Specifications

• Manufacturer Texas Instruments
• Product Category Interface - Drivers, Receivers, Transceivers
• Series SN65LBC180A
• Product RS-485 Transceivers
• Type Transceiver
• Packaging Tube Alternate Packaging
• Unit-Weight 0.004318 oz
• Mounting-Style SMD/SMT
• Package-Case SOIC-14
• Operating-Temperature -40°C ~ 85°C
• Mounting-Type Surface Mount
• Output-Type Differential
• Function Transceiver
• Voltage-Supply 4.75 V ~ 5.25 V
• Supplier-Device-Package 14-SOIC
• Protocol RS422, RS485
• Data-Rate 30Mbps
• Number-of-Drivers-Receivers 2016/1/1
• Duplex Full
• Receiver-Hysteresis 50mV
• Shutdown Shutdown
• Pd-Power-Dissipation 950 mW
• Maximum-Operating-Temperature + 85 C
• Minimum-Operating-Temperature - 40 C
• Operating-Supply-Voltage 5 V
• Output-Voltage 1.5 V
• Operating-Supply-Current 15 mA
• Input-Voltage 5 V
• Output-Current 10 uA
• Supply-Voltage-Max 5.25 V
• Supply-Voltage-Min 4.75 V
• Number-of-Drivers 1 Driver
• Number-of-Receivers 1 Receiver
• Propagation-Delay-Time 6 ns
