SN10502DGN

SN10502DGN Overview

Product belongs to the SN10502 series. This product is categorized as Operational Amplifiers Tube is the packaging method for this product Weight of 0.000861 oz SMD/SMT Mounting-Style HVSSOP-8 Surface Mount mounting type Output-Type: Rail-to-Rail Versatile Voltage Feedback applications for maximum usability Number of channels: 2 Channel Supplier device package: 8-MSOP-PowerPad 2 is 8. Voltage supply range: 2.7 V ~ 16 V, ±1.35 V ~ 8 V This product has a 14mA of 200μA. The 170MHz The 900 V/μs. Current-Output-Channel is 100mA Power-off control: 1710 mW Maximum operating temperature of + 85 C Minimum operating temperature: - 40 C 30 mA is 92 nA. Maximum supply voltage of 18 V Minimum supply voltage is 2.7 V Input bias current of 3 uA The 25 mV. The 62 dB. The CMRR-Common-Mode-Rejection-Ratio is 70 dB. The 13 nV/sqrt Hz of this product is 110 nV/sqrt Hz. 100 dB voltage gain

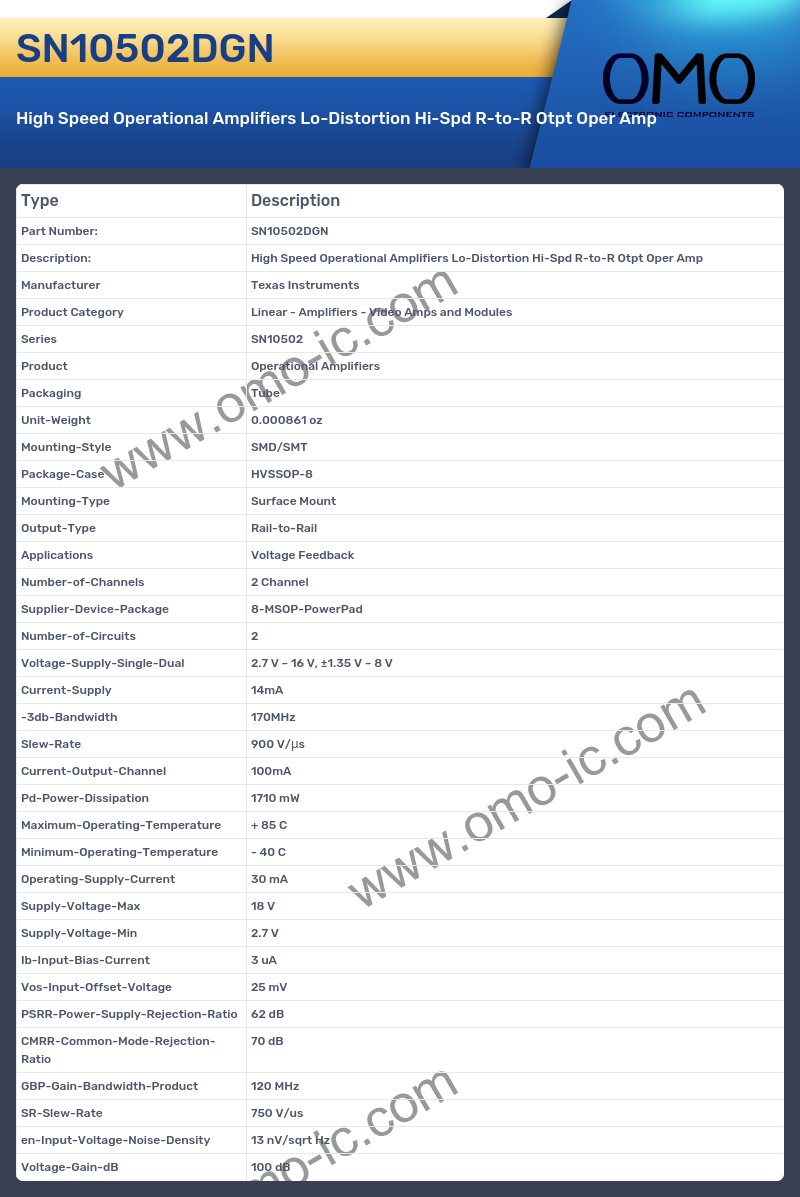

SN10502DGN Image

SN10502DGN Specifications

• Manufacturer Texas Instruments
• Product Category Linear - Amplifiers - Video Amps and Modules
• Series SN10502
• Product Operational Amplifiers
• Packaging Tube
• Unit-Weight 0.000861 oz
• Mounting-Style SMD/SMT
• Package-Case HVSSOP-8
• Mounting-Type Surface Mount
• Output-Type Rail-to-Rail
• Applications Voltage Feedback
• Number-of-Channels 2 Channel
• Supplier-Device-Package 8-MSOP-PowerPad
• Number-of-Circuits 2
• Voltage-Supply-Single-Dual 2.7 V ~ 16 V, ±1.35 V ~ 8 V
• Current-Supply 14mA
• -3db-Bandwidth 170MHz
• Slew-Rate 900 V/μs
• Current-Output-Channel 100mA
• Pd-Power-Dissipation 1710 mW
• Maximum-Operating-Temperature + 85 C
• Minimum-Operating-Temperature - 40 C
• Operating-Supply-Current 30 mA
• Supply-Voltage-Max 18 V
• Supply-Voltage-Min 2.7 V
• Ib-Input-Bias-Current 3 uA
• Vos-Input-Offset-Voltage 25 mV
• PSRR-Power-Supply-Rejection-Ratio 62 dB
• CMRR-Common-Mode-Rejection-Ratio 70 dB
• GBP-Gain-Bandwidth-Product 120 MHz
• SR-Slew-Rate 750 V/us
• en-Input-Voltage-Noise-Density 13 nV/sqrt Hz
• Voltage-Gain-dB 100 dB
