SMA6J170CA-TR

SMA6J170CA-TR Overview

Product belongs to the SMA6J, TRANSIL series. Type: Zener Digi-ReelR Alternate Packaging is the packaging method for this product Weight of 0.002540 oz SMD/SMT Mounting-Style This product's Termination-Style is ' SMD/SMT ' for easy integration into your design. Trade name: Transil. Wide - 55 C to + 175 C operating temperature range for diverse applications 4.6 mm length of the product The 2.95 mm is at most 7.6 mm. DO-214AC, SMA Operational temperature range: -55°C ~ 175°C (TJ) Surface Mount mounting type Versatile General Purpose applications for maximum usability Supplier device package: SMA (DO-214AC) 1 Bidirectional-Channels The Voltage-Reverse-Standoff-Typ is set at a maximum of 170V. The Voltage-Breakdown-Min is 189V. No Power-Line-Protection - Capacitance-Frequency Power-off control: 600 W Maximum operating temperature of + 175 C Minimum operating temperature: - 55 C Breakdown-Voltage: 189 V Clamping-Voltage: 292 V 60 A Peak Surge Current 170 V working voltage Polarity: Bidirectional

SMA6J170CA-TR Image

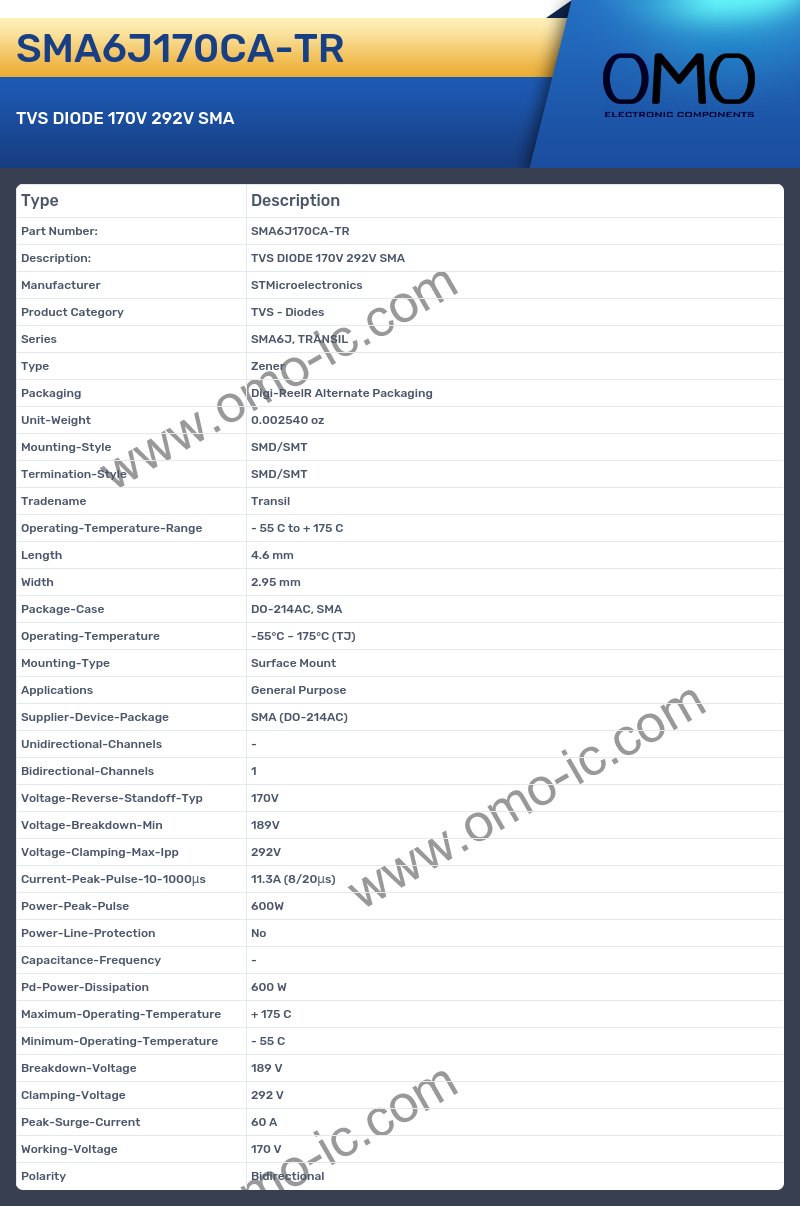

SMA6J170CA-TR Specifications

• Manufacturer STMicroelectronics
• Product Category TVS - Diodes
• Series SMA6J, TRANSIL
• Type Zener
• Packaging Digi-ReelR Alternate Packaging
• Unit-Weight 0.002540 oz
• Mounting-Style SMD/SMT
• Termination-Style SMD/SMT
• Tradename Transil
• Operating-Temperature-Range - 55 C to + 175 C
• Length 4.6 mm
• Width 2.95 mm
• Package-Case DO-214AC, SMA
• Operating-Temperature -55°C ~ 175°C (TJ)
• Mounting-Type Surface Mount
• Applications General Purpose
• Supplier-Device-Package SMA (DO-214AC)
• Unidirectional-Channels -
• Bidirectional-Channels 1
• Voltage-Reverse-Standoff-Typ 170V
• Voltage-Breakdown-Min 189V
• Voltage-Clamping-Max-Ipp 292V
• Current-Peak-Pulse-10-1000μs 11.3A (8/20μs)
• Power-Peak-Pulse 600W
• Power-Line-Protection No
• Capacitance-Frequency -
• Pd-Power-Dissipation 600 W
• Maximum-Operating-Temperature + 175 C
• Minimum-Operating-Temperature - 55 C
• Breakdown-Voltage 189 V
• Clamping-Voltage 292 V
• Peak-Surge-Current 60 A
• Working-Voltage 170 V
• Polarity Bidirectional
