SI8236BA-D-IM Overview

Product belongs to the Automotive, AEC-Q100 series. Tube Alternate Packaging is the packaging method for this product 14-VFLGA Capacitive Coupling is the technology used. Operational temperature range: -40°C ~ 125°C Surface Mount mounting type Number of channels: 2 Voltage Supply Range: 6.5 V ~ 24 V Supplier device package: 14-LGA (5x5) The product's 4A is 4A. This product is designed with 1000Vrms voltage isolation for maximum safety and reliability. This product has received CQC, CSA, UR, VDE approvals for safety and reliability. Minimum 20kV/μs of 10kV/μs Maximum Propagation Delay tpLH/tpHL: 60ns, 60ns The minimum pulse width distortion is 5.6ns.

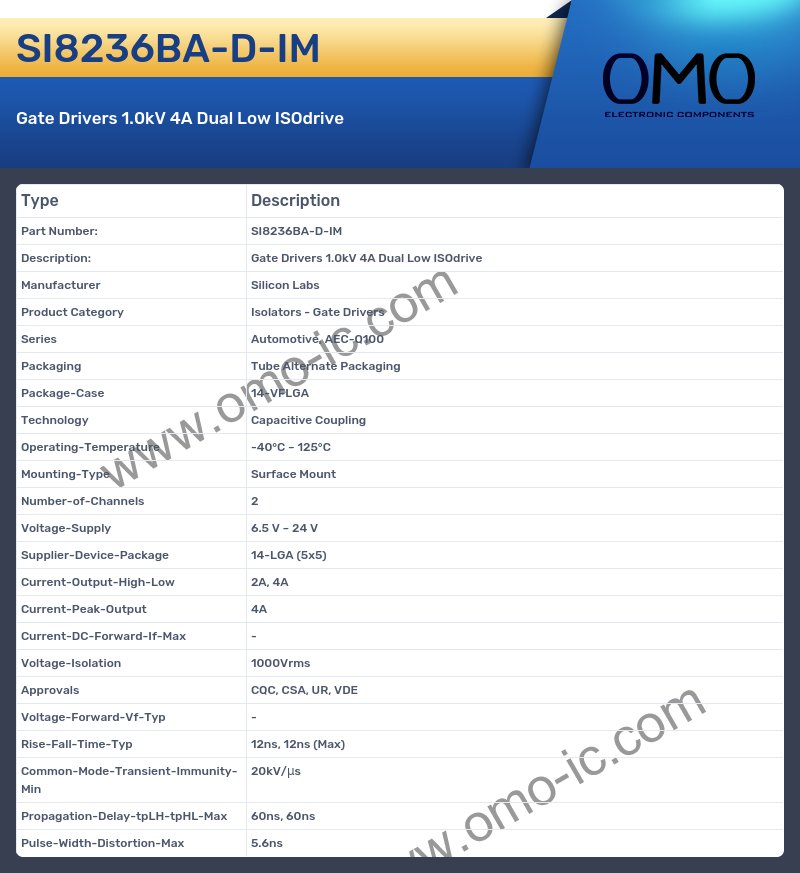

SI8236BA-D-IM Image

SI8236BA-D-IM Specifications

• Manufacturer Silicon Labs
• Product Category Isolators - Gate Drivers
• Series Automotive, AEC-Q100
• Packaging Tube Alternate Packaging
• Package-Case 14-VFLGA
• Technology Capacitive Coupling
• Operating-Temperature -40°C ~ 125°C
• Mounting-Type Surface Mount
• Number-of-Channels 2
• Voltage-Supply 6.5 V ~ 24 V
• Supplier-Device-Package 14-LGA (5x5)
• Current-Output-High-Low 2A, 4A
• Current-Peak-Output 4A
• Current-DC-Forward-If-Max -
• Voltage-Isolation 1000Vrms
• Approvals CQC, CSA, UR, VDE
• Voltage-Forward-Vf-Typ -
• Rise-Fall-Time-Typ 12ns, 12ns (Max)
• Common-Mode-Transient-Immunity-Min 20kV/μs
• Propagation-Delay-tpLH-tpHL-Max 60ns, 60ns
• Pulse-Width-Distortion-Max 5.6ns
