S9S12G48F0MLH Overview

Product belongs to the HCS12 series. Tray Alternate Packaging is the packaging method for this product Weight of 0.012224 oz SMD/SMT Mounting-Style QFP-64 Operational temperature range: -40°C ~ 125°C (TA) Supplier device package: 64-LQFP (10x10) This product has 54 I/O ports for versatile connectivity. Operating frequency: 25MHz Program memory type: FLASH CAN, IrDA, LIN, SCI, SPI interface Supply Voltage: 3.13 V ~ 5.5 V 16-Bit architecture Internal oscillator type Maximum operating temperature of + 125 C Minimum operating temperature: - 40 C This product operates at a 3.13 V to 5.5 V supply voltage for reliable performance. CAN SCI SPI interface type Processor Core: HCS12 This product is powered by the MC9S12G Processor-Series, providing high performance and efficiency. The 16 bit. Maximum clock frequency of 25 MHz Number of ADC Channels: 12 This product has 54 I/O connections. This product has a 4 kB data RAM size, providing ample storage for complex applications. The product has a 1.5 kB data-ROM size. This product features 1 Timer number of timers and counters. This product features a high-precision 10 bit, ensuring accurate data conversion. This product utilizes SRAM, providing fast and efficient data storage. The EEPROM Data-ROM-Type ensures non-volatile memory storage.

S9S12G48F0MLH Image

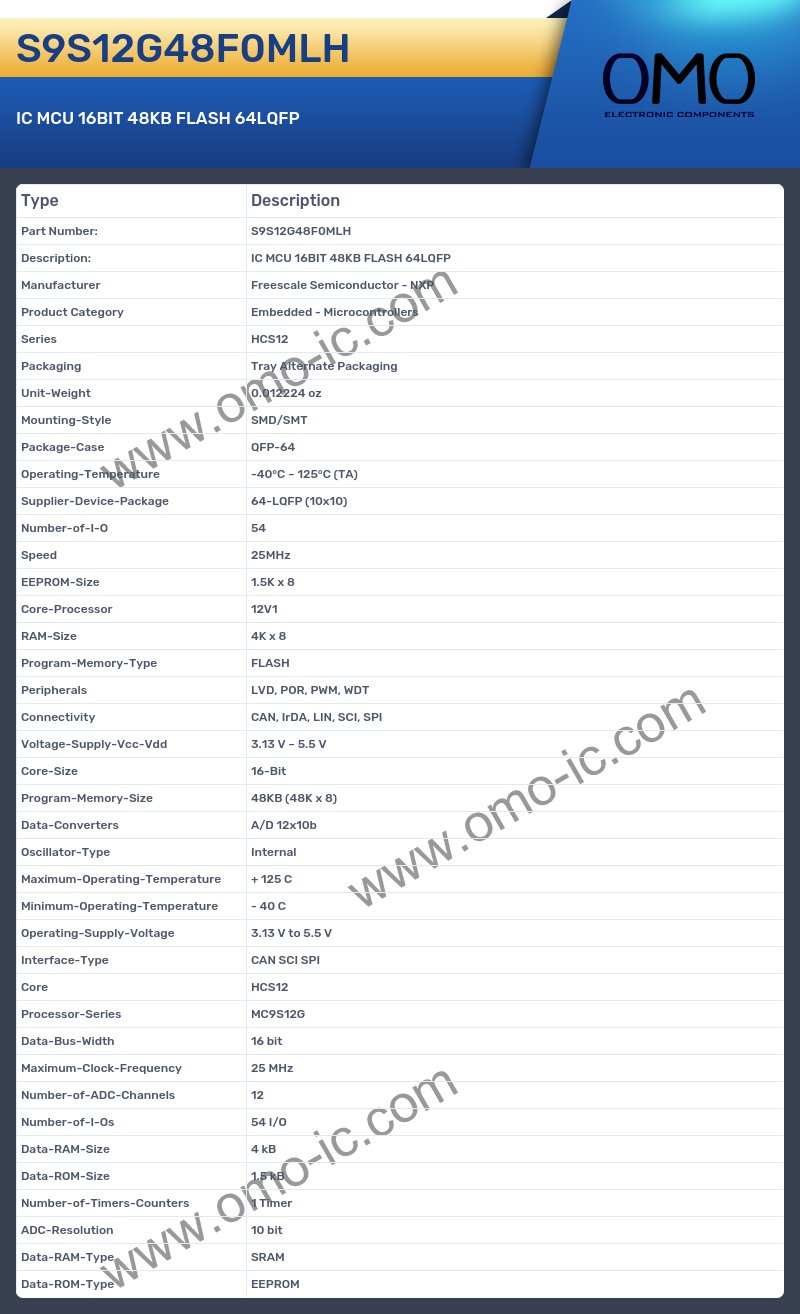

S9S12G48F0MLH Specifications

• Manufacturer Freescale Semiconductor - NXP
• Product Category Embedded - Microcontrollers
• Series HCS12
• Packaging Tray Alternate Packaging
• Unit-Weight 0.012224 oz
• Mounting-Style SMD/SMT
• Package-Case QFP-64
• Operating-Temperature -40°C ~ 125°C (TA)
• Supplier-Device-Package 64-LQFP (10x10)
• Number-of-I-O 54
• Speed 25MHz
• EEPROM-Size 1.5K x 8
• Core-Processor 12V1
• RAM-Size 4K x 8
• Program-Memory-Type FLASH
• Peripherals LVD, POR, PWM, WDT
• Connectivity CAN, IrDA, LIN, SCI, SPI
• Voltage-Supply-Vcc-Vdd 3.13 V ~ 5.5 V
• Core-Size 16-Bit
• Program-Memory-Size 48KB (48K x 8)
• Data-Converters A/D 12x10b
• Oscillator-Type Internal
• Maximum-Operating-Temperature + 125 C
• Minimum-Operating-Temperature - 40 C
• Operating-Supply-Voltage 3.13 V to 5.5 V
• Interface-Type CAN SCI SPI
• Core HCS12
• Processor-Series MC9S12G
• Data-Bus-Width 16 bit
• Maximum-Clock-Frequency 25 MHz
• Number-of-ADC-Channels 12
• Number-of-I-Os 54 I/O
• Data-RAM-Size 4 kB
• Data-ROM-Size 1.5 kB
• Number-of-Timers-Counters 1 Timer
• ADC-Resolution 10 bit
• Data-RAM-Type SRAM
• Data-ROM-Type EEPROM
