RC4136N

RC4136N Overview

Product belongs to the RC4136 series. This product is categorized as Operational Amplifiers Tube is the packaging method for this product Weight of 0.032734 oz Through Hole Mounting-Style Bipolar is the technology used. Number of channels: 4 Channel The amplifier is of General Purpose Amplifier type. Power-off control: No Shutdown Maximum operating temperature of + 70 C Minimum operating temperature: 0 C 11.3 mA is 92 nA. Maximum supply voltage of 30 V Minimum supply voltage is 10 V PDIP-14 Input bias current of 500 nA The 6 mV. The Negative Rail + 3 V to Positive Rail - 3 V. The CMRR-Common-Mode-Rejection-Ratio is 70 dB. The 8 nV/sqrt Hz of this product is 110 nV/sqrt Hz. Maximum dual supply voltage: +/- 15 V Minimum dual supply voltage of +/- 5 V

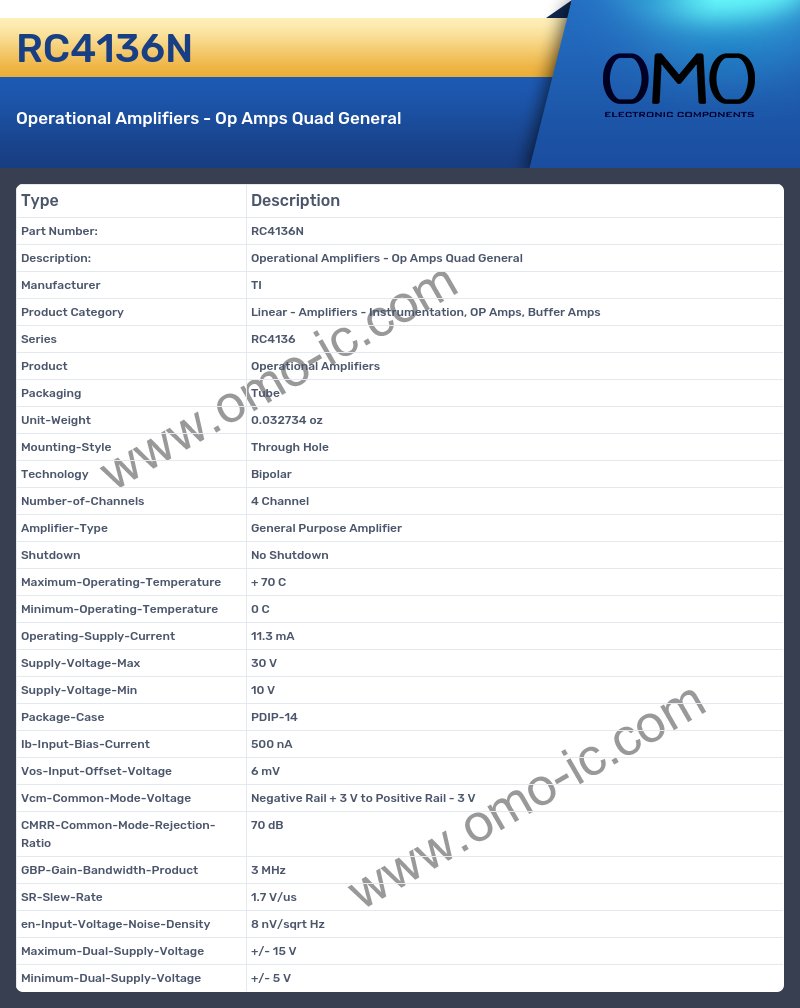

RC4136N Image

RC4136N Specifications

• Manufacturer TI
• Product Category Linear - Amplifiers - Instrumentation, OP Amps, Buffer Amps
• Series RC4136
• Product Operational Amplifiers
• Packaging Tube
• Unit-Weight 0.032734 oz
• Mounting-Style Through Hole
• Technology Bipolar
• Number-of-Channels 4 Channel
• Amplifier-Type General Purpose Amplifier
• Shutdown No Shutdown
• Maximum-Operating-Temperature + 70 C
• Minimum-Operating-Temperature 0 C
• Operating-Supply-Current 11.3 mA
• Supply-Voltage-Max 30 V
• Supply-Voltage-Min 10 V
• Package-Case PDIP-14
• Ib-Input-Bias-Current 500 nA
• Vos-Input-Offset-Voltage 6 mV
• Vcm-Common-Mode-Voltage Negative Rail + 3 V to Positive Rail - 3 V
• CMRR-Common-Mode-Rejection-Ratio 70 dB
• GBP-Gain-Bandwidth-Product 3 MHz
• SR-Slew-Rate 1.7 V/us
• en-Input-Voltage-Noise-Density 8 nV/sqrt Hz
• Maximum-Dual-Supply-Voltage +/- 15 V
• Minimum-Dual-Supply-Voltage +/- 5 V
