PIC18C242-E/SO

PIC18C242-E/SO Overview

Product belongs to the PICR 18C series. This product is categorized as MCU Tube is the packaging method for this product Weight of 0.078125 oz SMD/SMT Mounting-Style SOIC-28 Operational temperature range: -40°C ~ 125°C (TA) Supplier device package: 28-SOIC This product has 22 I/O ports for versatile connectivity. Operating frequency: 40MHz Program memory type: OTP I2C, SPI, UART/USART interface Supply Voltage: 4.2 V ~ 5.5 V 8-Bit architecture External oscillator type Maximum operating temperature of + 125 C Minimum operating temperature: - 40 C This product operates at a 2.5 V to 5.5 V supply voltage for reliable performance. I2C MSSP SPI USART interface type Processor Core: PIC This product is powered by the PIC18 Processor-Series, providing high performance and efficiency. The 8 bit. Maximum supply voltage of 5.5 V Minimum supply voltage is 4.2 V Maximum clock frequency of 40 MHz Number of ADC Channels: 5 This product has 23 I/O connections. This product has a 512 B data RAM size, providing ample storage for complex applications. The product has a 16 kB data-ROM size. This product features 1 Timer number of timers and counters. This product features a high-precision 10 bit, ensuring accurate data conversion. The EPROM Data-ROM-Type ensures non-volatile memory storage.

PIC18C242-E/SO Image

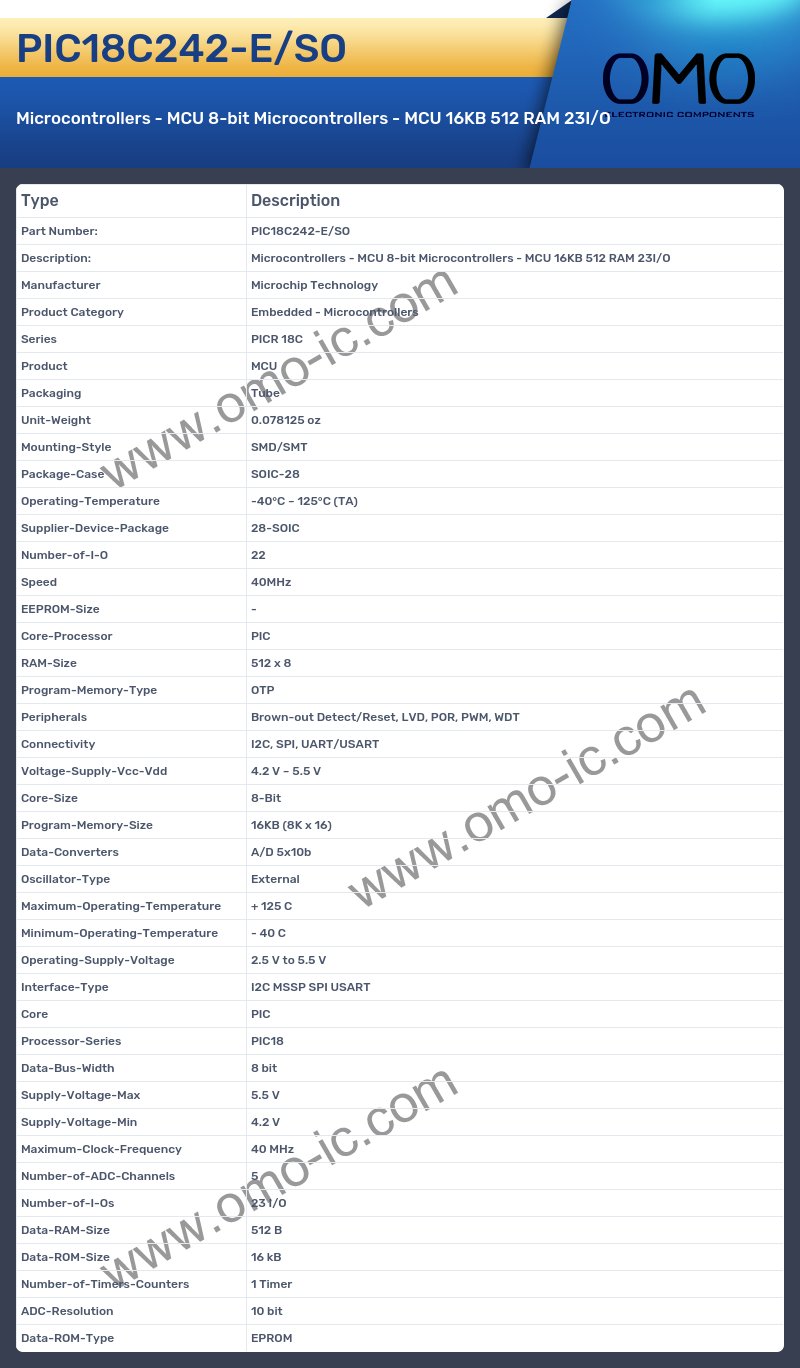

PIC18C242-E/SO Specifications

• Manufacturer Microchip Technology
• Product Category Embedded - Microcontrollers
• Series PICR 18C
• Product MCU
• Packaging Tube
• Unit-Weight 0.078125 oz
• Mounting-Style SMD/SMT
• Package-Case SOIC-28
• Operating-Temperature -40°C ~ 125°C (TA)
• Supplier-Device-Package 28-SOIC
• Number-of-I-O 22
• Speed 40MHz
• EEPROM-Size -
• Core-Processor PIC
• RAM-Size 512 x 8
• Program-Memory-Type OTP
• Peripherals Brown-out Detect/Reset, LVD, POR, PWM, WDT
• Connectivity I2C, SPI, UART/USART
• Voltage-Supply-Vcc-Vdd 4.2 V ~ 5.5 V
• Core-Size 8-Bit
• Program-Memory-Size 16KB (8K x 16)
• Data-Converters A/D 5x10b
• Oscillator-Type External
• Maximum-Operating-Temperature + 125 C
• Minimum-Operating-Temperature - 40 C
• Operating-Supply-Voltage 2.5 V to 5.5 V
• Interface-Type I2C MSSP SPI USART
• Core PIC
• Processor-Series PIC18
• Data-Bus-Width 8 bit
• Supply-Voltage-Max 5.5 V
• Supply-Voltage-Min 4.2 V
• Maximum-Clock-Frequency 40 MHz
• Number-of-ADC-Channels 5
• Number-of-I-Os 23 I/O
• Data-RAM-Size 512 B
• Data-ROM-Size 16 kB
• Number-of-Timers-Counters 1 Timer
• ADC-Resolution 10 bit
• Data-ROM-Type EPROM
