P6KE36A

P6KE36A Overview

Product belongs to the P6KE, TRANSIL series. Type: Zener Cut Tape (CT) Alternate Packaging is the packaging method for this product The P6KE36A_NL is listed as a Part-Aliase. Weight of 0.010582 oz Through Hole Mounting-Style This product's Termination-Style is ' Axial ' for easy integration into your design. Trade name: Transil. Wide - 65 C to + 175 C operating temperature range for diverse applications 7.62 mm length of the product The 3.56 (Max) mm is at most 7.6 mm. DO-204AC, DO-15, Axial Operational temperature range: -55°C ~ 175°C (TJ) Through Hole mounting type Versatile General Purpose applications for maximum usability Supplier device package: DO-15 The product's 3.53 mm for precision and accuracy. Bidirectional-Channels The Voltage-Reverse-Standoff-Typ is set at a maximum of 30.8V. The Voltage-Breakdown-Min is 34.2V. No Power-Line-Protection 950pF @ 1MHz Capacitance-Frequency Power-off control: 600 W Maximum operating temperature of + 175 C Minimum operating temperature: - 65 C Breakdown-Voltage: 34.2 V to 37.8 V Clamping-Voltage: 49.9 V 12 A Peak Surge Current 30.8 V working voltage Polarity: Unidirectional

P6KE36A Image

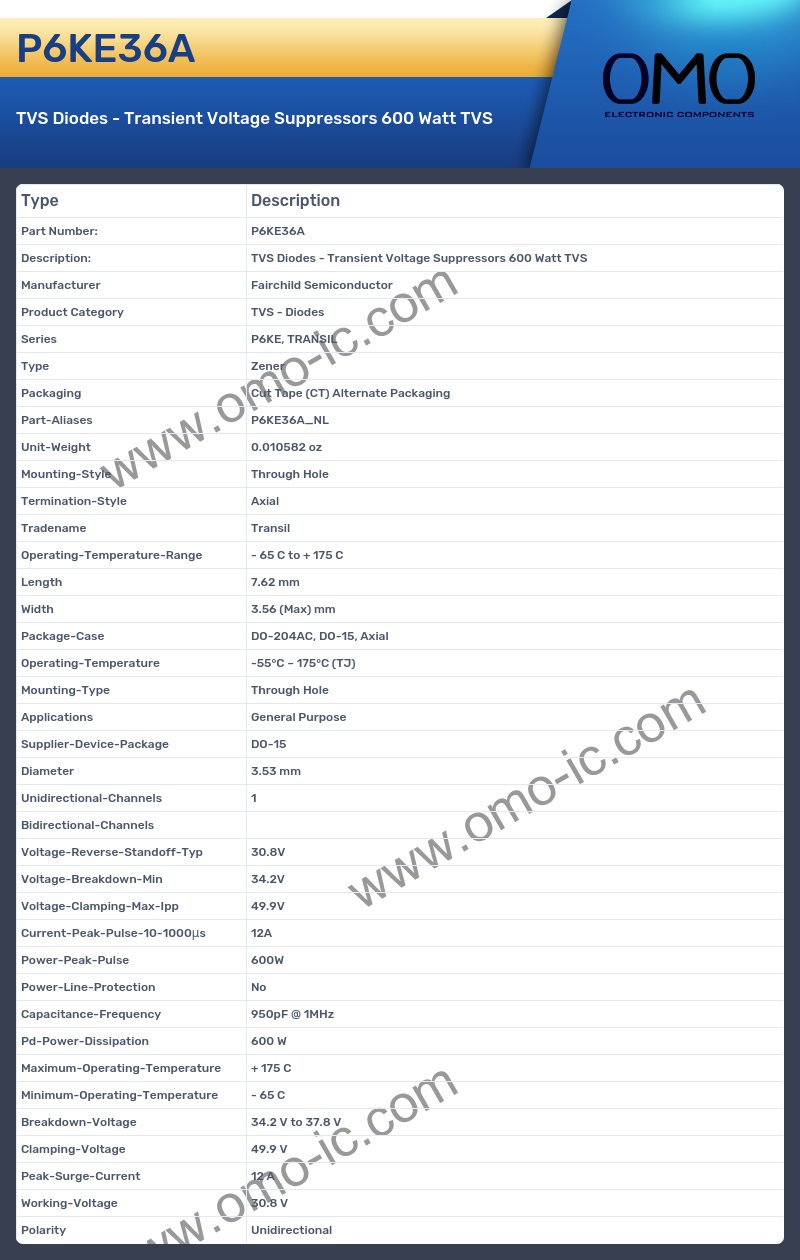

P6KE36A Specifications

• Manufacturer Fairchild Semiconductor
• Product Category TVS - Diodes
• Series P6KE, TRANSIL
• Type Zener
• Packaging Cut Tape (CT) Alternate Packaging
• Part-Aliases P6KE36A_NL
• Unit-Weight 0.010582 oz
• Mounting-Style Through Hole
• Termination-Style Axial
• Tradename Transil
• Operating-Temperature-Range - 65 C to + 175 C
• Length 7.62 mm
• Width 3.56 (Max) mm
• Package-Case DO-204AC, DO-15, Axial
• Operating-Temperature -55°C ~ 175°C (TJ)
• Mounting-Type Through Hole
• Applications General Purpose
• Supplier-Device-Package DO-15
• Diameter 3.53 mm
• Unidirectional-Channels 1
• Bidirectional-Channels
• Voltage-Reverse-Standoff-Typ 30.8V
• Voltage-Breakdown-Min 34.2V
• Voltage-Clamping-Max-Ipp 49.9V
• Current-Peak-Pulse-10-1000μs 12A
• Power-Peak-Pulse 600W
• Power-Line-Protection No
• Capacitance-Frequency 950pF @ 1MHz
• Pd-Power-Dissipation 600 W
• Maximum-Operating-Temperature + 175 C
• Minimum-Operating-Temperature - 65 C
• Breakdown-Voltage 34.2 V to 37.8 V
• Clamping-Voltage 49.9 V
• Peak-Surge-Current 12 A
• Working-Voltage 30.8 V
• Polarity Unidirectional
