NA555PE4

NA555PE4 Overview

Product belongs to the NA555 series. Type: 555 Type, Timer/Oscillator (Single) Tube Alternate Packaging is the packaging method for this product Weight of 0.015535 oz Through Hole Mounting-Style PDIP-8 This product's 100kHz range is 0Hz to 2.2GHz. Operational temperature range: -40°C ~ 105°C Through Hole mounting type Voltage Supply Range: 4.5 V ~ 16 V Supplier device package: 8-PDIP This product has a 10mA of 200μA. Maximum operating temperature of + 105 C Minimum operating temperature: - 40 C 3000 uA is 92 nA. Maximum supply voltage of 16 V Minimum supply voltage is 4.5 V High-Level-Output-Current of 200 mA - 200 mA low-level output current 1 Timer Internal Timers

NA555PE4 Image

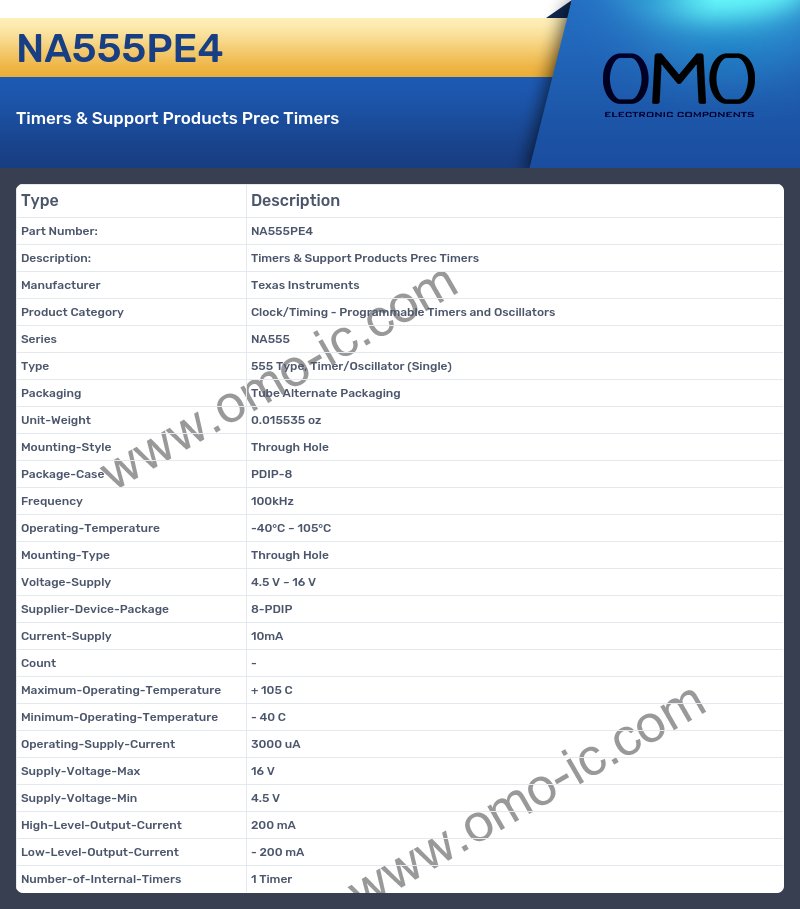

NA555PE4 Specifications

• Manufacturer Texas Instruments
• Product Category Clock/Timing - Programmable Timers and Oscillators
• Series NA555
• Type 555 Type, Timer/Oscillator (Single)
• Packaging Tube Alternate Packaging
• Unit-Weight 0.015535 oz
• Mounting-Style Through Hole
• Package-Case PDIP-8
• Frequency 100kHz
• Operating-Temperature -40°C ~ 105°C
• Mounting-Type Through Hole
• Voltage-Supply 4.5 V ~ 16 V
• Supplier-Device-Package 8-PDIP
• Current-Supply 10mA
• Count -
• Maximum-Operating-Temperature + 105 C
• Minimum-Operating-Temperature - 40 C
• Operating-Supply-Current 3000 uA
• Supply-Voltage-Max 16 V
• Supply-Voltage-Min 4.5 V
• High-Level-Output-Current 200 mA
• Low-Level-Output-Current - 200 mA
• Number-of-Internal-Timers 1 Timer
