MCP3302-BI/SL

MCP3302-BI/SL Overview

Product belongs to the MCP3302 series. This product is categorized as Analog to Digital Converters Tube Alternate Packaging is the packaging method for this product Weight of 0.011923 oz SMD/SMT Mounting-Style SOIC-14 The Differential, Single Ended for this product is CMOS/TTL. Operational temperature range: -40°C ~ 85°C Number of channels: 2 Channel Supplier device package: 14-SOIC This product's 100k. Data-Interface: SPI 13 bits The Voltage-Supply-Analog is 5V. The Voltage Supply Digital for this product is 5V. Configuration MUX-S/H-ADC The architecture of this product is SAR . External is the reference type. 1 units Maximum operating temperature of + 85 C Minimum operating temperature: - 40 C Serial SPI interface type Signal-to-Noise Ratio of 80.02 dB Number-of-Converters: 1 Converter 100 kS/s Sampling Rate Integral Nonlinearity: +/- 1 LSB Reference voltage is 0.4 V . Differential nonlinearity: +/- 1 LSB

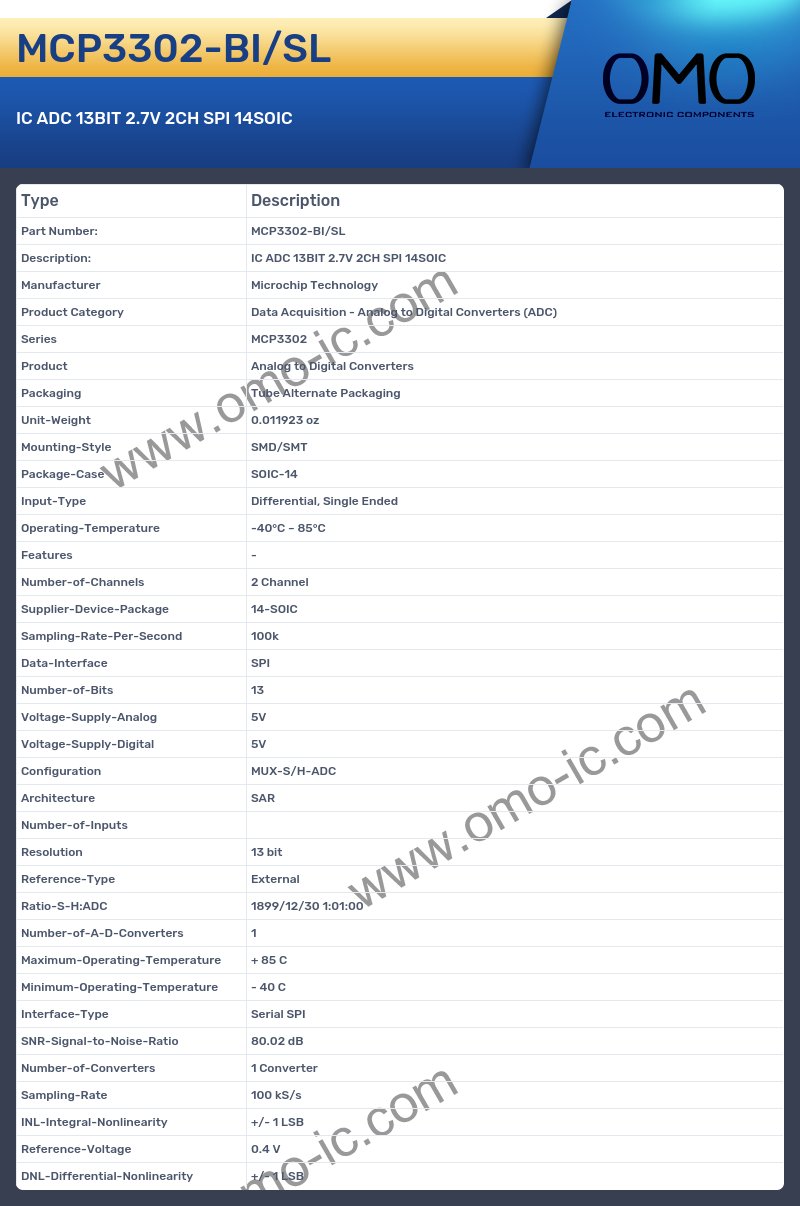

MCP3302-BI/SL Image

MCP3302-BI/SL Specifications

• Manufacturer Microchip Technology
• Product Category Data Acquisition - Analog to Digital Converters (ADC)
• Series MCP3302
• Product Analog to Digital Converters
• Packaging Tube Alternate Packaging
• Unit-Weight 0.011923 oz
• Mounting-Style SMD/SMT
• Package-Case SOIC-14
• Input-Type Differential, Single Ended
• Operating-Temperature -40°C ~ 85°C
• Features -
• Number-of-Channels 2 Channel
• Supplier-Device-Package 14-SOIC
• Sampling-Rate-Per-Second 100k
• Data-Interface SPI
• Number-of-Bits 13
• Voltage-Supply-Analog 5V
• Voltage-Supply-Digital 5V
• Configuration MUX-S/H-ADC
• Architecture SAR
• Number-of-Inputs
• Resolution 13 bit
• Reference-Type External
• Ratio-S-H:ADC 1899/12/30 1:01:00
• Number-of-A-D-Converters 1
• Maximum-Operating-Temperature + 85 C
• Minimum-Operating-Temperature - 40 C
• Interface-Type Serial SPI
• SNR-Signal-to-Noise-Ratio 80.02 dB
• Number-of-Converters 1 Converter
• Sampling-Rate 100 kS/s
• INL-Integral-Nonlinearity +/- 1 LSB
• Reference-Voltage 0.4 V
• DNL-Differential-Nonlinearity +/- 1 LSB
